Analog Devices ADRV9029

Preliminary Technical
Data
Rev. PrA | Page 15 of 82
penalizing the rest of the system operation. In order to do so, the system designer must study the worst case signal statistics. This
DPD contains only one adaptation engine, so the capture mechanism is shared between all active channels.

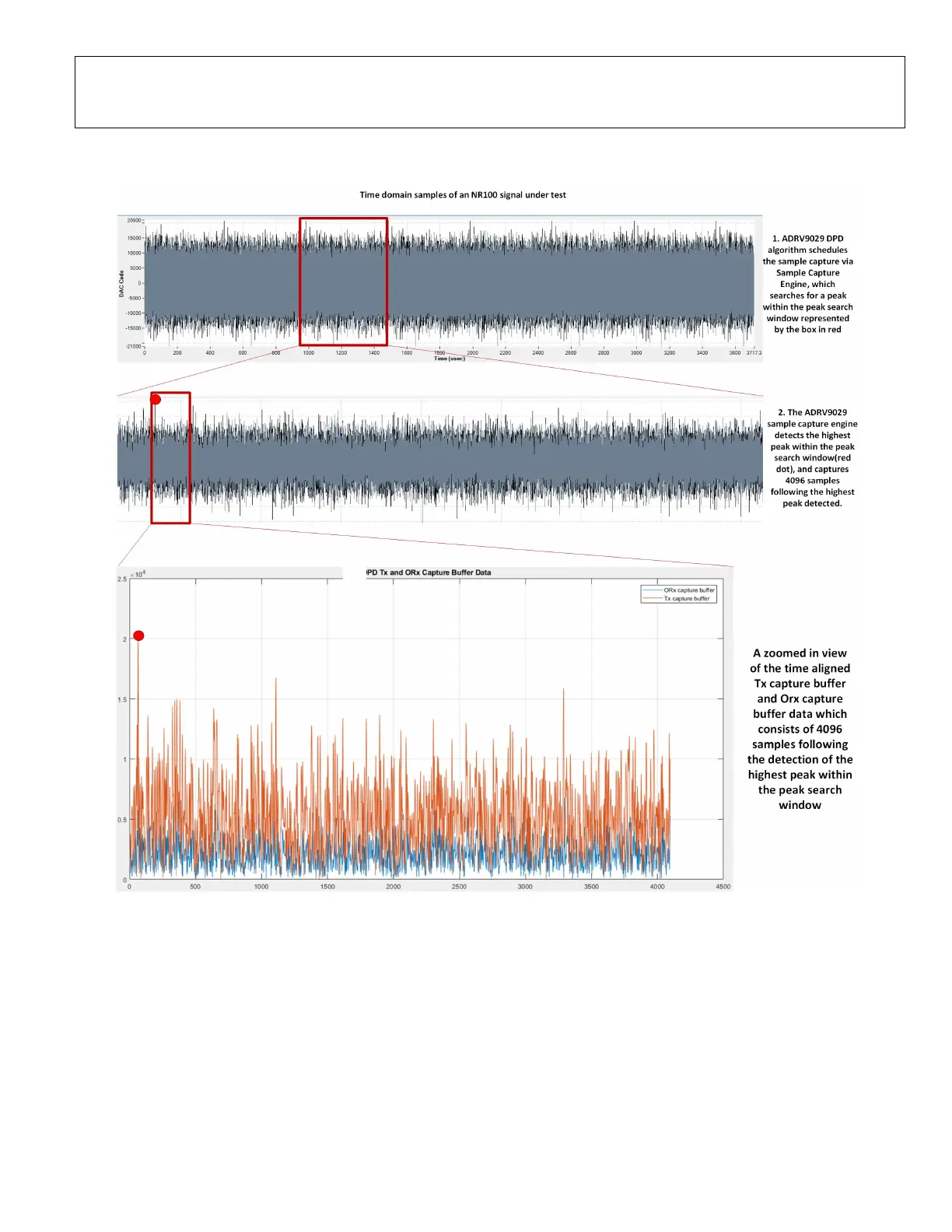

Figure 18. DPD Peak Detection Based Sample Capture Process for DPD Adaptation
