Analog Devices ADRV9029 User Manual

Preliminary Technical
Data
Rev. PrA | Page 32 of 82

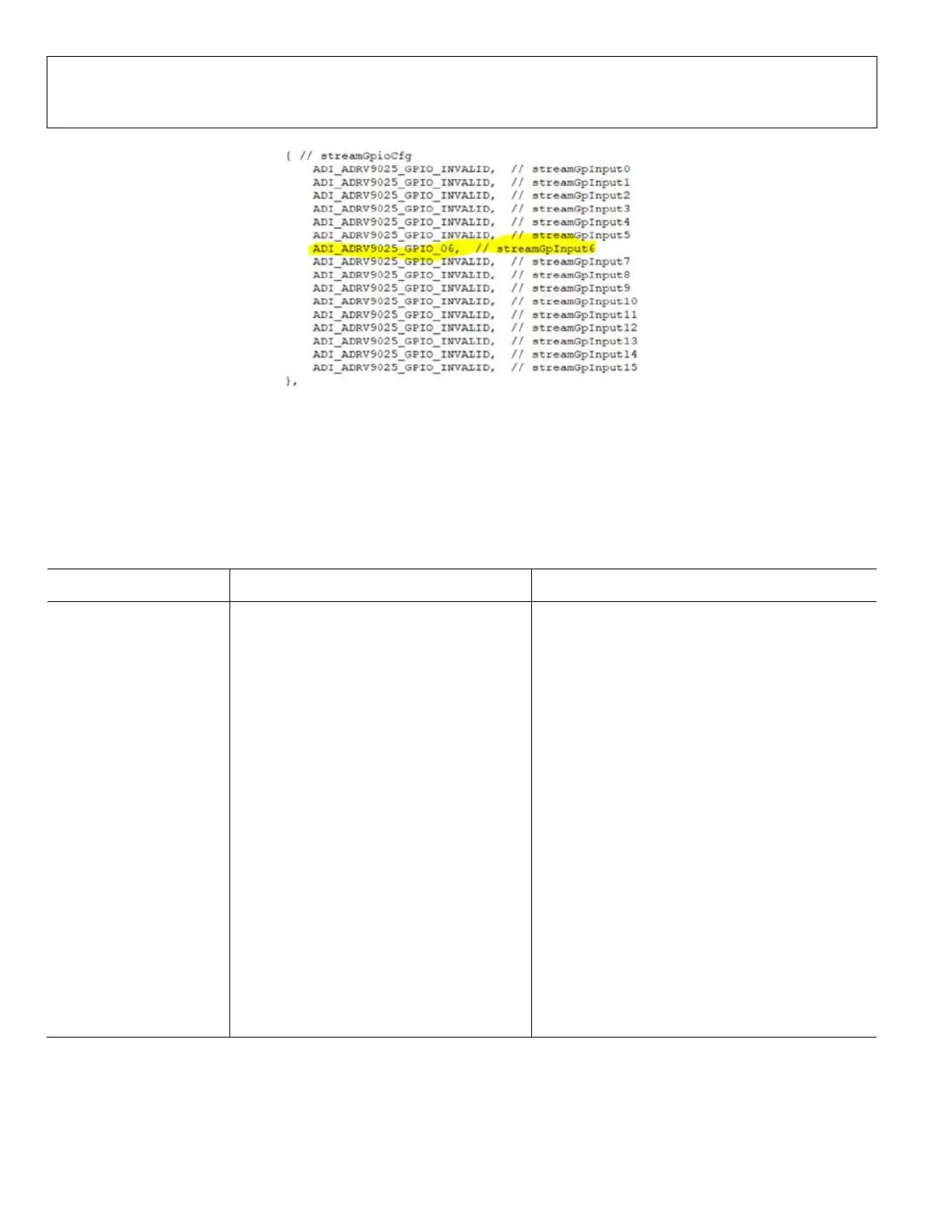

Figure 34. Post MCS Init Stream GPIO Configuration Structure
NOTE: Please ensure that the GPIO assigned for controlling DPD actuator bypass is driven to a low state during initialization to
prevent interference with initial calibrations.
DPD STATUS
The user can obtain the status of the DPD tracking calibration during runtime through the API command
adi_adrv9025_DpdStatusGet() which updates a data structure of type adi_adrv9025_DpdStatus_t supplied by the user. The
DPD status data structure returns the following information captured in Table 13.
Table 13. DPD Recovery Action Bit-mask Definition
Member Data Type Description
dpdErrorCode adi_adrv9025_DpdError_e
DPD error status. Please refer to the file
adi_adrv9025_dfe_types.h for a full list of DPD
error codes returned by the DPD status. If the
DPD is functioning correctly, this parameter
should return ADI_ADRV9025_DPD_NO_ERROR.
dpdPercentComplete UInt32 Percentage of DPD update completed.
dpdIterCount UInt32 No. of DPD updates scheduled
dpdUpdateCount UInt32 No. of successful DPD updates
dpdSyncStatus adi_adrv9025_TrackingCalSyncStatus_e
DPD and CLGC tracking calibrations are
synchronized through a semaphore mechanism.
This member returns SYNC_OK if both DPD and
CLGC are synchronized. If CLGC is not enabled,
then this field can be ignored.
dpdModelTable adi_adrv9025_DpdModelTableSel_e
Currently active DPD model(M-Table/C-Ta b le/U-
Table) described in
Table 2
dpdStatistics adi_adrv9025_DpdStatistics_t
Current values of DPD stability metrics described
in
Table 8
