Analog Devices ADRV9029 User Manual

Preliminary Technical
Data
Rev. PrA | Page 41 of 82

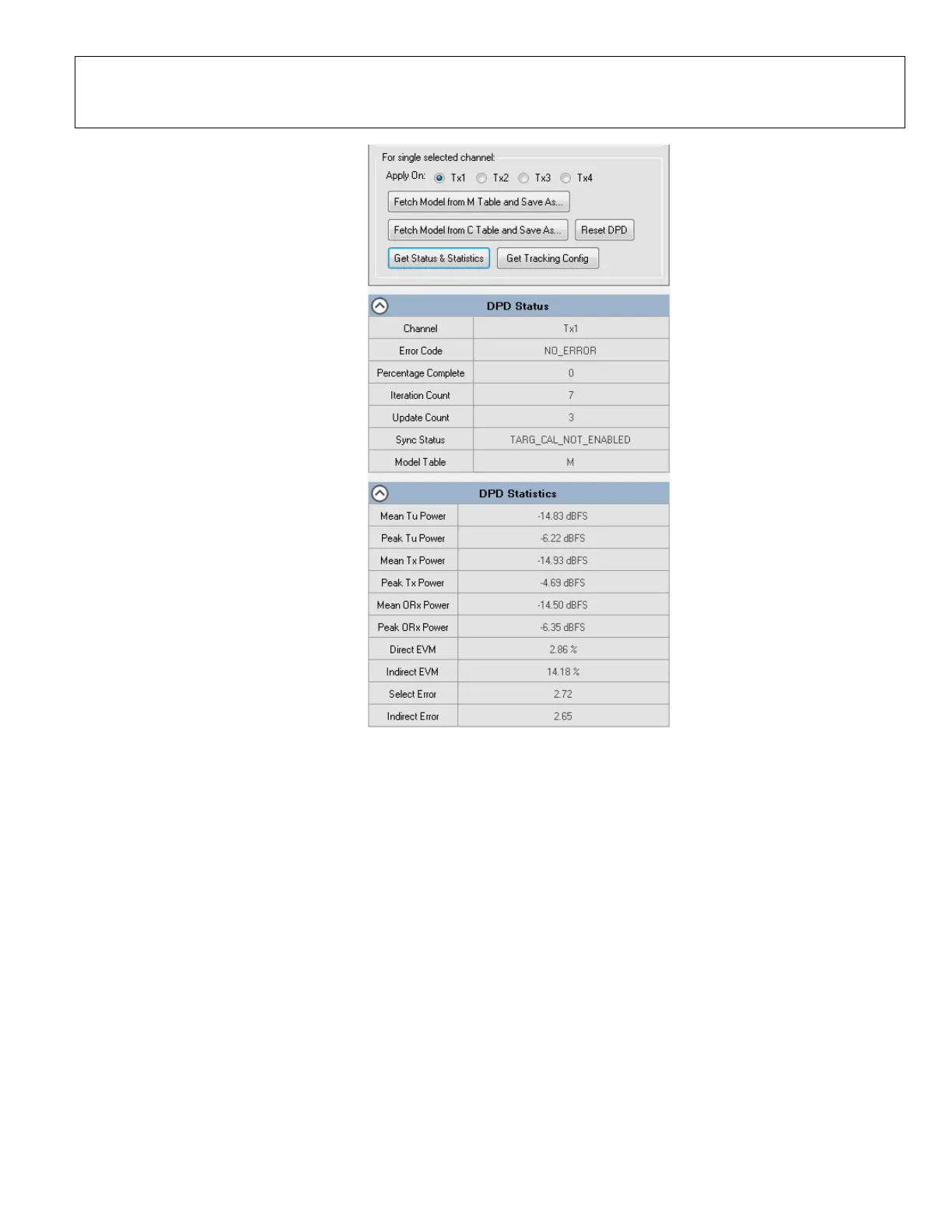

Figure 49. Get DPD Status and Statistics
The steps below outline the procedure to change the DPD model or apply a different tracking configuration parameter.
1. Disable DPD tracking by unchecking the Tx channel under consideration in Figure 48 and click ‘Enable DPD on selected
channels (only)’.
2. Use ‘Reset DPD’ to apply a Full Reset.
3. Load model file from PC (model files are provided by ADI). Make sure Real Coeff of the linear term (i=1, j=1, k=0) is set to 1.
4. Configure ‘DPD Tracking Config’ parameters.
5. Select desired Tx channel to apply settings on (Figure 48).
6. Apply DPD tracking configuration by clicking on ‘Apply Tracking Config’, as shown in Figure 48.
7. Apply DPD model on the M or C tables using ‘Apply Model on Device from M Table’ and ‘Apply Model on Device from C Table’
buttons. See Figure 48.
8. Click ‘Enable DPD on selected channels (only)’ to enable DPD Tracking.
