Analog Devices ADRV9029 User Manual

Preliminary Technical
Data
Rev. PrA | Page 66 of 82

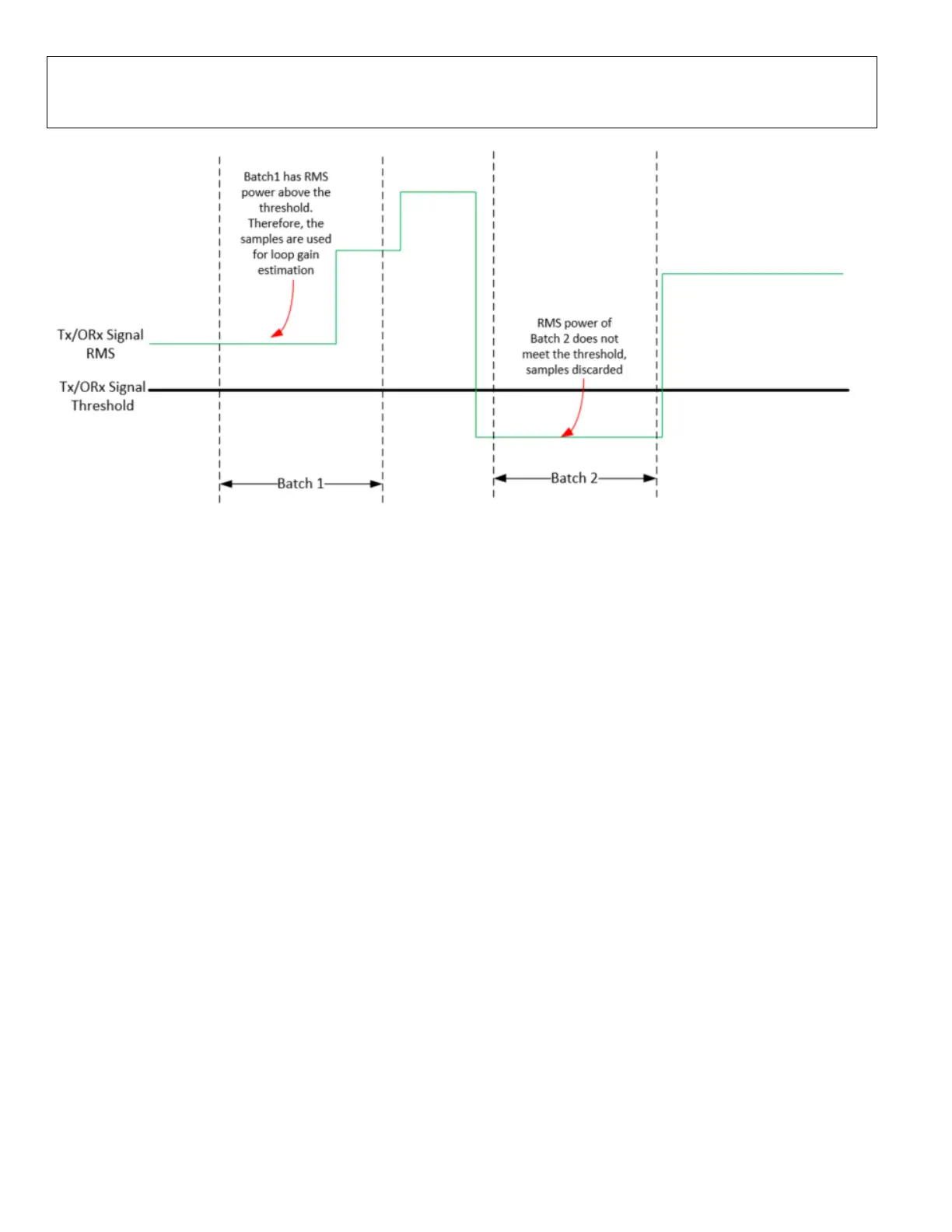

Figure 66. Tx and ORx qualifying threshold for CLGC measurement
The complete CLGC measurement cycle for a single update period is captured in Figure 5. The flowchart explains the
measurement and it’s interactions with the measurement parameters described in Table 4. The important thing to note is that
the CLGC only captures samples until the Tx/ORx threshold and the ORx SNR criteria is met. Once the threshold and SNR criteria
is met, the CLGC proceeds to measuring the loop gain, and doesn’t capture any further samples.
