3) Press Enter to access its submenu.
4) Specify Beeper Setup and press Enter to display its parameter screen:
5) Specify the desired Beeper Setup, then press Enter to save the setting and exit the
screen.
7.3 Alarm Reporting
The most common Anatel A643a fault condition is an Analyzer that measures a TOC value
greater than its specified TOC Alarm setting (see “Alarm Setup” on page 101). There are
several ways an alarm condition is reported:
• The associated Controller’s LCD display flashes.
• The Analyzer’s Channel LED flashes red.
• If enabled, the Controller beeps an audible alarm.
• If connected to a printer, a printout is generated documenting the fault. A High TOC
Alarm Warning is reported on a separate line and includes the limit that was exceeded:
High TOC Alarm: 560 ppb >[500 ppb]
• When connected, the signal at the Analyzer’s Digital Output #1 port is pulled low (see
“Digital Outputs” on page 142).
Enabled The Controller’s audible alarm is triggered by a TOC limit
excursion.
Disabled The Controller’s onboard alarm will not sound when any of its
connected Analyzers experiences a TOC limit excursion.

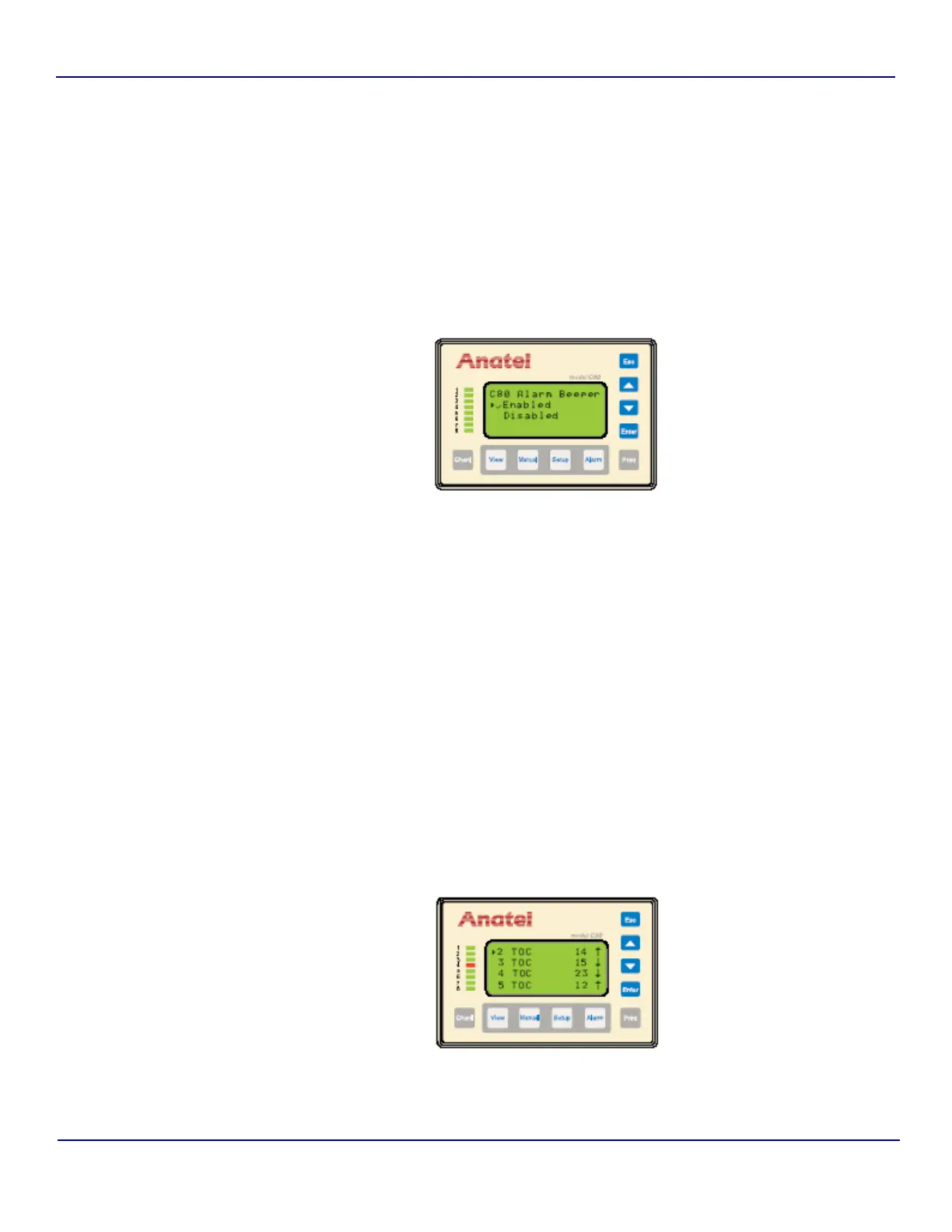

Fig 7-12 : C80 Alarm Beeper Screen
Fig 7-13 : Reported Sensor Alarm
