28 of 220 Instrument Installation - Anatel A643a
RPS - June 2007 - Edition 12
Operator Manual Anatel
The Anatel A643a–S Analyzer is secured using two 1/4" mounting brackets located on the rear
of the instrument in conjunction with two 1/4" tie-down tabs positioned along its bottom. The
mounting dimensions for the Analyzer are shown below.
Anatel A643a–S Analyzers combine the measurement cell, requisite electronics and power
supply into a single compact package that is designed to be splashproof and water-resistant.
All cases are constructed of lightweight aluminum.

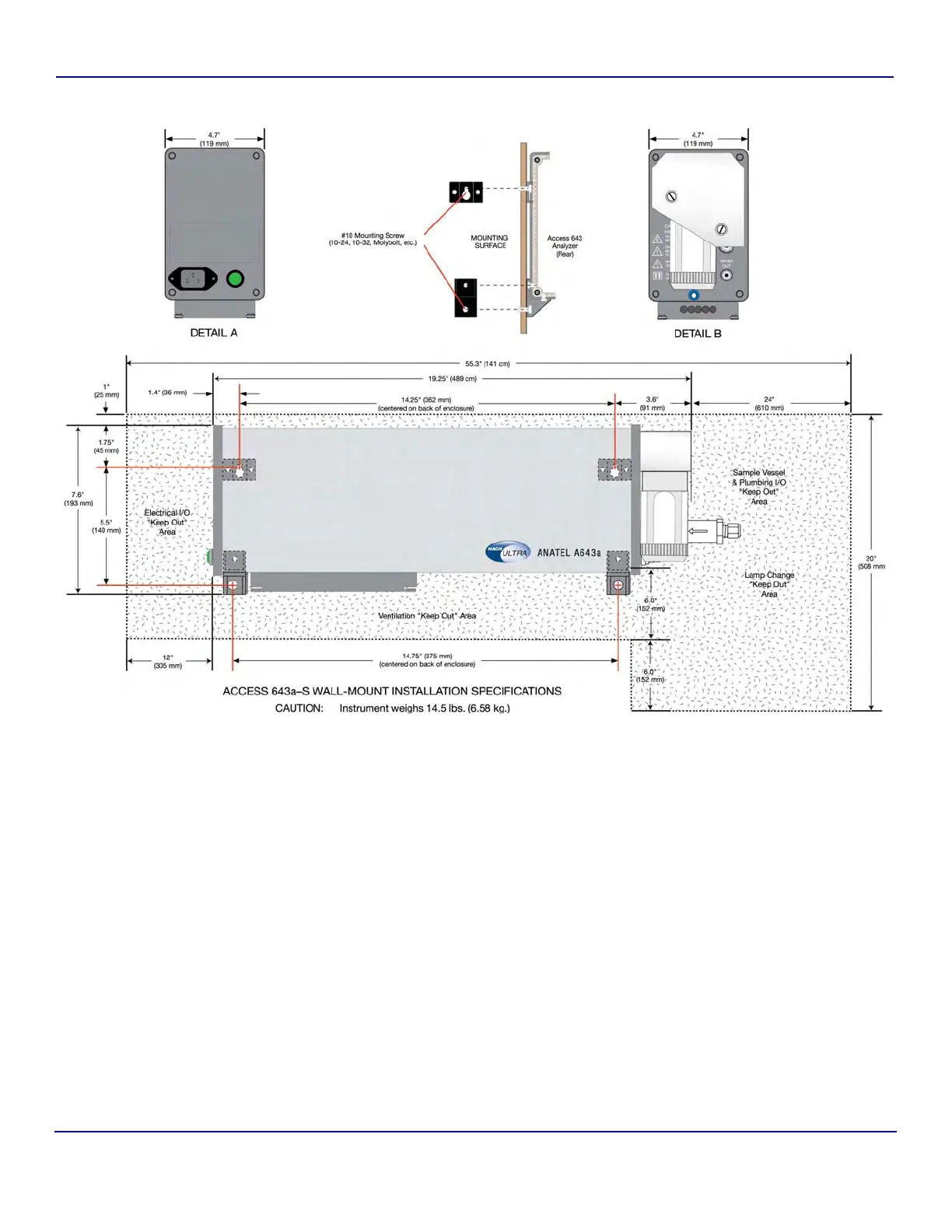

Fig 2-18 : Anatel A643a–S Mounting Template
