TX7+现场准备手册 TX7+ Site Preparation Manual
7
警告 WARNING
如果 TX7+机床从其他位置升降，底座有可能受损并且其校准状态有可能
受影响。
If the TX7+ is lifted from any other point, the base is likely to
be damaged and alignment possibly affected.
如果 TX7+机床未按规定方式升降，则 ANCA 公司不会为损伤或未校准
状态承担任何责任。
ANCA will not accept any responsibility for damage or
misalignment if the TX7+ is not lifted as described.

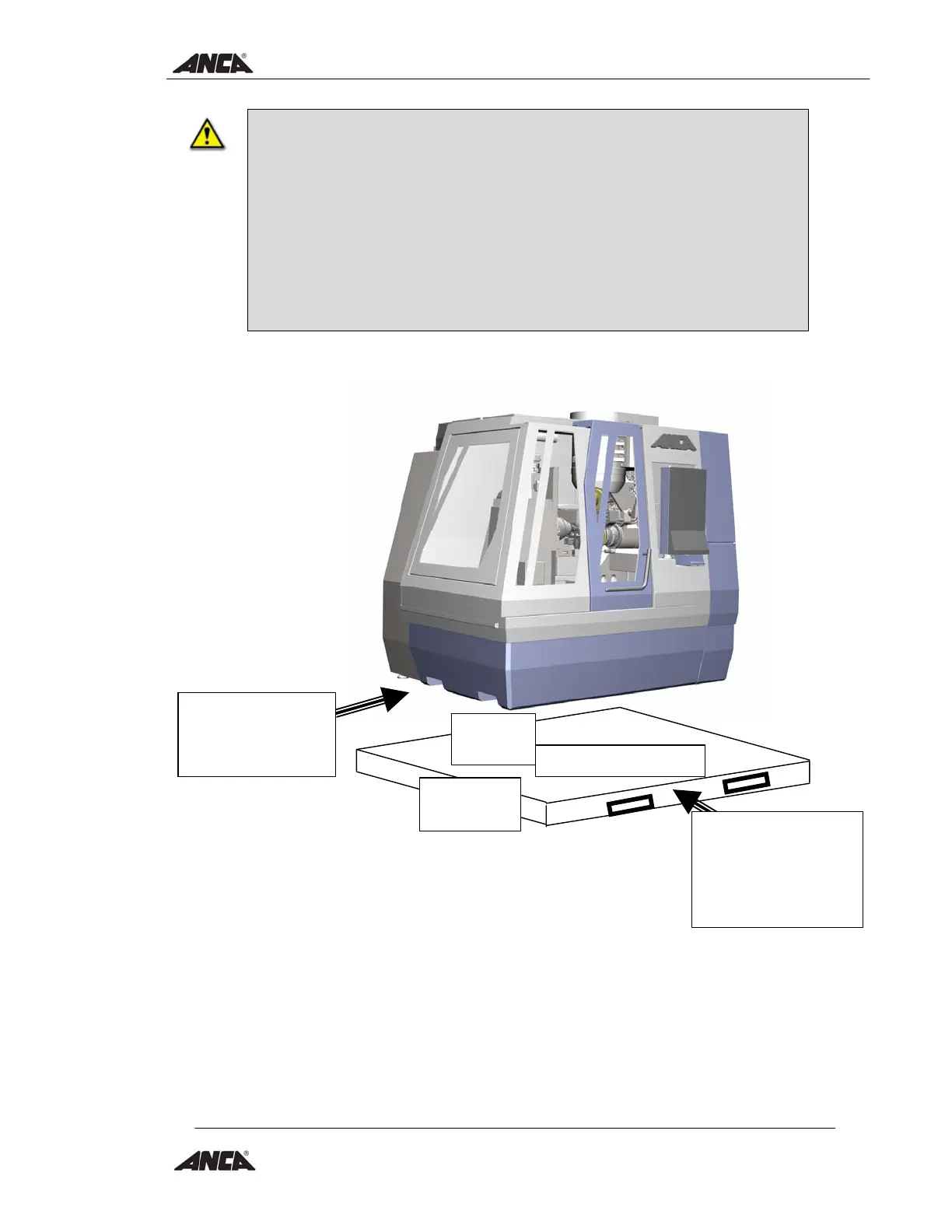

Figure 0. Machine Lifting
参考图 0，机床升降
5. 所需占地面积 Floor Space Required
当放置 TX7+时，必须预留足够空间，以便当操作门打开时，可安全从各个面进行
操作。
When locating the TX7+, sufficient room must be allowed to allow safe
access to all sides of the TX7+ when the access doors are open.
A 面机床 升降
SIDE “A”
M/C Lifting
Wooden Sled 木质托板
2300mm
2300 毫米
2900mm
2900 毫米
SIDE “B”
Wooden
Sled
Lifting
B 面木质托板升降
