3. Product Descriptions
3.1 Outline of FX2000

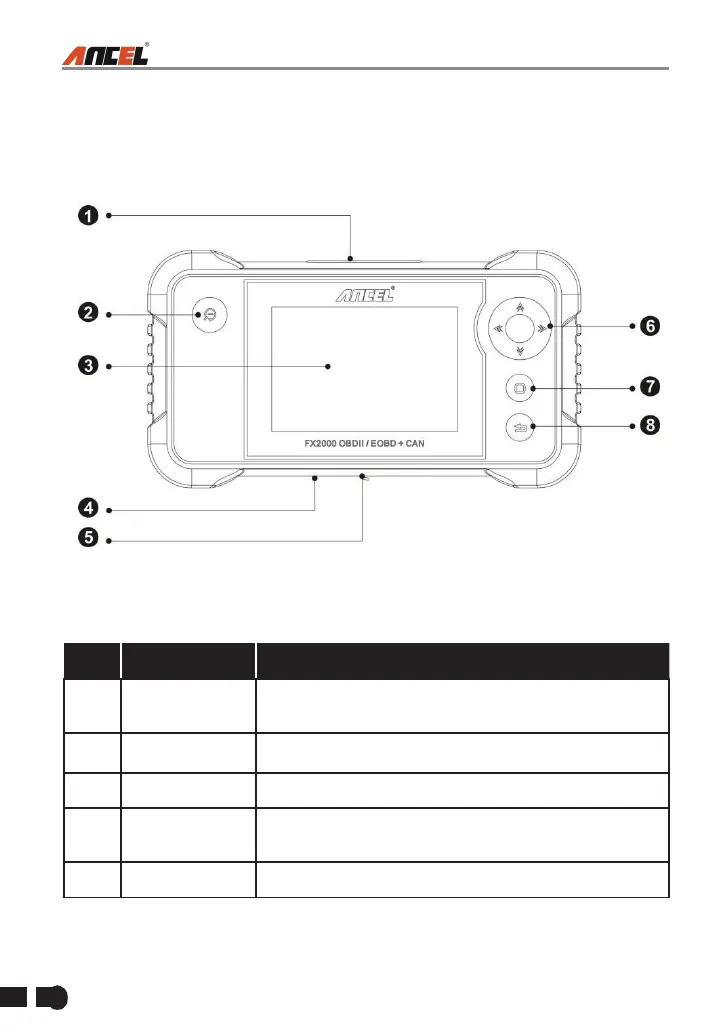

Figure 3-1 FX2000 Front View
No.
Name
Descriptions
1
OBD-16
connector
To connect to vehicle's DLC (Data Link Connector)
via diagnostic cable.
2
DTC button
To retrieve the DTCs in the database.
3
LCD
Indicates test results.
4
Memory card
slot
Insert the memory card into it to read or write the
data/file stored in memory card.
5
USB port
To connect on PC to upload data or print test results.
