Ancona WRC630 - Venting the Range Hood; Mount Range Hood onto Wall; Install Chimney

— 13 —
Installation
STEP 10
Mount Range Hood onto Wall
• Hang the range hood on the hooks of the lower
mounting bracket. (See Figure # 3)
• Screw the range hood to the wall.
CAUTION - Make sure the range hood is secure
before releasing!
STEP 9
Venting
• Fixthedamperaponthetopventofhood.
• If ventilation system is equipped with an external
air duct with a different diameter, apply a reduction
tting. However, for maximum performance and
safety, a 6 in. round ducting is recommended.
STEP 11
Install Chimney
• Place chimney on top of the main housing.
• Remove the protective coating from the upper chimney. Carefully slide the upper chimney down into the lower chimney.
• Use 2 screws to x the two chimneys together with the lower chimney bracket, make sure upper chimney is moving
freely. (See Figure # 4)
• Screw the upper chimney to the upper mounting bracket. (See Figure # 5)

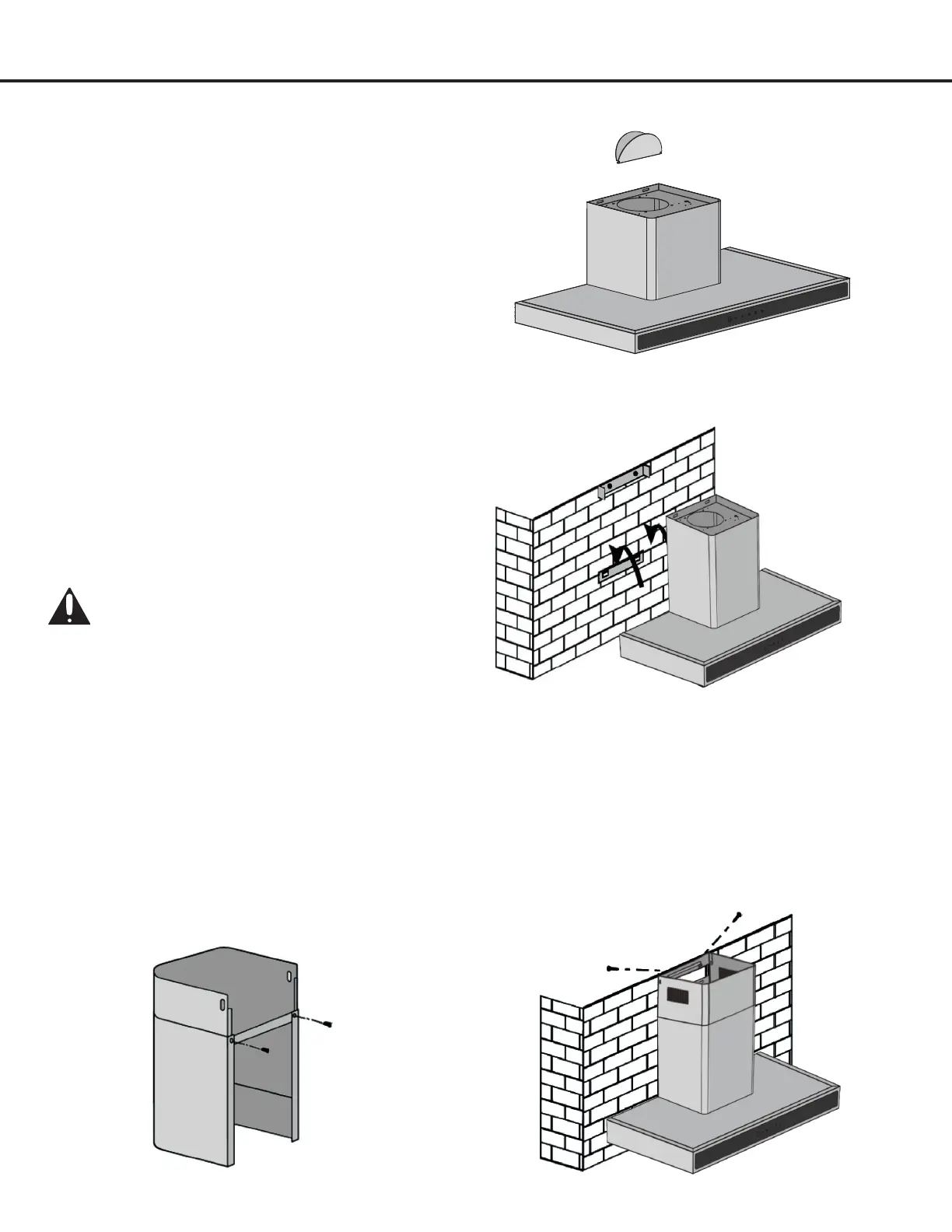

Fig #2
Fig #3
Fig #4
Fig #5
