Ancona WRC630 - Range Hood Assembly

— 18 —

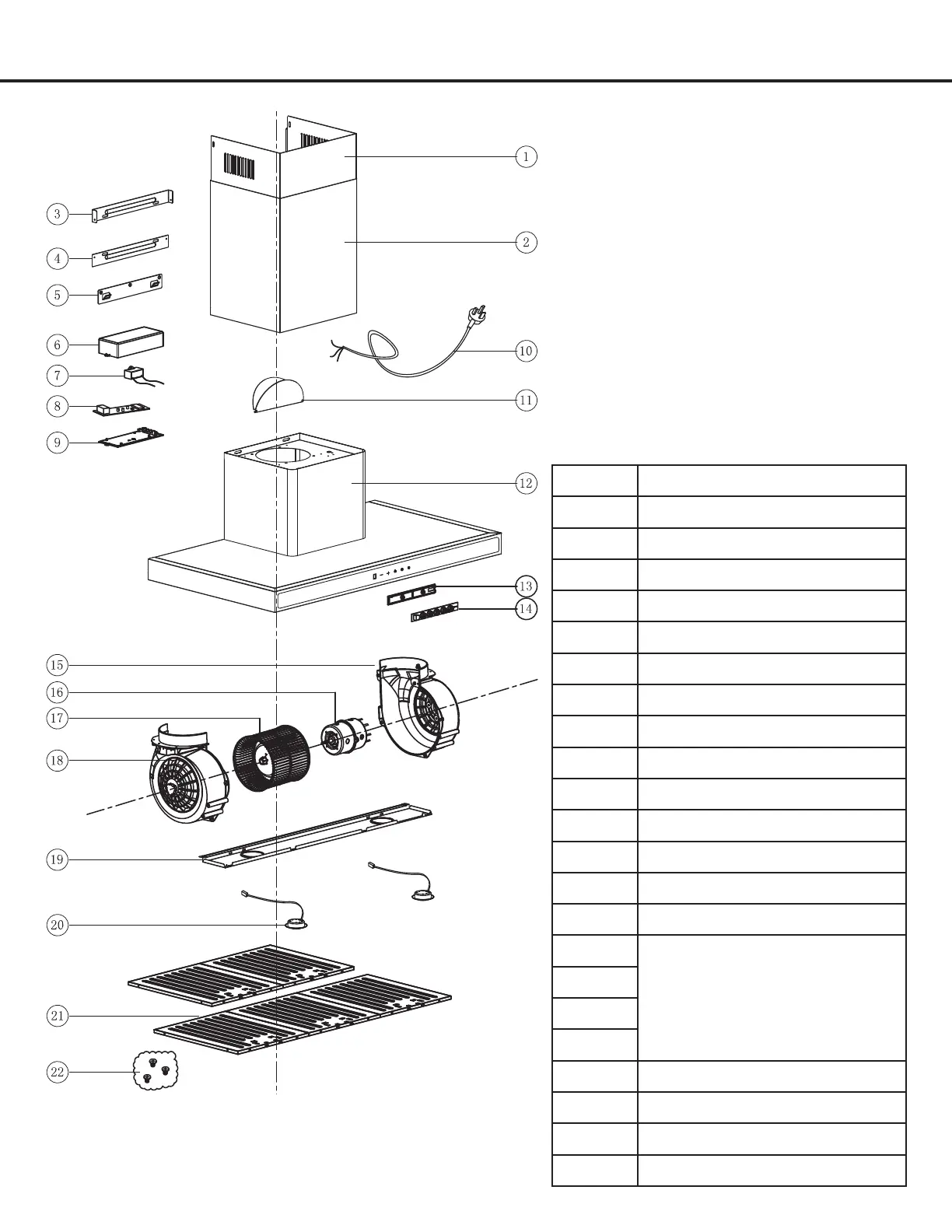

Range Hood Assembly
Number Part
1 Upper chimney
2 Lower chimney
3 Upper hood-mounting bracket
4 Lower hood-mounting bracket
5 Hood mounting bracket
6 Cover of electronic box
7 Capacitor
8 PCB
9 Base of electronic box
10 Power cord
11 Damper Flap
12 Housing assembly
13 Cover of control box
14 Control board
15
Blower assembly (includes
motor)
16
17
18
19 Light Panel
20 LED puck lights
21 Bafelter(2pcs)
22 Screw bag
Range Hood Assembly
Number Part
1 Upper chimney
2 Lowe chimney
3 Upper hood-mounting bracket
4 Lower hood-mounting bracket
5 Hood mounting bracket
6 Cover of electronic box
7 Capacitor
8 PCB
9 Base of electronic box
10 Power cord
11 Damper Flap
12 Housing assembly
13 Cover of control box
14 Control board
15
16
17
18
19 Light Panel
20 LED puck lights
21 Baffle filter (2 pcs)
22 Screw bag
Blower assembly (includes motor)
