Anden A210V1 User Manual

+ - A B ODT
SensorRemote
Gh Rf Cf Gs YW
HVAC EQUIP.
MODEL A77
CONTROL
DH
DH
R/+
C/-
B
A
90-2490
WIRING AND SET-UP
MODEL A77 CONTROL
The Model A77 will measure the relative humidity and turn the dehumidifier on and off to control the humidity level to the desired setting� The
humidity setting can be adjusted from the control, while the display allows easy access and monitoring of the humidity level in the space� It is
recommended that the Model A77 be mounted at/near canopy height� Shield the Model A77 from direct exposure to HPS or LPS lighting�
NOTE: Use 18-22 AWG wire for control wiring�
Humidity can be controlled using the internal dehumidifier control, a Model A77 control, or a different external control like a thermostat�
Installing an external control eliminates the need to run the dehumidifier blower for sampling, as the control is constantly measuring the humidity
close to the canopy� When the humidity level rises above the setting, the dehumidifier is turned on�

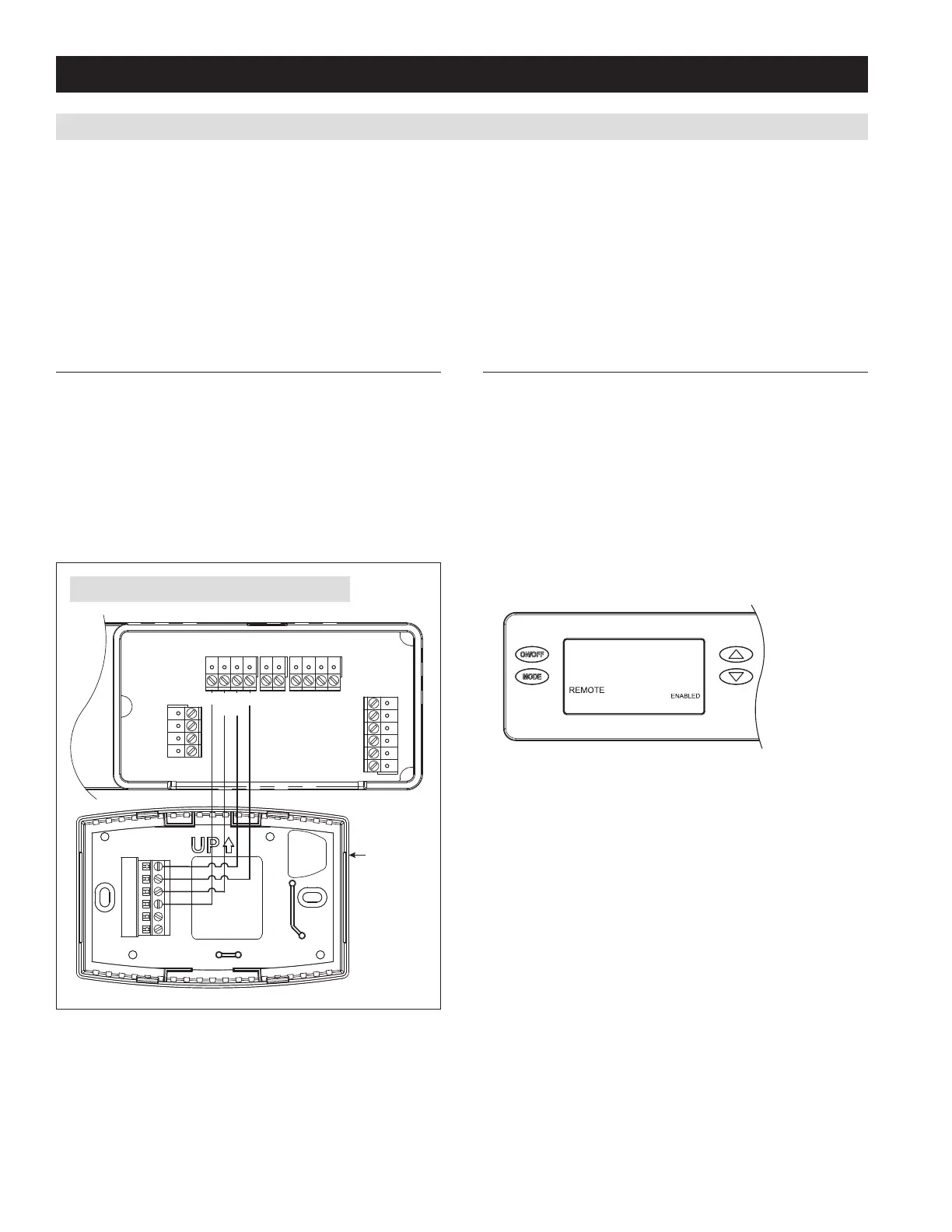

FIGURE 10 – MODEL A77 REMOTE CONTROL WIRING
TO INSTALL AND USE THE MODEL A77 CONTROL,
COMPLETE ALL STEPS:
1. Unplug the dehumidifier or turn off power to the circuit at the
breaker or fuse�
2. Run thermostat cable (use 18-22 AWG wire) from the Model A77 to
the control of the dehumidifier�
3. Trim about 1/4" of insulation from the end of the wires on each
end� Insert the wire into the terminals as shown in FIGURE 10�
4. Restore dehumidifier power�
TO SET THE DEHUMIDIFIER TO USE THE MODEL A77 CONTROL,
COMPLETE ALL STEPS:
1. With power to the dehumidifier, use the ON/OFF button to set the
dehumidifier to the OFF position�
NOTE: If the display backlight is not on, the first button press (any
button) will only turn the backlight on� Press the button a second
time to achieve the desired function�
2. Hold the MODE button on the on-board control for 3 seconds to
enter the Installer Set-up Menu�
3. The display should now read REMOTE on the left and DISABLED
on the right� Use the UP or DOWN arrow buttons to set this to
ENABLED�
90-1854
4. Once the display reads REMOTE ENABLED, press the MODE button
to cycle through the other settings until the display blinks DONE
for 3 seconds�
5. Use the ON/OFF button to turn the dehumidifier ON� The display
on your unit should read REMOTE�
6. Locate the Model A77 that you just set up� On the Model A77, press
the ON button and use the arrow buttons to set your preferred
%RH setpoint� When setting up in REMOTE mode for the first
time, your dehumidifier will wait 3 minutes before starting to
dehumidify, regardless of ambient conditions�
