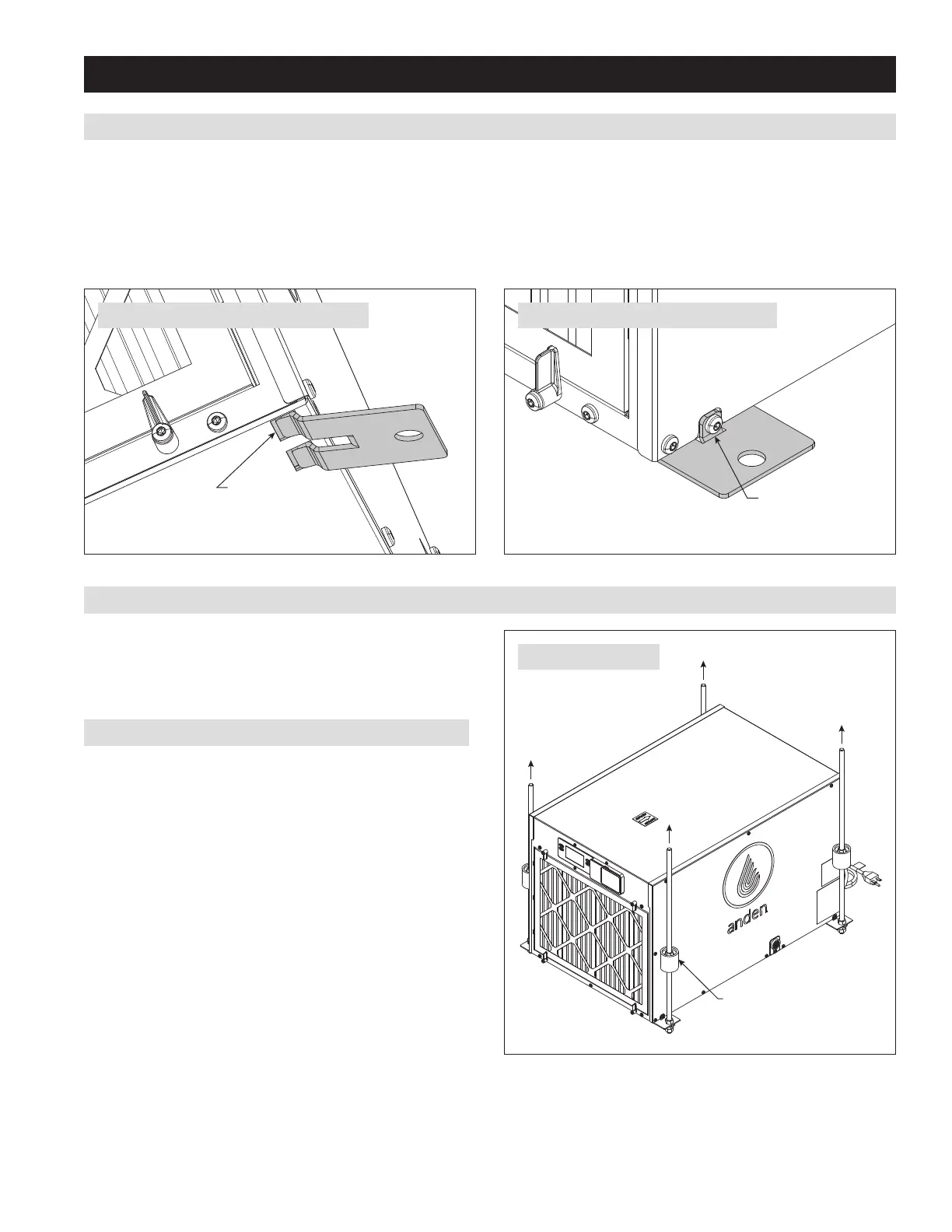

SUSPENDING THE DEHUMIDIFIER
INSTALL BRACKETS FOR SUSPENDING UNIT
The brackets are designed to accommodate up to 1/2" threaded rod�
1. Insert bracket into slots on the bottom of the base� See FIGURE 4�
2. Rotate the bracket up toward the dehumidifier� With a 5/16" hex socket (not provided), secure the bracket to the side of the dehumidifier using
#10 sheet metal screws (provided)� See FIGURE 5�
3. Repeat for remaining three brackets�
HANGING THE DEHUMIDIFIER
Use the threaded rod to suspend the unit from appropriate ceiling
structure� The unit weight is 118 lbs� Install vibration isolators if located in
an area where noise could be a concern� Level unit right to left and front
to back so that unit drains properly�
DUCTING
Use duct kit part number 5790 for installing ductwork to the
dehumidifier� Reference the instructions provided with duct kit 5790 for
installation details�
INSERT BRACKET INTO
OPENINGS ON BOTTOM
OF UNIT – 4 PLACES
ROTATE BRACKET INTO
PLACE AND SECURE WITH
SCREWS PROVIDED
4X VIBRATION ISOLATOR
(OPTIONAL)
90-2397 90-2398
90-2399
FIGURE 4 – INSTALL MOUNTING BRACKET IN BASE FIGURE 5 – SECURE BRACKET TO DEHUMIDIFIER
FIGURE 6 – SUSPENSION
English 5
