7
THINGS YOU NEED TO KNOW
WARNINGS
· This appliance must be installed by a qualified
electrician/competent person. Safety may be
impaired if installation is not carried out in
accordance with these instructions.
· This appliance must be earthed.
· Do not remove the screws from the earth tab
extending from the oven mains terminal block
(Fig. 8).
· Before connecting the appliance make sure that
the voltage of your electricity supply is the same
as that indicated on the rating plate. This is
situated on the lower front frame of the appliance
and can be seen upon opening the cavity door.
Alternatively the rating plate may also be found
on the back or top of some models (where
applicable).
· Do not alter the electrical circuitry of this
appliance.
THINGS TO NOTE
· This appliance is designed to be fitted in cabinets
of the recommended dimensions as shown (Fig.3
and 4) without any modification to the cabinet.
· If your cabinet interior dimension is between 565-
570mm the oven may still be fitted. However, a
minor modification to the cabinet will be required
to reduce the aperture size down to 560-565mm.
To allow the product to be securely screwed into
the cabinet.
· The dimensions given provide adequate air
circulation around the unit within the cabinet,
ensuring compliance with BS-EN60 335.
· Enquiries regarding the installation of the cooker
point, if required, should be made to your
Regional Electricity Company to ensure
compliance with their regulations.
· The appliance point should be within 2m of the
appliance to make it accessible to switch off the
appliance in case of an emergency.
· To protect the hands, wear gloves when lifting
the oven into its housing.
NOTE: HOUSE CIRCUIT
Earth leakage and continuity tests must be carried
out before the appliance is connected to the mains
supply and re-checked after fitting.
GETTING THINGS READY
CHOICE OF ELECTRICAL CONNECTION
· There are two possible ways to connect your
appliance, please choose from the most
appropriate after reading the descriptions
a) It is recommended that this appliance is wired
with suitably rated cable (min 13 A), into fixed
wiring using a double pole isolator with at least
3mm contact separation in all poles and neutral,
located within 2m of the appliance. If this fixed
wiring circuit is only supplying the appliance, then
a fuse of 13A (or circuit breaker) should be
incorporated. When the circuit combines oven
and hob, then wire and fuse rating should be
increased accordingly.
b) If you wish to connect an oven and a hob to a
cooker point you can:-
i) By connecting the oven and hob separately
to the cooker point. Oven and hob units
should be separately connected to a cooker
point. In this case the appliance should be
operated from 6mm
2
twin core, and earth,

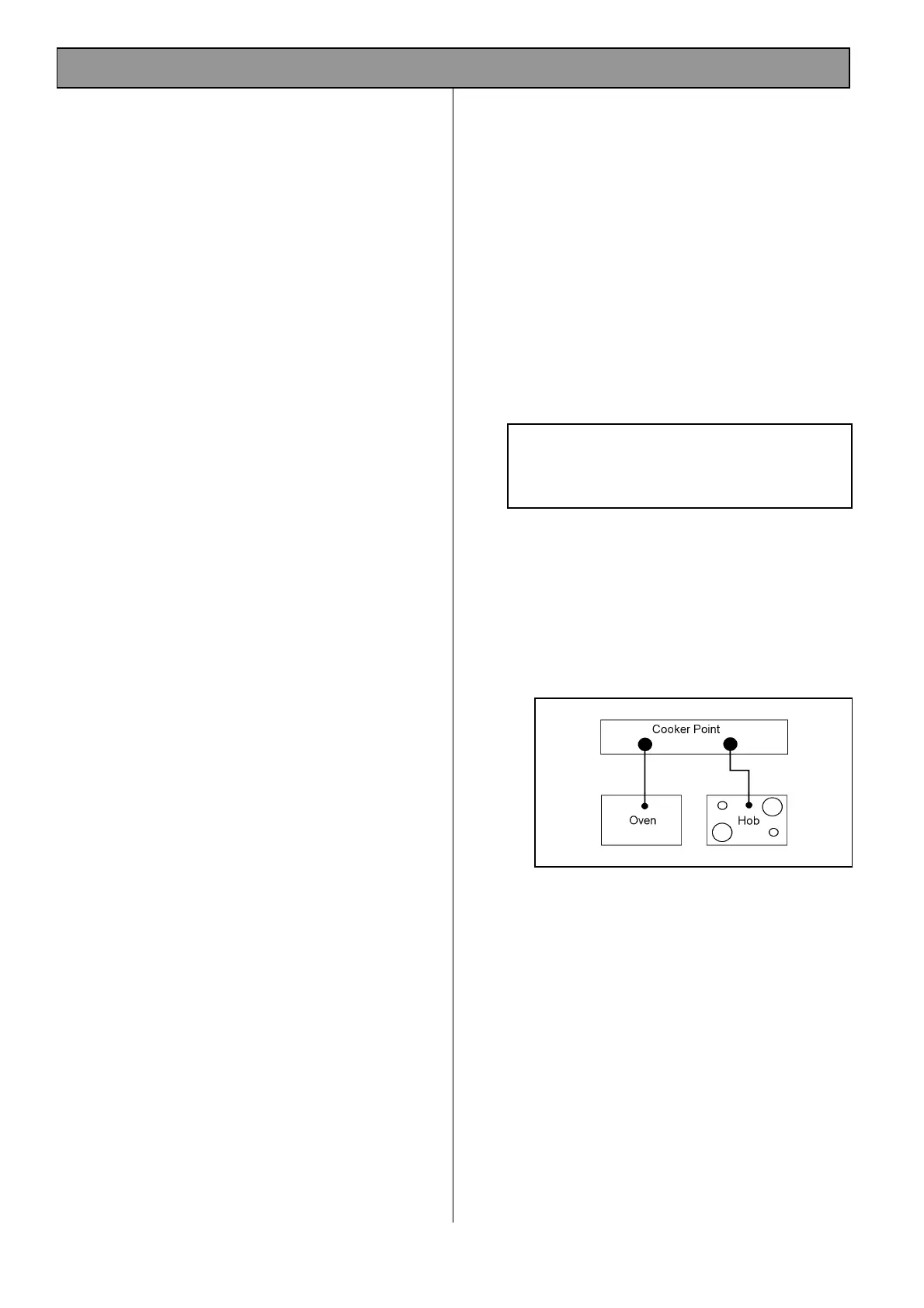

PVC insulated multicore cable. See Fig. 1.
Subject to Regional Electricity Companies
regulations if you wish to connect the oven
and hob to the power supply you may use
one of the following two methods:-
INSTALLATION INSTRUCTIONS
Fig. 1
