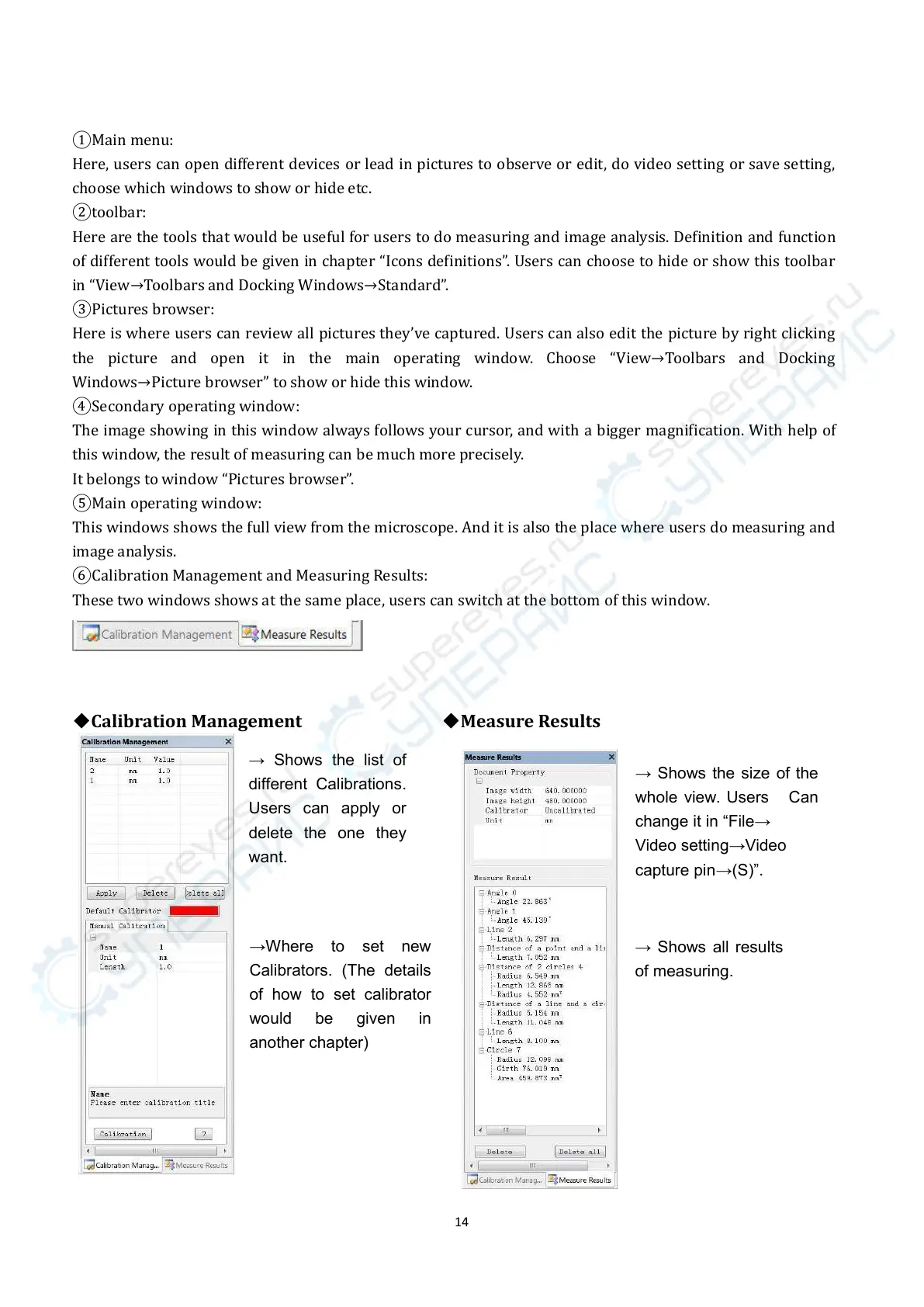

①Main menu:
Here, users can open different devices or lead in pictures to observe or edit, do video setting or save setting,
choose which windows to show or hide etc.
②toolbar:
Here are the tools that would be useful for users to do measuring and image analysis. Definition and function
of different tools would be given in chapter “Icons definitions”. Users can choose to hide or show this toolbar
in “View→Toolbars and Docking Windows→Standard”.
③Pictures browser:
Here is where users can review all pictures they’ve captured. Users can also edit the picture by right clicking
the picture and open it in the main operating window. Choose “View→Toolbars and Docking
Windows→Picture browser” to show or hide this window.
④Secondary operating window:
The image showing in this window always follows your cursor, and with a bigger magnification. With help of
this window, the result of measuring can be much more precisely.
It belongs to window “Pictures browser”.
⑤Main operating window:
This windows shows the full view from the microscope. And it is also the place where users do measuring and
image analysis.
⑥Calibration Management and Measuring Results:
These two windows shows at the same place, users can switch at the bottom of this window.
◆Calibration Management ◆Measure Results
→ Shows the list of
different Calibrations.
Users can apply or
delete the one they
want.
→ Shows the size of the
whole view. Users Can
change it in “File→
Video setting→Video
capture pin→(S)”.
→Where to set new
Calibrators. (The details
of how to set calibrator
would be given in
another chapter)
→ Shows all results
of measuring.
