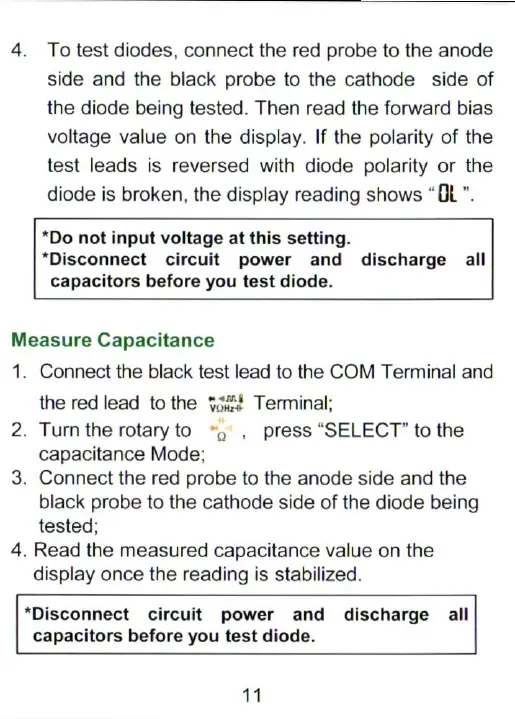

To
test
diodes,
connect
the red
probe
to
the
anode
side
and
the
black
probe
to
the
cathode
side
of
the
diode
being
tested.
Then
read
the
forward
bias
voltage
value
on
the
display.
If
the
polarity
of
the
test
leads
is
reversed
with
diode
polarity
or
the
diode
is
broken,
the
display
reading
shows
“OL”.
*Do
not
input
voltage
at
this
setting.
*Disconnect
circuit
power
and
discharge
all
capacitors
before
you
test
diode.
Measure
Capacitance
fi.
4.
Connect
the
black
test
lead
to
the
COM
Terminal
and
the
red
lead
to
the
ai!
Terminal;
.
Turnthe
rotary
to
*)
,
press
“SELECT”
to
the
capacitance
Mode;
.
Connect
the
red
probe
to
the
anode
side
and
the
black
probe
to
the
cathode
side
of
the
diode
being
tested;
Read
the
measured
capacitance
value
on the
display
once
the
reading
is
stabilized.
*Disconnect
circuit
power
and
discharge
all
capacitors
before
you
test
diode.
