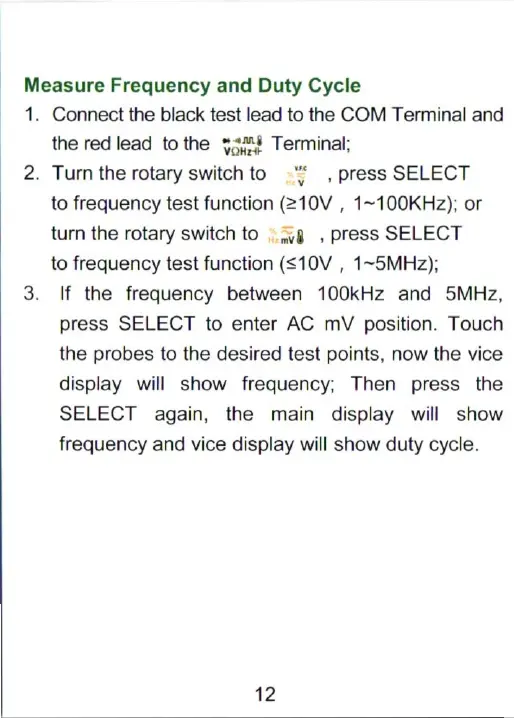

Measure
Frequency
and
Duty
Cycle
1.
Connect
the
black
test
lead
to
the
COM
Terminal
and
the
red
lead
to
the
¥3i*
Terminal;
2.
Turn
the
rotary
switch
to
“*
,
press
SELECT
to
frequency
test
function
(210V
,
1~100KHZz);
or
turn
the
rotary
switch
to
.
4g
,
press
SELECT
to
frequency
test
function
($10V
,
1~5MHz);
3.
If
the
frequency
between
100kHz
and
5MHz,
press
SELECT
to
enter
AC
mV
position.
Touch
the
probes
to
the
desired
test
points,
now
the
vice
display
will
show
frequency;
Then
press
the
SELECT
again,
the
main
display
will
show
frequency
and
vice
display
will
show
duty
cycle.
