■7. Painting job
7-1. Starting job
Job 1
Pour paint into container
(prepare it on your side) and
put intake hose set and drain
hose set into it.
Job 2
Open ball valve (for drain).
Job 3
Open ball valve (for air) and
operate pump.
Job 4
Tighten handle set of fluid regula
tor toward “high” side.
Job 5
Check that air and paint come
out from drain hose.
Job 6
Close ball valve (for drain).
Job 7
Pull trigger of gun and jet paint
till air does not mix into paint.
During this process, stop
atomizing air of gun
Job 8
Adjust fluid regulator and gun to
painting conditions and do the
painting job.
7-2. Interruption and stoppage of job
7-2-1 Interruption of job
･When you stop job for over 30 minutes, close ball valve (for air) , stop pump operation,
open ball valve (for drain) and reduces pressure in pump down to 0 MPa.

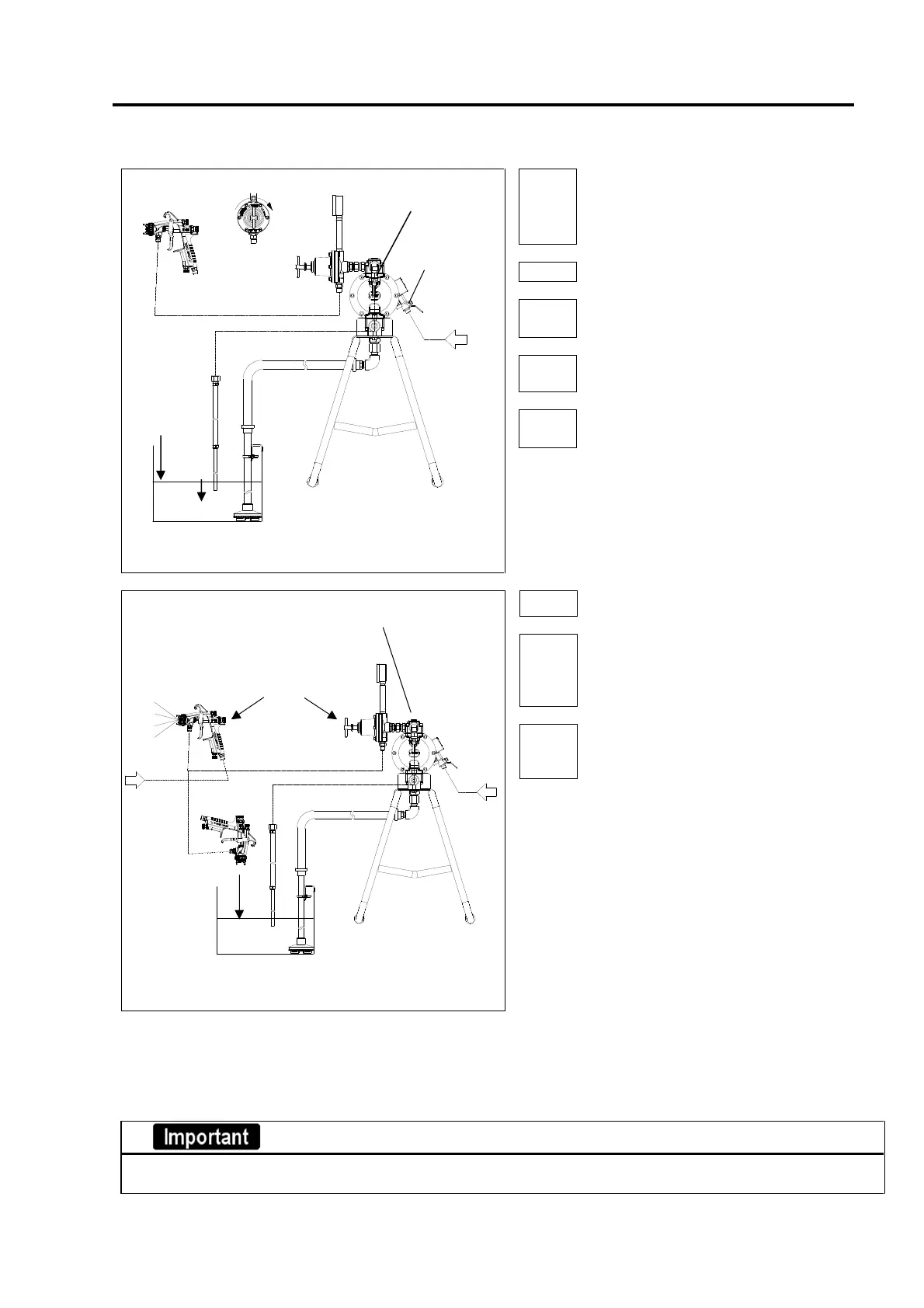

①Fluid
⑤
②Open
Ball valve
(for drain)
③Open
Ball valve
(for air)
⑧Adjust
⑥Close
ball valve
(for drain)
④High
