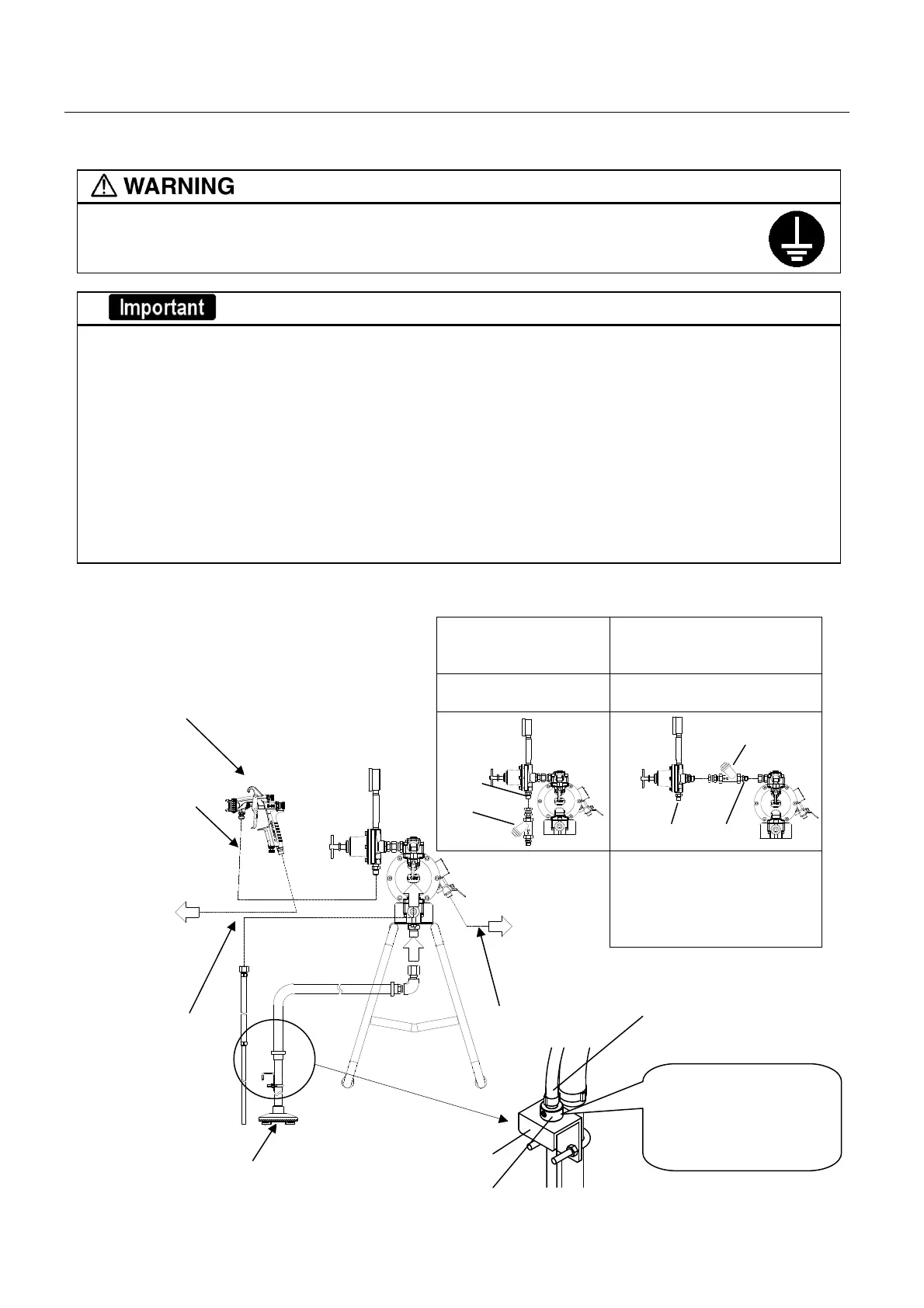

■5. Before operation
5-1.Installation, connection and inspection
Securely connect hose to avoid leaks and looseness. If hose is disconnected during
operation, hazardous hose movement and paint ejection will cause severe bodily njury.
• Securely ground pump, spray gun, workpiece and containers containing paint or
solvent. Insufficient grounding will cause explosion or fire by spark of static electricity.
• Install or keep pump free of rain or splashes. If not done, it can cause pump failure.
• Install pump free of paint mist. Attached paint mist etc., can cause pump failure.
• Use clean air filtered through dryer and filter (less than 50 microns).
If not done, it can cause pump failure.
• Install pump free of paint mist. Attached paint mist etc., can cause pump failure.
•When using metallic paint or paint with large pigment , use paint filter (optional) and periodically clean the
incide of pump. If not, it can clog gun or fail fluid regurator or generate seeding.
Selection of paint filter
To avoid clogging of gun and seedin…TF-7(connection 1/4)…install outlet of fluid regulator
To protect fluid regulator(pointer of pressure gauge does not point to zero)…TF-71
(connection 3/8)…install it between pump and fluid regulator
・Prevent the burst of drain hose set by using the magnetism of the drain pipe guide.
1. Securely connect each hose.
2. Cheack if filter of intake hoset is clogged
To avoid clogging of gun
and foreign matter
To protect fluid regulator
(when pointer of pressure gauge
does not point to zero)
Install TF-7 to outlet of
fluid regulator (PR-5B)
Install TF-71 between fluid regulato
r(PR-5B) and pump(DDP-90E)
Mesh size of paint filter
(TF-7 , 71)
standard ＃100
option ＃150
＃200
Select paint filter
Spray gun
(Sold separately)
Fluid hose
(Sold separately)
Air hose
(Sold separately)
Air hose
(Sold separately)
source
Filter
Connect to
air source
G1/4B
TF-7
TF-71
G3/8BG3/8B
By using magnetism
of the drain pipe
guide, fix drain hose
set.
Pipe stay
Drain pipe guide
Drain hose set
