○ or ● marked parts differ among DDP-90E, DDP-90EN, DDP-120B，
DDP-120BN respectively
■11. Parts list
11-1. DPS-90E・90EN・120B・120BN

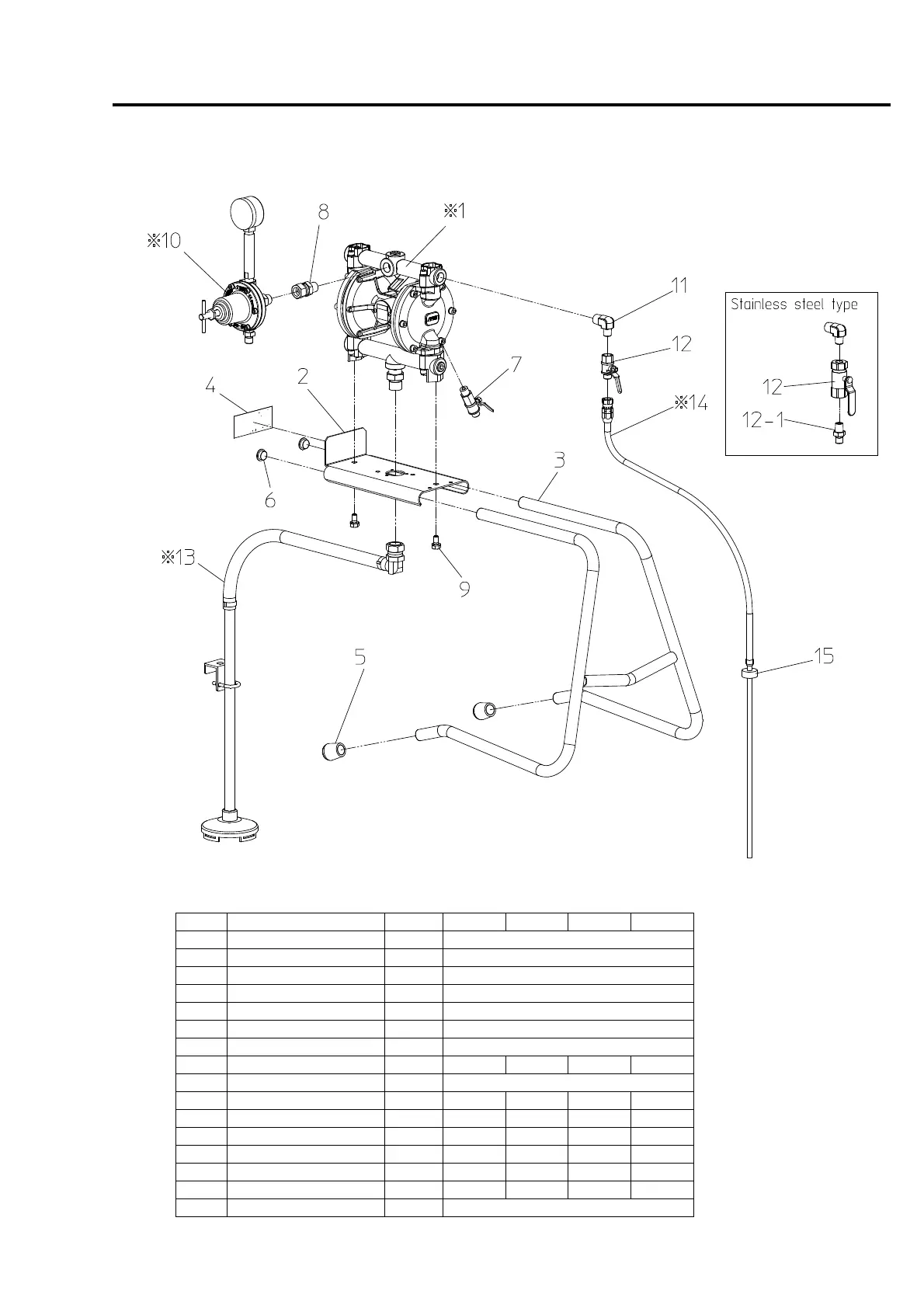

・Refer to following pages for detail of ※ marked parts
No Parts Name Qty 90E 90EN 120B 120BN
１ Diaphragm pump １
D
iffer all model
２ Base １ ○
３ Stand １ ○
４ Nameplate １ ○
５ Rubber leg ２ ○
６ Anti-dust cap ２ ○
７ Ball valve １ ○
８ Male-female union １ ○ ● ○ ●
９ Bolt with washer ２ ○
10 Paint regulator １ ○ ● ○ ●
11 Elbow １ ○ ● ○ ●
12 Ball valve １ ○ ● ○ ●
12-1 Joint １ ― ● ― ●
13 Intake hose set １ ○ ● ○ ●
14 Drain hose set １ ○ ● ○ ●
15 Drain pipe guide 1 ○
