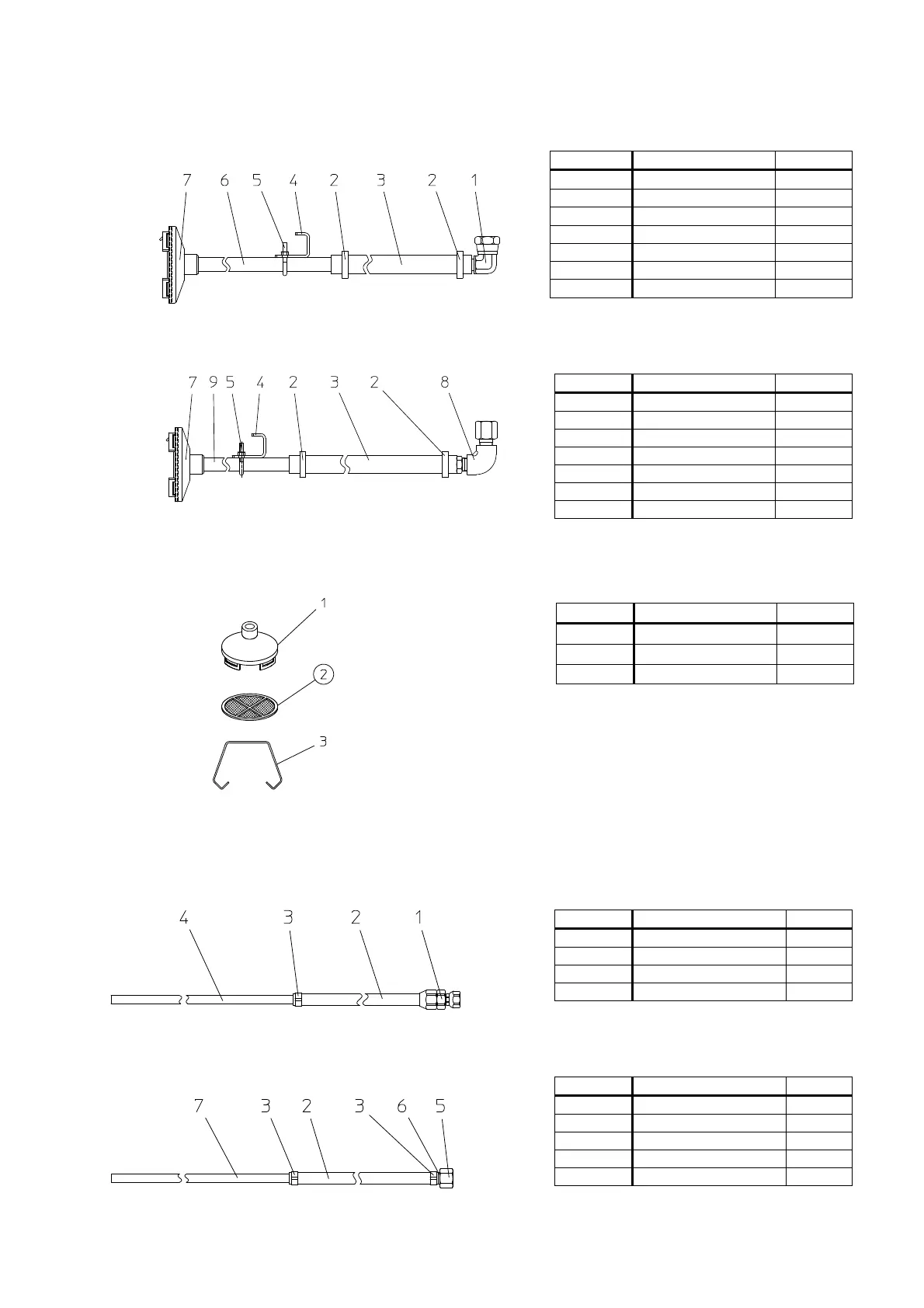

No. ⑬ Intake hose set
・○ marked parts are consumable parts
DPS-90E, 120B
No.
Parts name
Qty
13
-
1
Intake joint
1
13
-
2
Hose band
2
13
-
3
Intake hose
1
13
-
4
Intake pipe stay
1
13
-
5
U bolt
1
13
-
6
Intake pipe
1
※
13
-
7
Fluid intake filter
1
DPS-90EN, 120BN
No.
Pars name
Qty
13
-
8
Intake joint
1
13
-
2
Hose band
2
13
-
3
Intake hose
1
13
-
4
Intake pipe
stay
1
13
-
5
U bolt
1
13
-
9
Intake pipe
1
※
13
-
7
Fluid intake filter
1
No.⑬-7 fluid intake filter
No. Parts name Qty
1 Fluid intake filter
１
○
2 filter
１
3 retainer
１
No.⑭ Drain hose set
・○ marked parts are consumable parts
DPS-90E, 120B
No.
Parts name
Qty
1
4
-
1
Urethane fluid joint
1
○
1
4
-
2
Drain hose
1
1
4
-
3
Hose band
1
1
4
-
4
Drain pipe
1
DPS-90EN, 120BN
No.
Parts name
Qty
1
4
-
5
Cap nut
1
1
4
-
6
Joint
1
○
1
4
-
2
Drain hose
1
14
-
3
Hose band
2
1
4
-
7
Drain pipe
1
