Before Assembly After Assembly
After Assembly
Before disassembly After disassembly
After disassembly
Attention: loose the jackscrew of elastic coupling to place T lead
screw to the bottom, then tighten the jackscrew.
Before Assembly

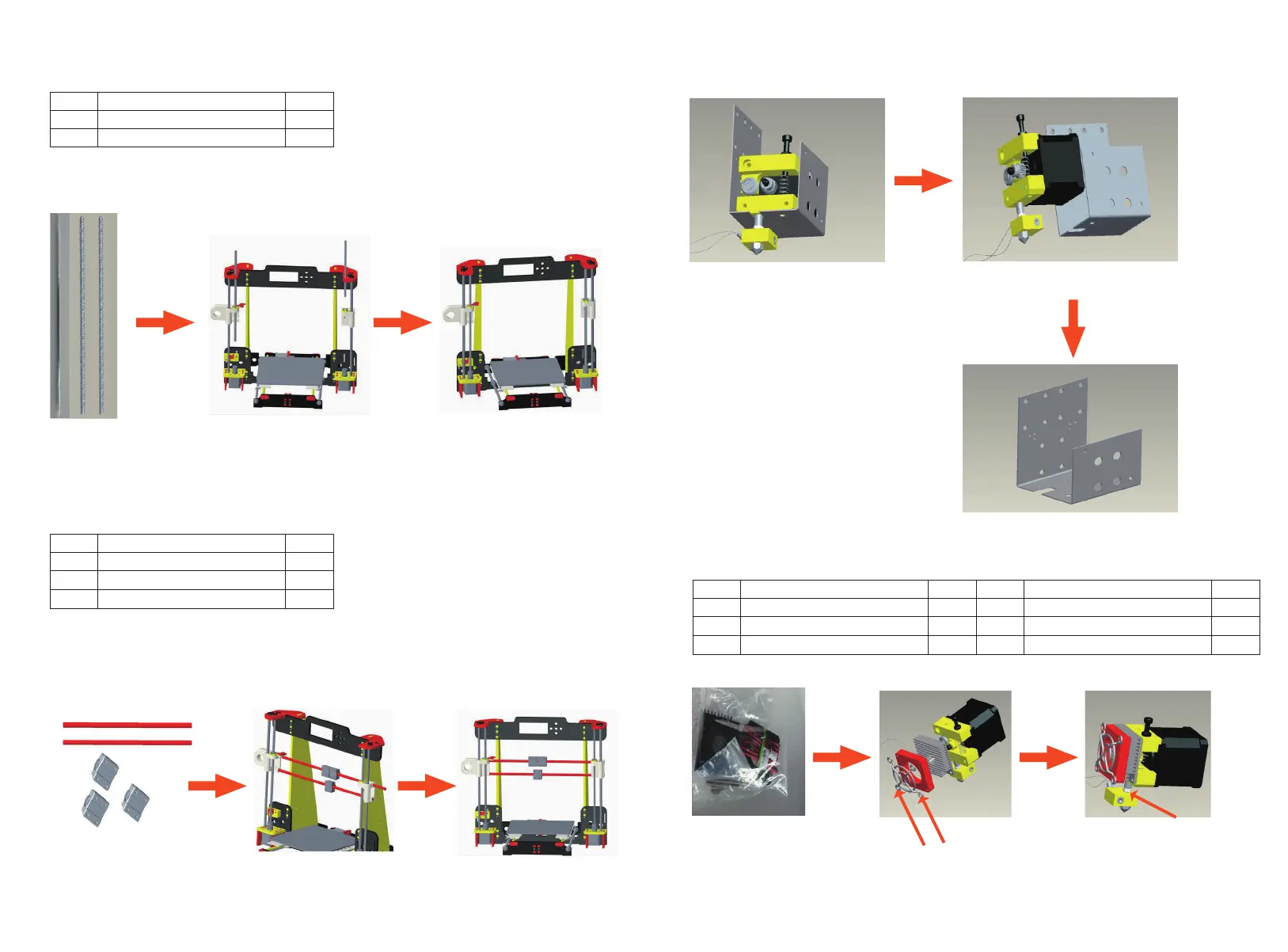

Step 14
Item
1
2
1
2
QTY.Name of parts
Step 13
T type lead screw 345mm
T lead screw 345mm
Attention: Please keep A&B at the same level during X rods installation.
Knock the guide rods with a hammer slightly if it’s hard to place.
Loose M4*6 screws first, then
separate extruder from L black
aluminum parts, remember to
keep the screws.
Step 15
Item
1
2
1
2
QTY.Name of parts
Step 14
X axis Guide rod
3 3Linear bearing
X axis Guide rod 436mm
M3*45 Screw holes
Before Assembly After Assembly
Step 17
Item
1
2
1
1
QTY.Name of parts
Extruder taken from step 16
3 140*11 Cooling fin
40*10 Fan
Item
4
5
1
2
QTY.Name of parts
Fan cover
M3*45 Screw
6 6-8M3 Spacer
Step 16
Replace M3*20
screw with M3*45 screw
page 20 page 21
