Anet A8 - Page 14

M3*18
M3*20
Attention: Install M4*6 screw. Tighten M6 Screw on the throat with
spanner till extruder is not loose.
Item
1
2
1
1
QTY.Name of parts

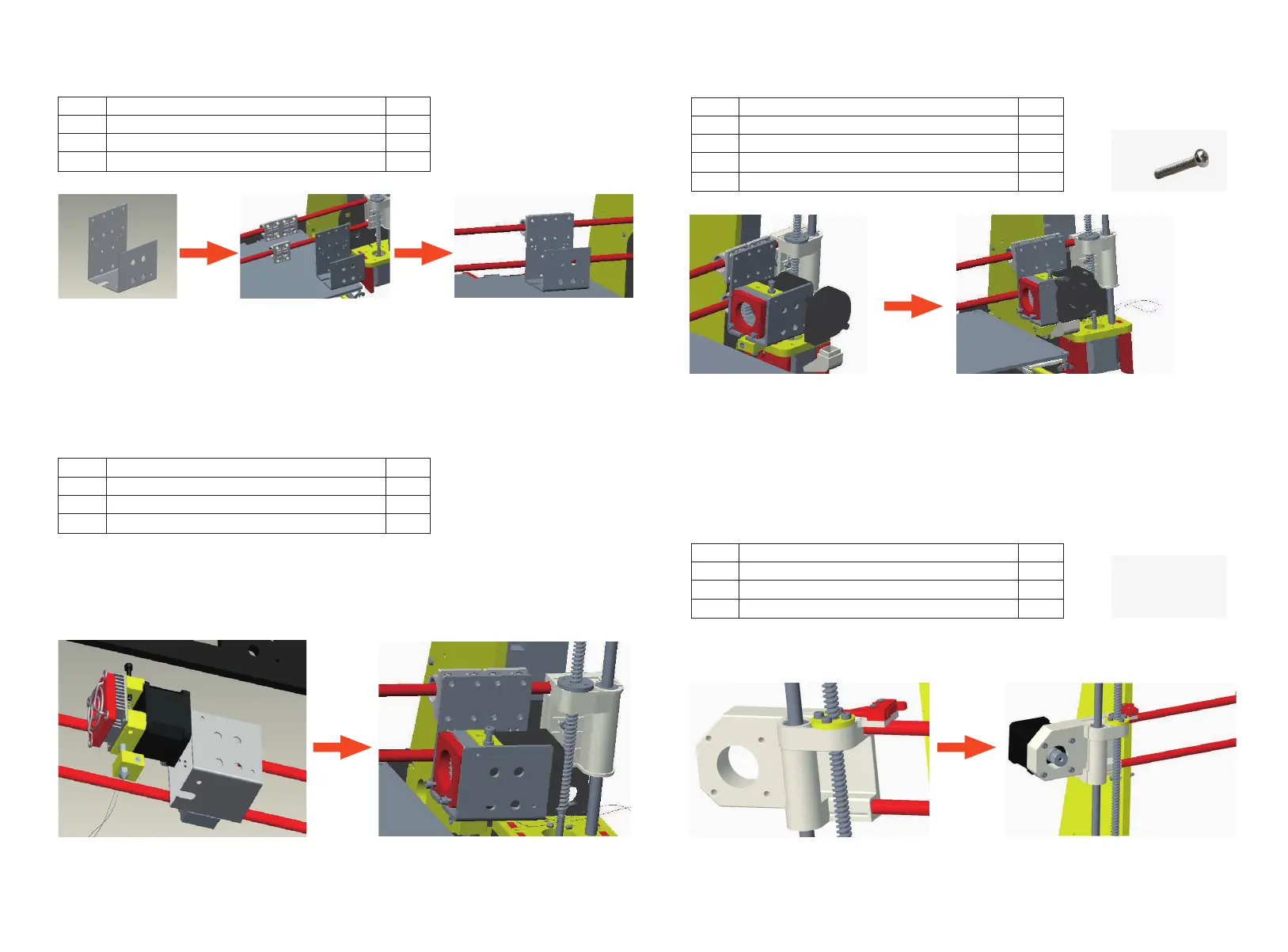

Step 15
The black aluminum removed from step 16
3 12M4*8 screw
Before Assembly After Assembly
Before Assembly After Assembly
Before Assembly After Assembly
Step 18
Item
1
2
1
1
QTY.Name of parts
Step 17
Step 18
3 1M4*6 We taken from step 16
Step 19
Item
1
2
1
1
QTY.Name of parts
Step 19
5015 Air blower
3 1Wind mouth
4 2M3*18 screw
Before Assembly After Assembly
Step 20
Item
1
2
1
1
QTY.Name of parts
X axis motor
Left Z axis nut support
3 4M3*20 screw
Step 21
page 22 page 23
