Anet A8 - Page 15

Item
1
2
3
1
4
1
QTY.Name of parts
LCD 2004 screen
Pillar washer M3*7
Screen baffle plate
4
5
4
8
M3*30 screw
M3 Nut

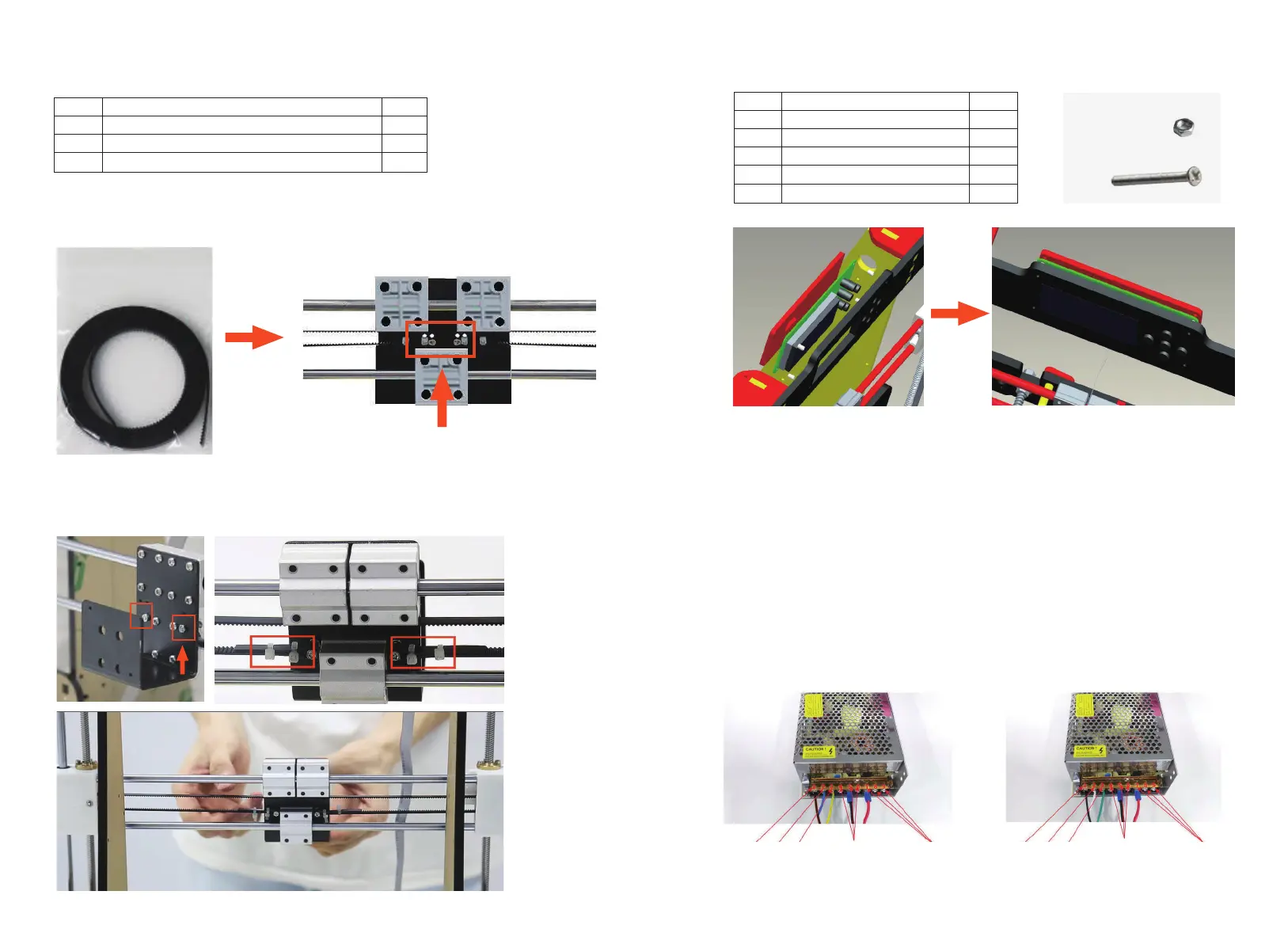

Attention: Belt is for X,Y axis transmitting . The length of belt is 1.5m
in total. Normally there’ll be 10-20cm left after installation.
Attention This is the wiring diagram of power supply. 1, 2, 3
seperately represent the line of fire (black),Zero line (white),
ground wire (green). 4,5, 6 represent negative pole (black)
(-);7,8,9 represent the positive pole (red) (+).To avoid danger ,
please assure the installation is correct .
M3*18 Screw
Before Assembly After Assembly
Item
1
2
1
2
QTY.Name of parts
Belt
M3*18 screw
3 4M3 Nut 4
Step 22
Step 23
M3 Nut
Step 25
Step 24
M3*30
M3*7 M3
black black redwhite green
page 22 page 23
brown black redblue yellow
EU-standard Ways of Wire Connection US-standard Ways of Wire Connection
