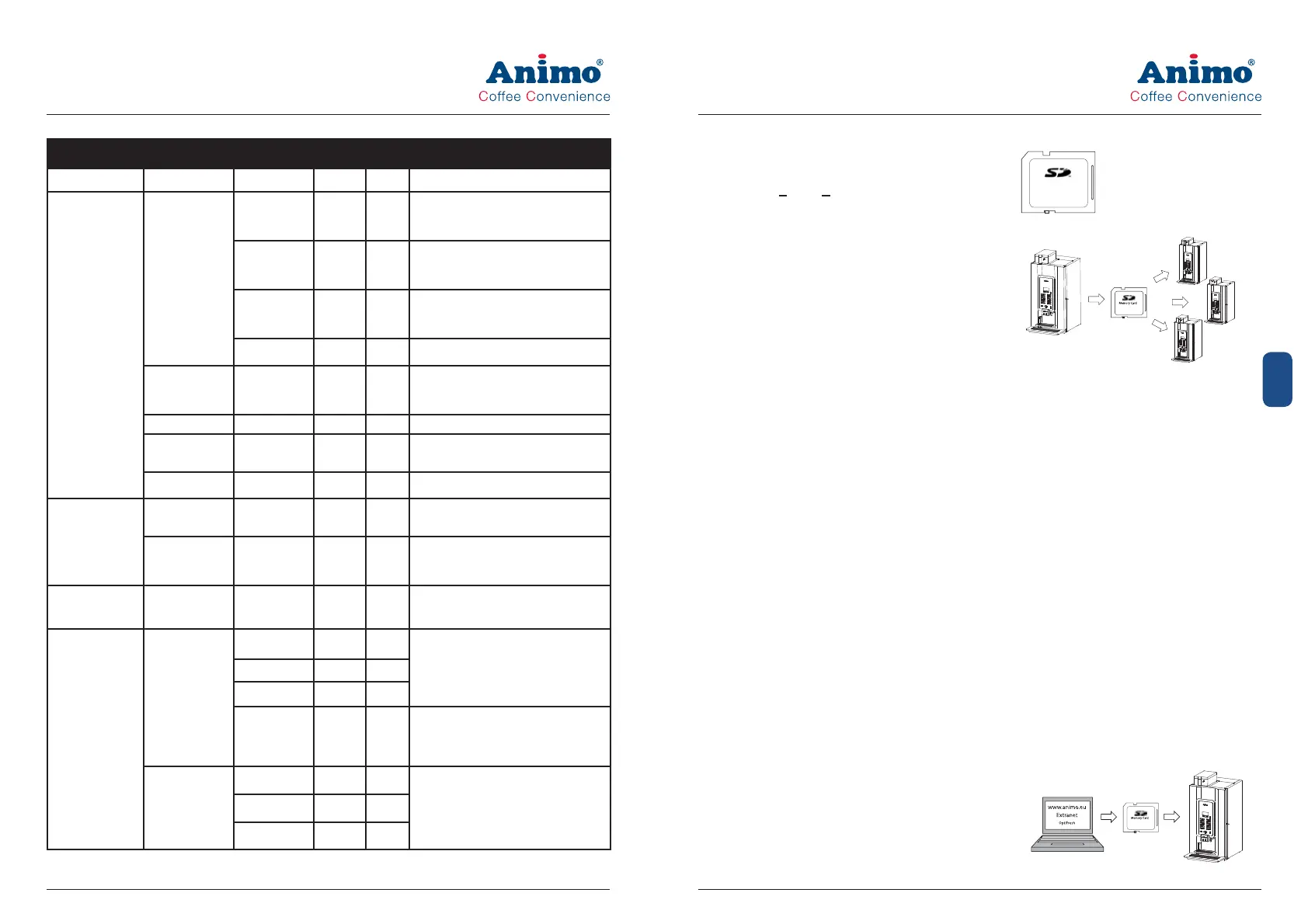

Service menu continued ...
Main item Sub-item Item Range Set Description
2.13 Additional
settings
Waste bin
management
Number of
makings
0-1000 140
After reaching the set number of brewer
movements, the vending is blocked and on the
display the message is shown; Out of order -
Waste bin full
Hysteresis 0-100 20
After reaching the set number of brewer
movements minus the hysteresis,
on the display the message is shown; waste
bin almost full
Time-out reset 0-50 sec. 15 s
The time that the waste bin must have been
removed from the machine (to empty it). When
it is replaced, the (internal) waste bin counter
is reset. Any display messages disappear.
Waste bin signal yes-no yes
Deactivate waste bin sensor in software
(bypass).
Cycly counter xxxxx
0-100.000
This cycle counter counts the number of brews
the brewer has made. Tip; this counter can
be reset after major maintenance when, for
example, the brewer is checked.
Reset cycly counter Reset counter?
Reset cycle counter (Brewer)
Service brewer 0-50.000 25.000
When the set number of brews (Brewer) is
reached, the display shows the message
‘Service brewer’.
Reset service
brewer
Reset counter?
Reset the Service brewer signal after main-
tenance has been carried out on the brewer.
2.14 Installation
Commissioning
When a new machine is switched on, the com-
missioning menu starts automatically. Follow
the instructions on the display.
Shut down
Start this shut down menu if the machine’s
boiler system has to be emptied for transport
and/or maintenance.
Follow the instructions on the display.
2.15 Descaling Start the descaling menu when the boiler
system has to be descaled. Follow the instruc-
tions on the display.
2.16 Cleaning
management
Rinsing
rinse mandatory yes - no no
If rinsing mandatory is set to YES, the ma-
chine is locked if it is NOT rinsed after the set
number of cups or days. Out of order / rinse
After the rinse programme has been comple-
ted, the machine is released again.
cups 0
days 1
Rinse via front yes - no no
When rinsing via the front is set to YES, the
rinse programme can be activated using the
stop key on the front of the machine. Press
and hold the Stop key for 10 seconds and then
follow the instructions.
Cleaning
Cleaning man-
datory
yes - no no
If cleaning mandatory is set to YES, the
machine is locked if it is NOT cleaned after the
set number of cups or days.
‘Out of order / clean
After the cleaning programme has been com-
pleted, the machine is released again.
cups 0
days 7
3. SOFTWARE
3.1 Memory card specs
Type: SD (Secure Digital card)
Size: 16 Mb or bigger
3.2 Machine setting management
The following changed settings can be saved on an SD
memory card and/or copied to another machine:
- Personal settings
- Recipes
The following data maintained by the machine can be
saved on an SD memory card and reloaded (e.g. when
tting a new circuit board):
- Counters
- Log
- Operating hours
See Page.
49 & 50 menu item 2.11 SD menu of this
service book for further explanation.
Reading les on a computer
The following les can simply be opened on a computer.
Counter le *.CNT
Log le *.LOG
Operating hours le *.TMR
Place the SD card in your computer and open the re-
quired le with notepad or wordpad. See the example
Note: Depending on your settings, Windows can see
the LOG le as a TXT le.
3.3 Software installation
New software can easily be installed on the machine.
New software can be made available in the following
ways:
www.animo.eu / dealer login: Extranet
by e-mail
Memory Card
Generated on 2011-01-05,
15:17:02
Button 1 (Coffee)
Total: 62
Free: 62
Payed: 0
Pot: 10
Button 2 (Coffee Milk)
Total: 0
Free: 0
Payed: 0
Pot: 0
Button 3 (Espresso)
Total: 0
Free: 0
Payed: 0
Pot: 0
Button 11 (>none<)
Total: 0
Free: 0
Payed: 0
Pot: 0
Button 12 (Hot Water)
Total: 6
Free: 6
Payed: 0
Pot: 0
Totals
Total: 84
Free: 84
Payed: 0
Pot: 10
Other counters
Rinse: 75
Clean: 19
Brewer filter: 1300
Brewer total: 1299
Service: 12211
