4. Fresh milk system problems

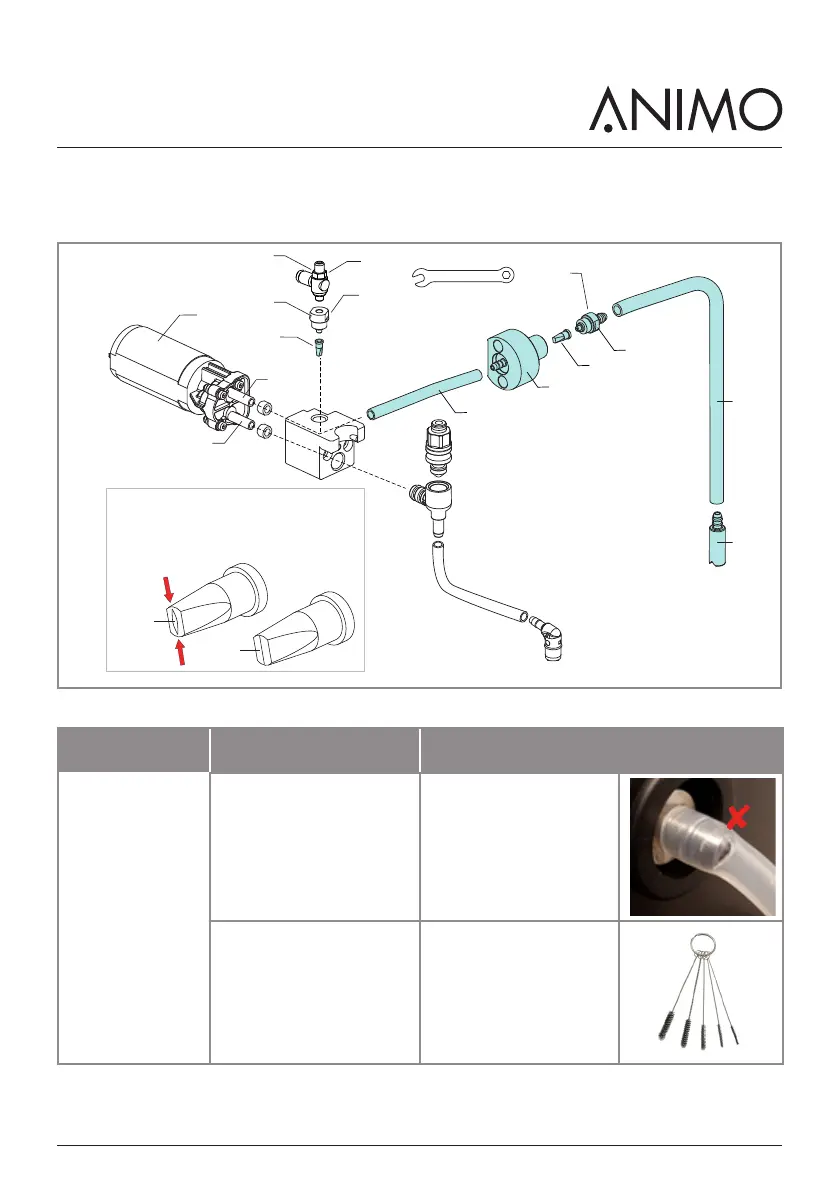

Use below drawing to identify the mentioned components mentioned in the trouble shooting table.
8mm
10mm
10mm
in
entrée
out
sortie
closed
fermé
open
ouvert
press
presse
[A]
[B]
[C]
[D1]
[E]
[F]
[A]
[D2]
Duckbill valve
Lippenventil
Valve bec de canard
[D1]
[D2]
[H]
[G]
[I]
Problem Possible cause Solution
Steam leaves
from the milk
outlet.
No milk
dispensing
Milk intake tube between
machine and refrigerator
damaged or kinked
Check the milk inlet tube
[B] for cracks. Shorten or
replace if necessary.
Cold milk supply obstructed
Check for obstructions in
the blue selected parts.
Clean or replace if
necessary.
Art.no. cleaning
brushes: 1008122
