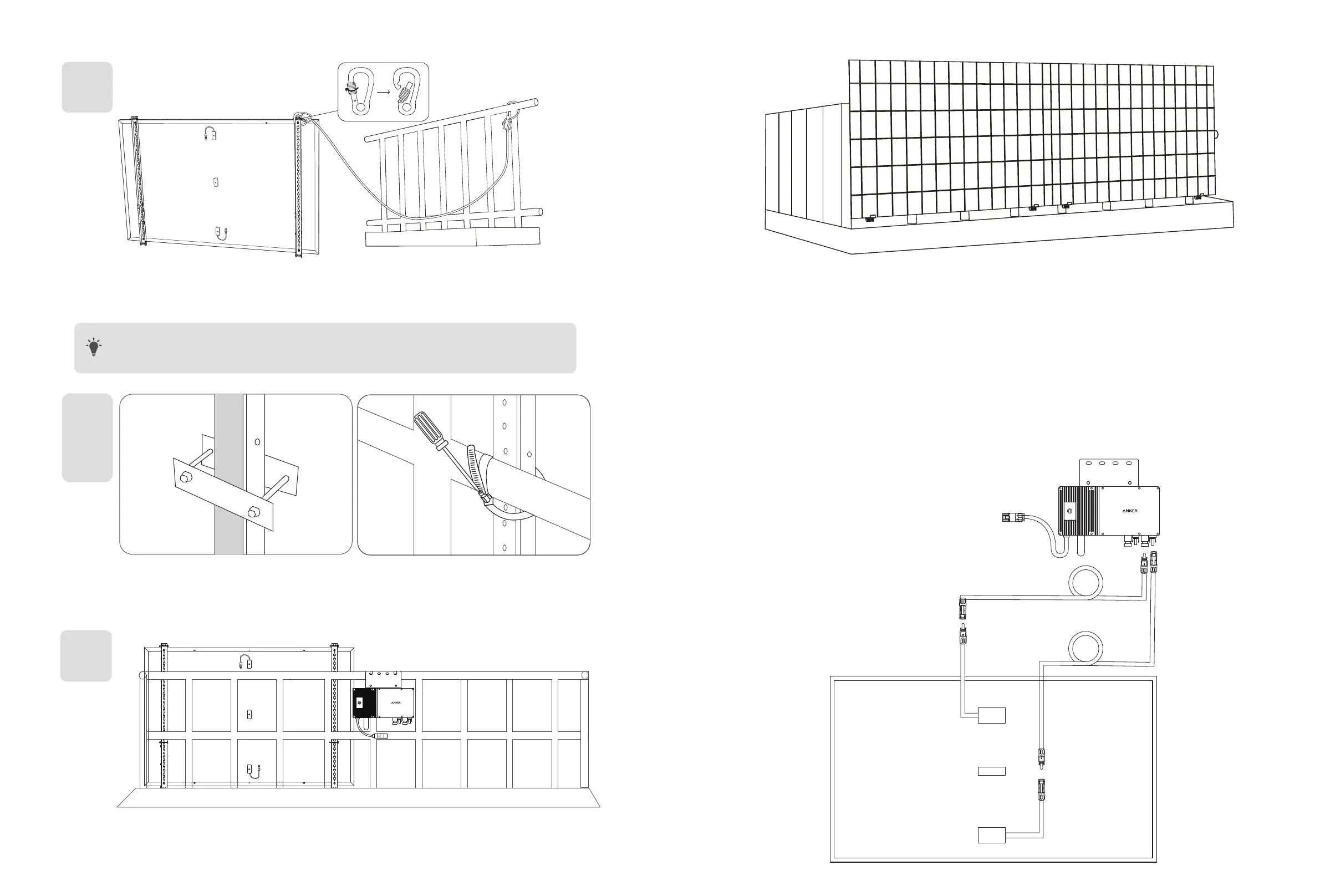

5. Fasten the Mounting Auxiliary Rope to the bracket and the balcony railing. Make sure the rope is tightened.
O x1
6. Install the solar panel's support brackets on the balcony railing, then secure them using fastening clamps and stainless steel
hose clamps.
T
·
Tighten the stainless steel hose clamps clockwise, and loosen the stainless steel hose clamps
counterclockwise.
·
At least 2 stainless steel hose clamps are needed to secure the brackets on one side.
E x1
K x2
G x4
J x4
7. Install the microinverter to the balcony railing with stainless steel hose clamps.
Note: The microinverter's front surface (with the Anker logo) should face outwards.
K x2
Check if all screws are tightened and complete the installation.
8. Repeat the steps above to install another solar panel.
9. Connect the solar panel and the microinverter with the solar panel extension cables. When the LED indicator starts flashing,
wait for 90 seconds.
Note:
1. Ensure that two solar panels have been installed before this step.
2. This step must be done while there is enough sunlight for the solar panel to provide power to the microinverter.
Status Check:
I. The LED light on the microinverter should flash red slowly (on for 2 seconds, then o for 2 seconds), which indicates that the
microinverter is ready. If not, you will need to unplug and replug the solar panel's extension cable.
II. You can find the microinverter's SSID on your device's Wi-Fi pairing page (named MI-XXXXXXXXX) (Do not pair this SSID with your
device at this time). Unplug the extension cable from the solar panel and reinstall it if you cannot locate it. After the LED light has
flashed for 90 seconds, check again.
1.5m
