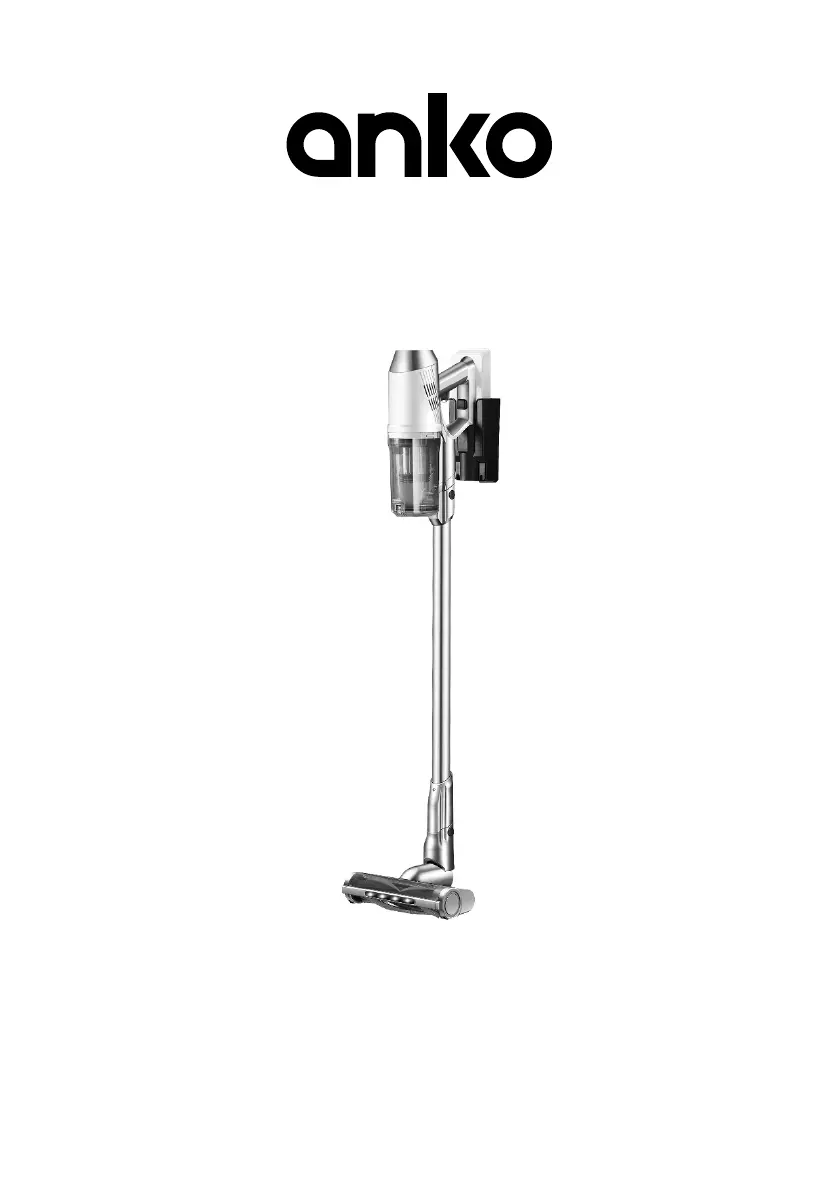

anko EV-696-S222 User Manual (English)

Questions and Answers:

D
David HartAug 4, 2025
What to do if my anko EV-696-S222 turned off and red symbol flashing?
- W
  wrightmelissaAug 4, 2025
  If your anko Vacuum Cleaner turns off and a red symbol is flashing, it could be due to two reasons. First, the floor head brush might be jammed. To fix this, switch off the vacuum cleaner, remove the battery, and then remove any debris from the brush. Second, the filter could be totally blocked, restricting airflow. In this case, switch off the vacuum cleaner, remove the battery, and then clean or change the filter. Also, check for any other blockages and remove them.
D
Dale NelsonAug 10, 2025
What to do if my anko Vacuum Cleaner will not charge and red symbol °C flashing?
- M
  Melissa HayesAug 10, 2025
  If your anko Vacuum Cleaner will not charge and a red symbol °C is flashing, the battery may be too hot. Allow the battery to cool down for 15 – 30 minutes and then try again.
B
Brittany RiosAug 16, 2025
How to fix noisy operation of anko Vacuum Cleaner?
- R
  Rebecca MyersAug 16, 2025
  If your anko Vacuum Cleaner is operating noisily, try these solutions: First, clean the filter and empty the dust canister. Second, check for any partial blockages and remove them.
J
jessicalewisAug 22, 2025
How to fix floor head hard to push for anko Vacuum Cleaner?
- J
  Jacob LyonsAug 22, 2025
  If the floor head of your anko Vacuum Cleaner is hard to push, it may be because the rotary brush is jammed with debris. Ensure the vacuum cleaner is switched off, the battery removed then remove the debris from the brush. Alternatively, the carpet pile may be too long.
T
Tyler WellsAug 29, 2025
Why does my anko EV-696-S222 give me a static shock?
- K
  Kyle FranklinAug 29, 2025
  Static shock from your anko Vacuum Cleaner is a common phenomenon caused by static electricity discharge, especially when vacuuming synthetic fiber carpets or surfaces. If this is a problem, try wearing insulating footwear (rubber or leather soles) or increase the humidity/heat level in the environment.

anko EV-696-S222 Specifications

General

Brand	anko
Model	EV-696-S222
Category	Vacuum Cleaner
Language	English

Summary

Safety and Warnings

General Warnings

Read and follow all warnings and instructions before using the appliance, even if familiar.

Safety Directions

Read manual carefully before first use. Keep manual for future reference. Follow 'DO NOT' instructions.

Product Components and Transport

Vacuum Components

Identification of key parts including Control Panel, Battery Pack, Charger, Extension Tube, and Floor Head.

Transporting the Vacuum

Move the vacuum cleaner using the carry handle, not the cable or accessories.

Assembly and Setup

Assembling Extension Tube and Floor Head

Insert and lock the Extension Tube and Motorised Floor Head onto the vacuum body.

Removing Extension Tube and Floor Head

Press locking buttons to release and pull the tubes or head straight out.

Using Accessories and Tools

Attach Crevice/Brush tool directly to the vacuum or extension tube. Store tools on the bracket.

Battery Insertion and Charging

Insert battery into vacuum body until it locks. Slide vacuum into charging dock to charge.

Operating the Vacuum Cleaner

Powering On and Off

Squeeze the button on the handle to switch the vacuum on or off.

Speed and Mode Selection

Select Default, Turbo, or Auto mode via control panel buttons for different cleaning needs.

Indicator Lights and Alerts

Jammed Brush Indicator

Red light blinks on/off if the floor head brush becomes jammed. Vacuum turns off.

Filter Blockage Alert

Red light blinks on/off if the filter is totally blocked or there's total air flow blockage.

Battery Overheating Alert

Red '°C' symbol appears if battery is too hot to charge. Allow to cool before charging.

Maintenance and Cleaning

Emptying the Dust Canister

Remove dust canister by twisting anticlockwise. Open trap door to empty contents into bin.

Cleaning Filters

Clean filters regularly by tapping or washing in mild soapy water. Ensure they are completely dry.

Cleaning Dust Canister and Body

Wash dust canister and clean vacuum body/tools with a moist cloth and mild detergent.

Cleaning the Motorised Floor Head

Remove the rotary brush by unlocking the retaining plate to clear hair and debris.

Storage

Wall Mount Installation

Install the Charging Dock/Storage Bracket on the wall at a suitable height using provided screws.

Troubleshooting Guide

Power and Charging Issues

Addresses problems like the vacuum not switching on or not charging, including battery overheating.

Operational Faults

Covers vacuum turning off due to brush jam or filter blockage, and noisy operation.

Performance Issues

Troubleshooting weak suction, difficulty pushing the floor head, and static shock occurrences.

Warranty Information

12 Month Kmart Warranty

Product is warranted against defects for 12 months. Contact customer service for claims.
