Anritsu ML248 A Series Maintenance Manual

6-3 Power Meter Reassembly Chapter 6 — Removal and Replacement Procedures
6-10 PN: 13000-00164 Rev. K ML248xx, ML249xA MM
6-3 Power Meter Reassembly
Installation of any assembly is the reverse of the disassembly procedure listed above.
Caution
When rebuilding the meter, pay special attention the location and routing of the AC power cable that
connects from the PSU at P1 to the rear panel, and the DC supply cable that connects from the PSU
at P2 to the control PCB. These cables can become trapped and pinched if incorrectly positioned.
See Figure 6-13 below for the correct position.

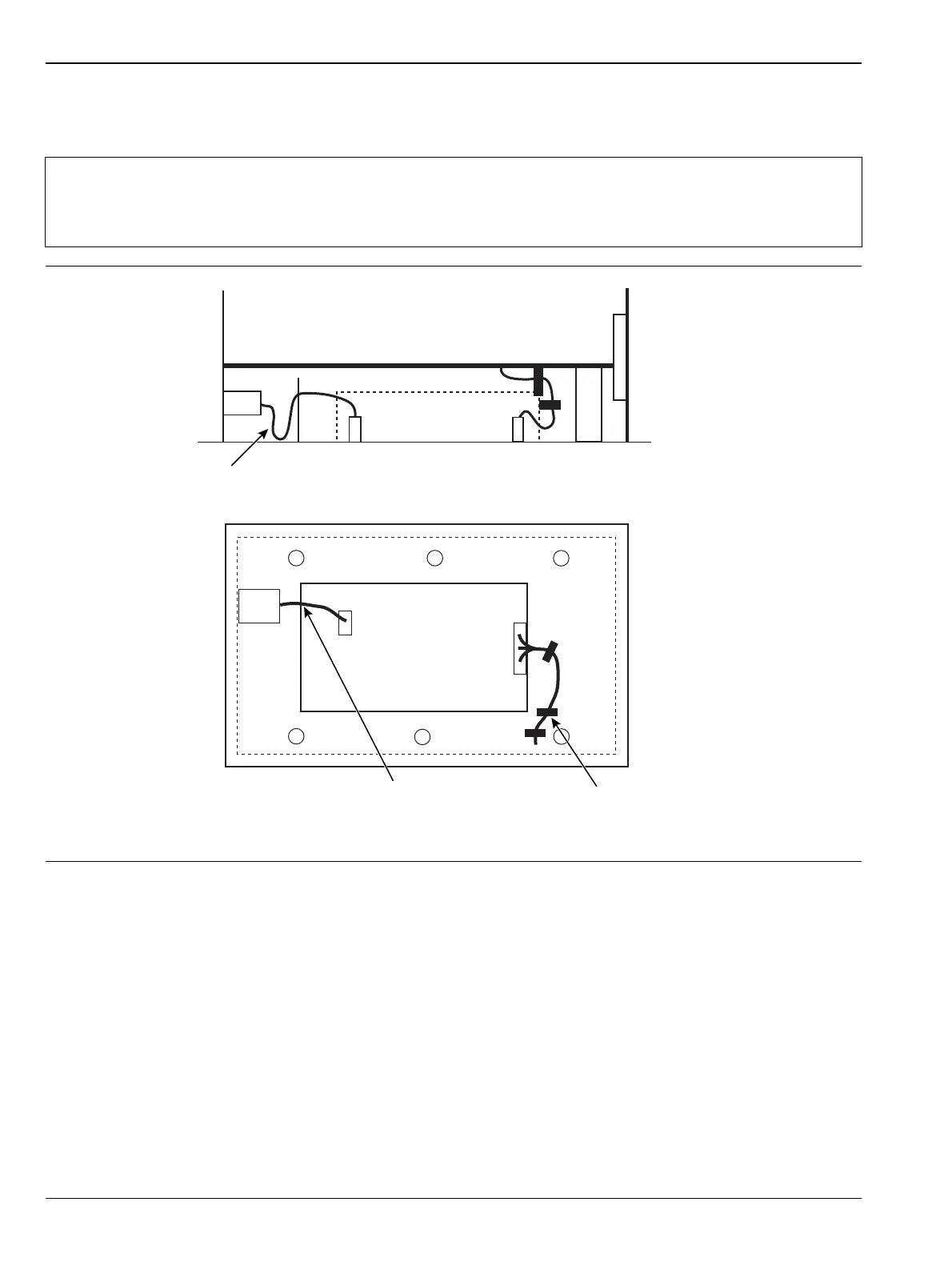

Figure 6-13. Correct AC and DC Line Wiring
AC Line Wire Service Loop
Route AC Line
Through Slot
Route Wire Between
Standoff and Plastic Cage
for PSU
