Chapter 7 Remote Commands
7-60
7.4.3.2.1 Graph display setting commands
[6]
[5]
[1]
[2] [3]
[4]

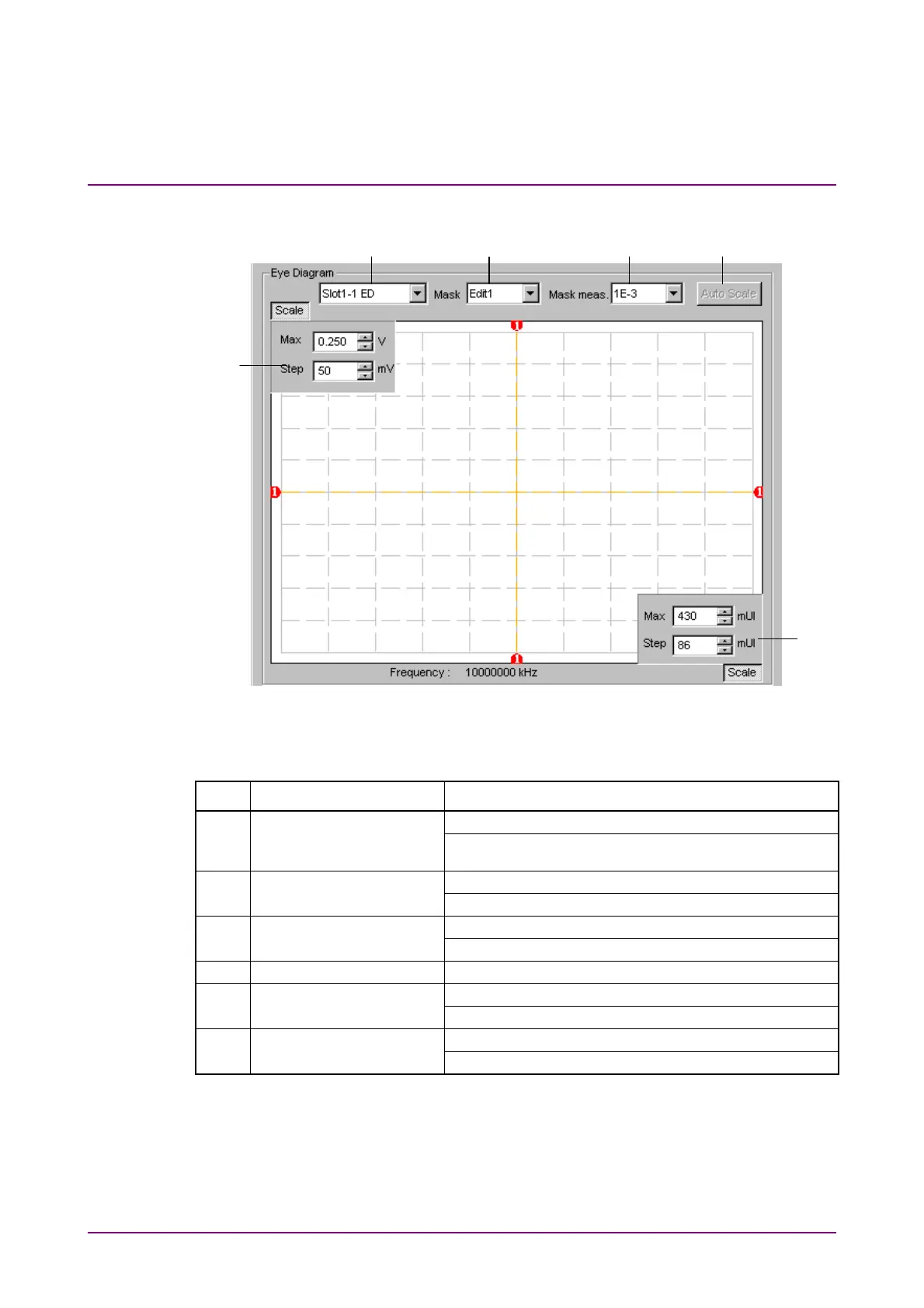

Figure 7.4.3.2.1-1 Eye Diagram Area
Table 7.4.3.2.1-1 Graph Display Setting Commands
No. Item Command
[1] No label
(Result display slot
setting)
:DISPlay:RESult:EDIagram:SLOT
:DISPlay:RESult:EDIagram:SLOT?
[2] Mask :DISPlay:RESult:EDIagram:TEMPlate:SELect
:DISPlay:RESult:EDIagram:TEMPlate:SELect?
[3] Mask meas. :DISPlay:RESult:EDIagram:TEMPlate:THReshold
:DISPlay:RESult:EDIagram:TEMPlate:THReshold?
[4] Auto Scale :DISPlay:RESult:EDIagram:SCALe:ASCale
[5] Max/Step :DISPlay:RESult:EDIagram:SCALe:VOLTage
:DISPlay:RESult:EDIagram:SCALe:VOLTage?
[6] Max/Step :DISPlay:RESult:EDIagram:SCALe:PHASe
:DISPlay:RESult:EDIagram:SCALe:PHASe?
