7.4 Automatic Measurement Commands
7-75
7
Remote Commands
7.4.3.3 Diagram (Status) setting commands
[1],[3] [2],[3]
[5] to [7][8] [4]

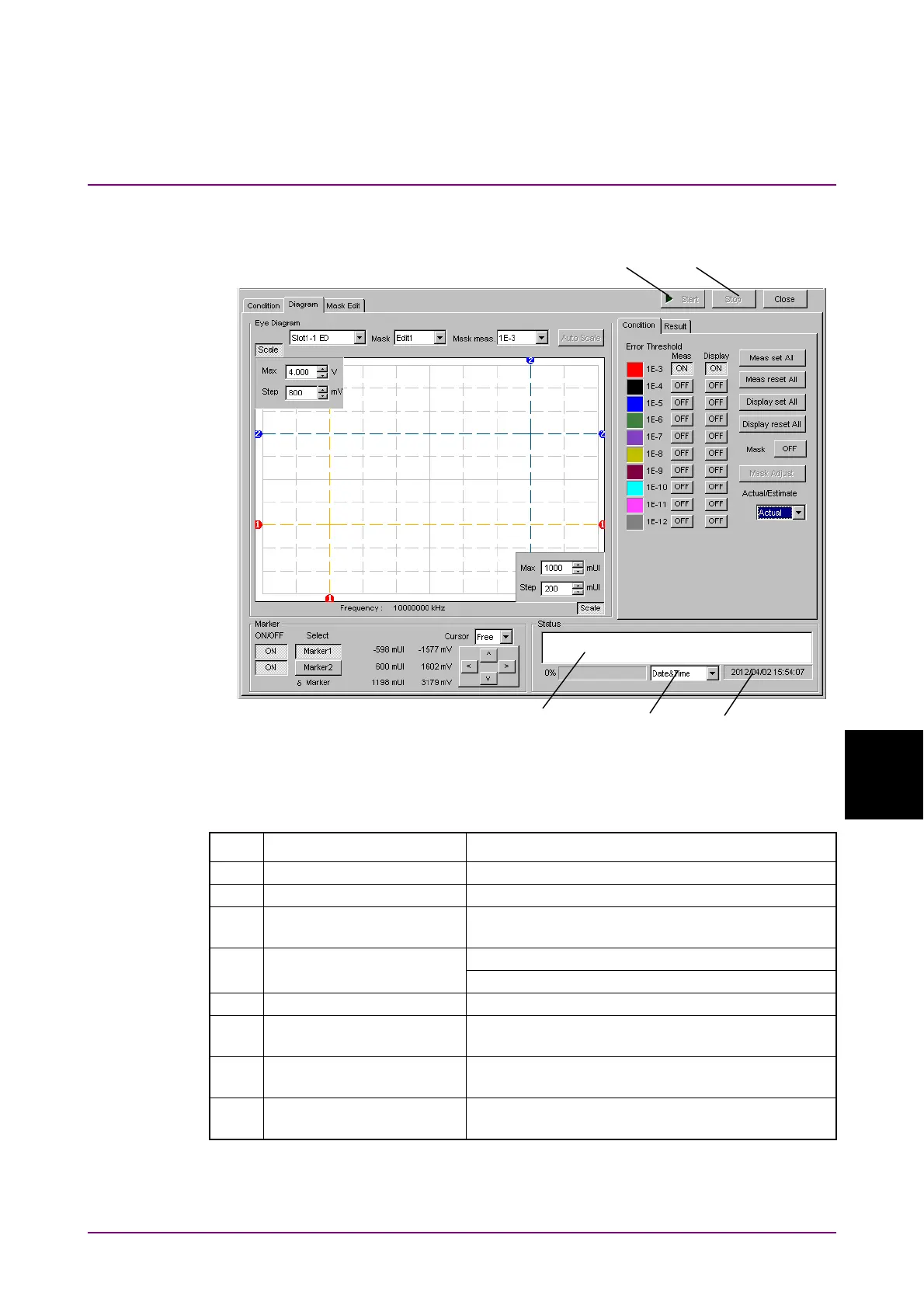

Figure 7.4.3.3-1 Diagram Tab (Start and Stop Buttons and Status Display
Table 7.4.3.3-1 Diagram Tab (Status) Setting Commands
No. Item Command
[1] Start :SENSe:MEASure:EDIagram:DIAGram:STARt
[2] Stop :SENSe:MEASure:EDIagram:DIAGram:STOP
[3] Query for measurement
state
:SENSe:MEASure:EDIagram:STATe?
[4] No label (Setting of time
display)
:SENSe:MEASure:EDIagram:TIME
:SENSe:MEASure:EDIagram:TIME?
[5] Query for current time :SENSe:MEASure:EDIagram:DTIMe?
[6] Query for measurement
start time
:SENSe:MEASure:EDIagram:STARt?
[7] Query for measurement
elapsed time
:SENSe:MEASure:EDIagram:ELAPsed?
[8] Query for measurement
status
:CALCulate:DATA:EDIagram:STATus?
