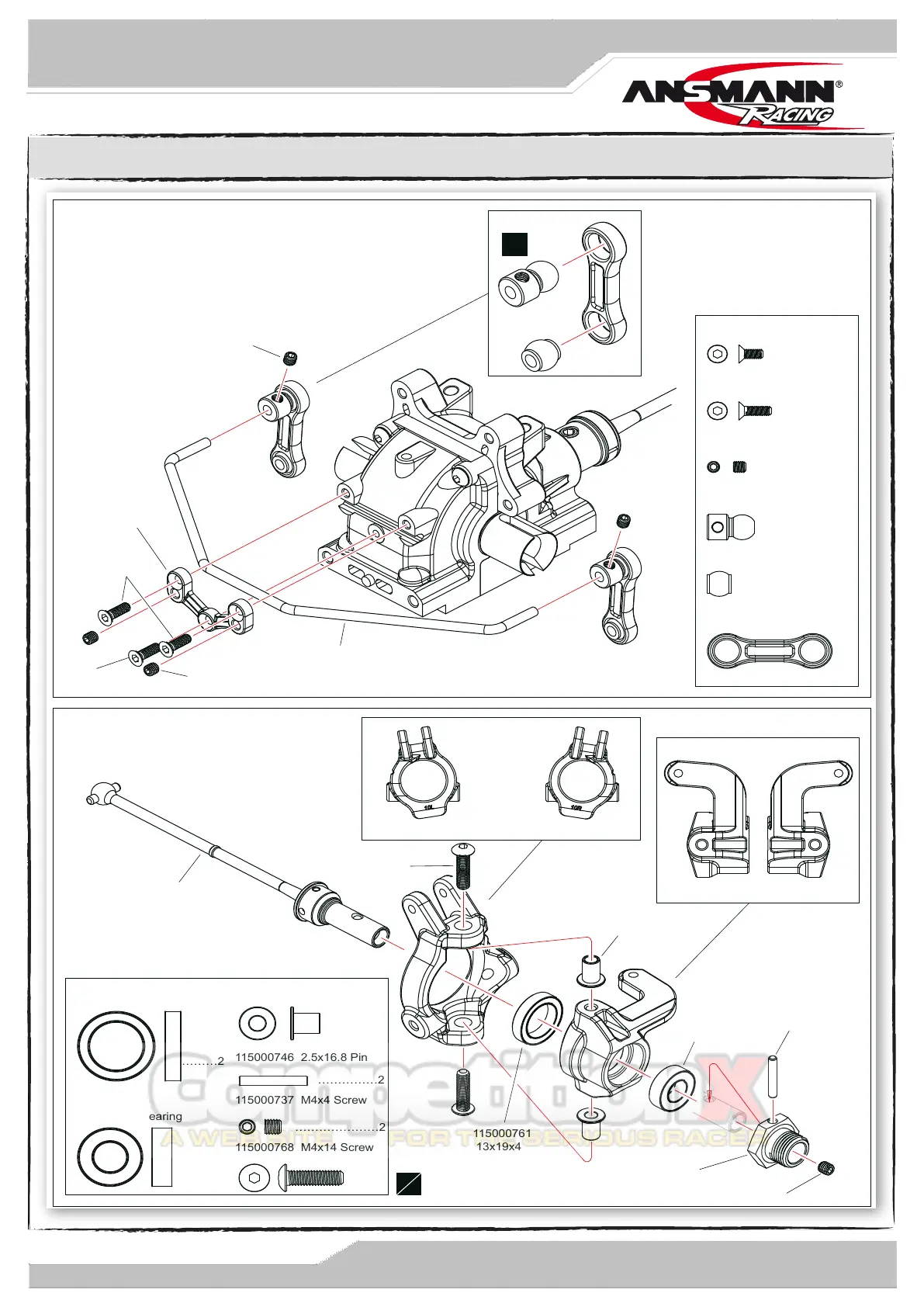

Vorderradnabe / Front Hub Carrie / Carrie moyeu avant
x2
………………1
115000769 M2.5x6 Screw
………………2
115000769 M2.5x8 Screw
……………………4
115000701 / 115000706
M3x3 Screw
L
R
……4
115000768 M4x14 Screw
115000760
8x16x5 Ball Bearing
115000761
13x19x4 Ball Bearing
………2
………2
115000703
Front Hub Carrier Bushing
………4
115000706 6.8 Ball stud
…………………2
115000706 6.8 Ball stud
………………………2
…………………2
115000737 M4x4 Screw
……………2
115000746 2.5x16.8 Pin
115000706
M3x3
115000706 6.8 Ball End
115000706
………………2
115000701
M3x3
115000769
M2.5x6
115000769
M2.5x8
115000701
115000745
115000704
Steering Block-Left
Steering Block-Right
115000768
M4x14
115000703
Front Hub Carriers 10 Degree-Left
Front Hub Carriers 10 Degree-Right
115000737
115000737
M4x4
115000746
2.5x16.8
115000746
115000703
115000761
13x19x4
115000760
8x16x5
