- 9 -

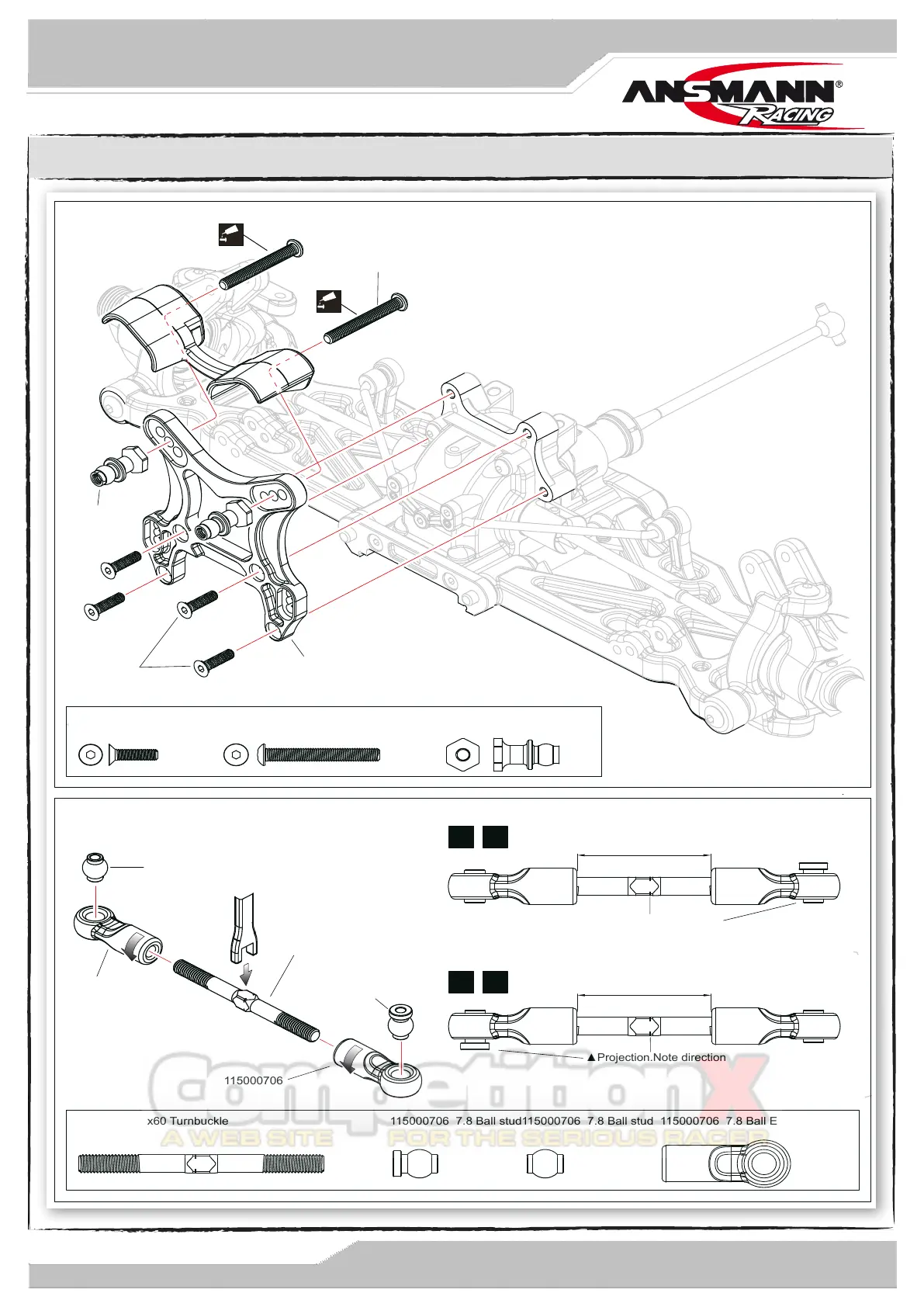

Dämpferbrücke vorne / Front Shock Tower / tour de choc fronta

115000769 M3x12 Screw

………4

115000768 M3.5x28 Screw

………2 ………2

115000722 Shock cap ball

115000741 5x60 Turnbuckle

1:1 x1

115000706 7.8 Ball stud

………2 ……………2 ……………2

115000706 7.8 Ball stud

115000730

115000722

115000769

M3x12

115000768

M3.5x28

Approx.30 mm

▲Projection.Note direction

Approx.30 mm

▲Projection.Note direction

115000706 7.8 Ball End-Front Upper

…………4

Front Upper-Left

Front Upper-Right

Screw

Cement

Screw

Cement

115000741

115000706

5mm
