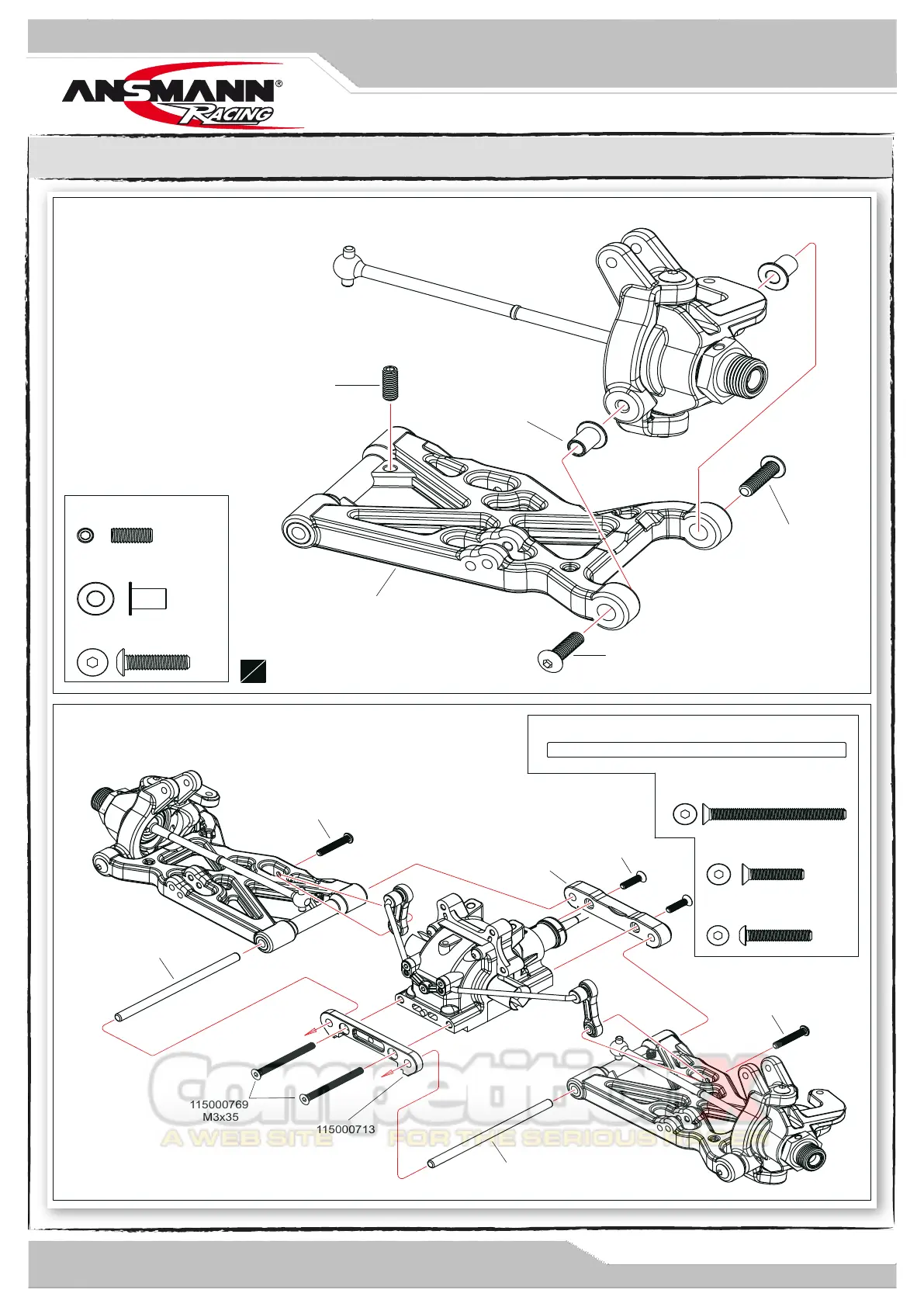

Vorderradaufhängung / Front Suspension / suspension avant
……4
115000768 M4x16 Screw
115000707 King Pin Bushing
………4
115000770 M4x10 Screw
……………2
L
R
115000768 M3x16 Screw
……2
115000743 4x73 Arm Pin
……2
115000769 M3x35 Screw
…………2
115000769 M3x12 Screw
………2
115000768
M4x16
115000768
M4x16
115000770 M4x10
115000707
115000707
115000713
115000713
115000743
4x73
115000743
4x73
115000769
M3x35
115000769
M3x12
115000768
M3x16
115000768
M3x16
