9
2. QUICK
ST
ART
continued …
2.2.5
A

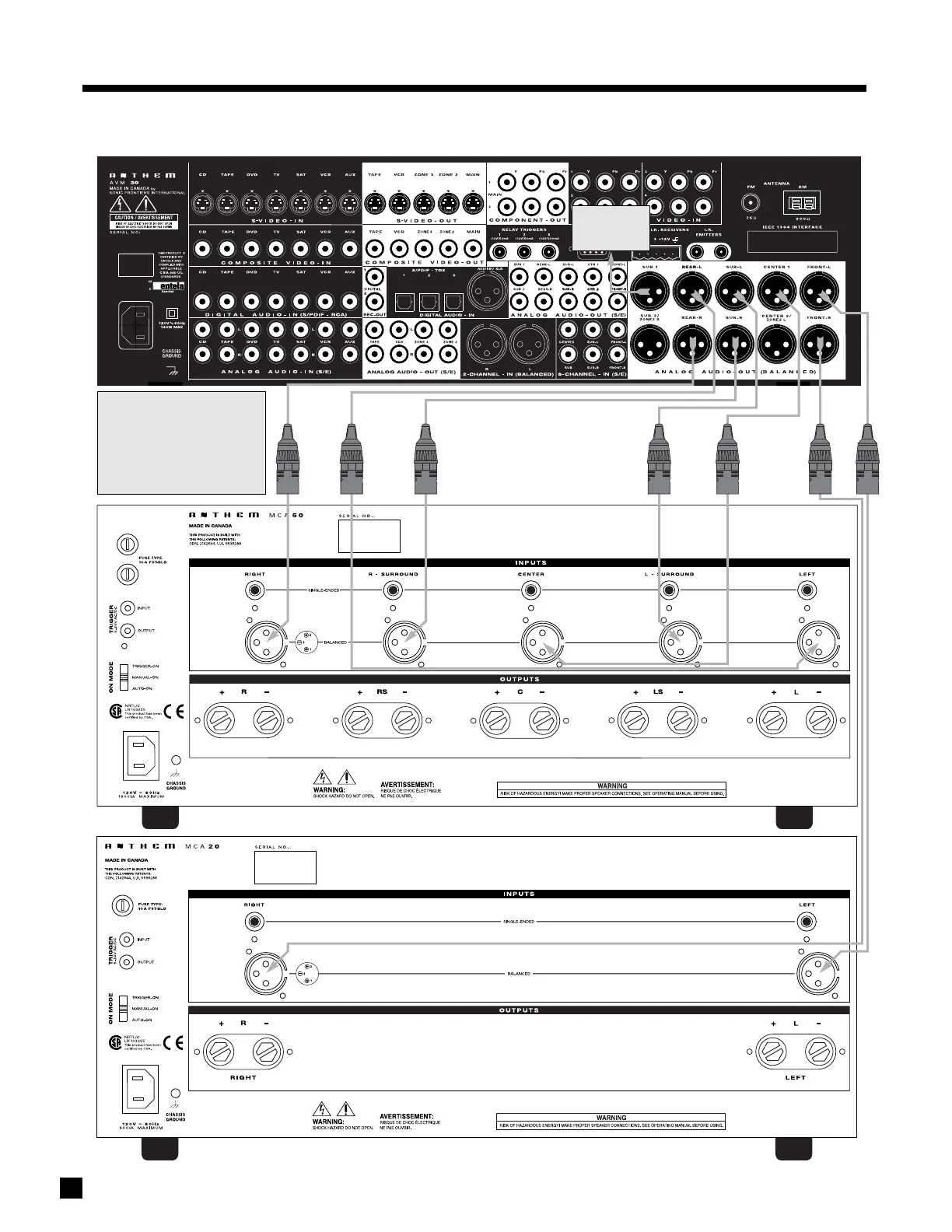

VM 30 to Amplifiers and Powered Subwoofer (XLR)
T
rigger Setup Suggestion:
If it is not necessary to have both
amplifiers turned on when stereo
sources are playing, set triggers
to turn on only the 2-channel
amplifier when a stereo source is
selected (see section 7.4.9).
To
powered
subwoofer
15
17
