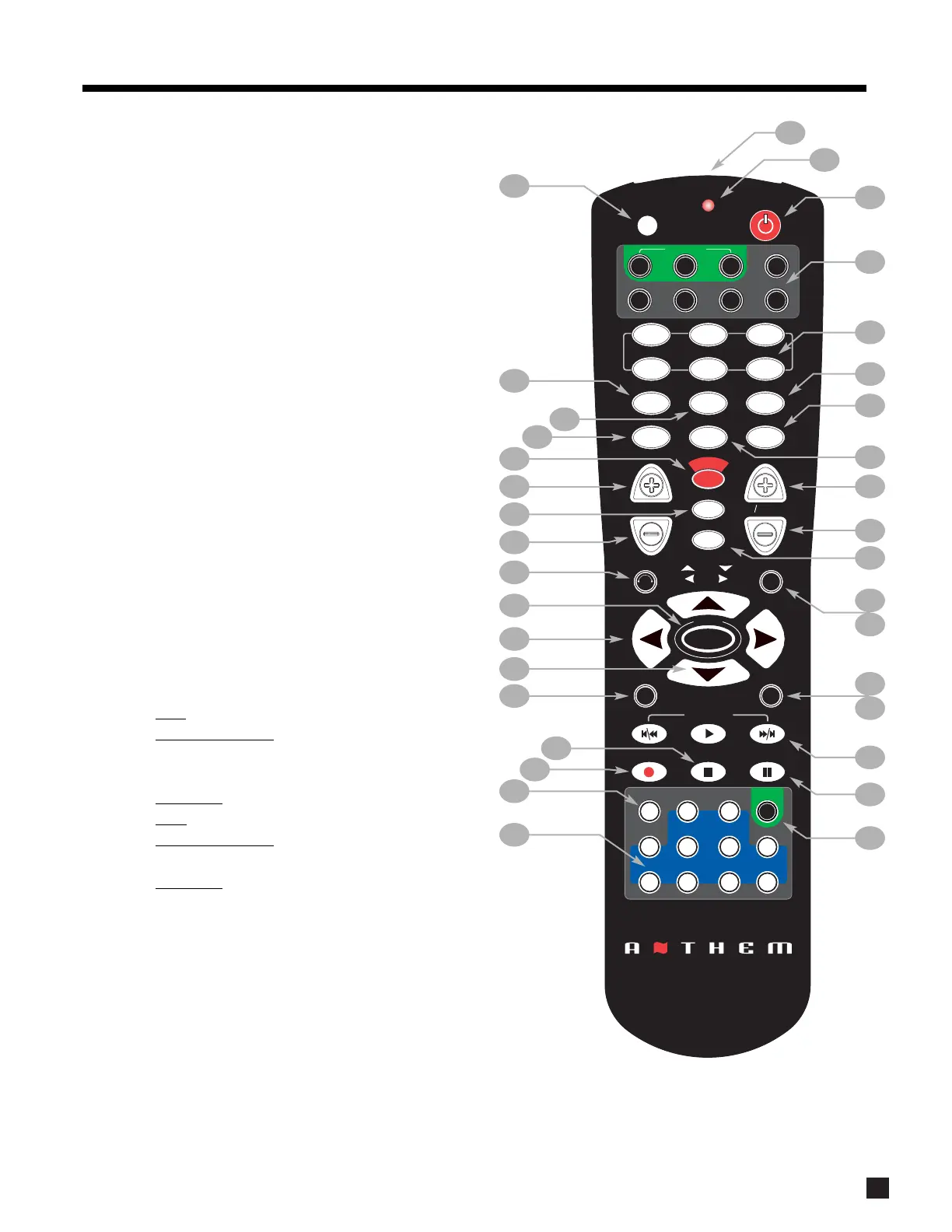

3.4 REMOTE CONTROL LAYOUT
1 IR Transmitter (front face)
2 –Transmission Indicator LED (red)
3 Power ON when in MAIN, ZONE2, or ZONE3 personality
Power ON/OFF for other components (see #4)
Note: This does not turn the AVM 30 off (see #31)
4 Path / Component ‘Personality’ selection
5 –FM • AM Preset selection (6)
6 Selects Tone Bypass
7 Mode setting
8 Dynamics setting
9 –FM • AM Preset Station Up
10 –FM AM Preset Station Down
11 THX Options settings
12 Center Channel setting for Level / Bass / Treble
13 Back (for Setup)
14 Subwoofer / LFE Level settings
15 Setup (Press & Hold for 3 seconds)
16 Source Seek
17 Balance setting
18 RECORD Path selection (Must be in MAIN – see #4)
19 Source selection (10 inputs)
20 Copy MAIN when ZONE2, ZONE3, or RECORD is selected
21 Bass setting
22 –Treble setting
23 Surrounds / Rears setting for Level / Bass / Treble /
Balance
24 –• Tune for FM AM
• Setting Adjustment
for Mode; DD Dynamics; THX
Options; Surround Mode Level / Bass / Treble; Path
Bass / Treble; Timers; Display Brightness
• Navigation
for Setup
25 –• Seek for FM AM
• Setting Adjustment
for Surround Mode Balance;
Path Balance
• Navigation for Setup (North / South / East / West)
26 Status / FM AM Direct Entry / Setup selection
27 –Fronts / Headphones setting for Level / Bass / Treble / Balance
28 –Volume Down
29 Sleep Timer selection / Timers setting
30 –Volume Up
31 Power OFF when in MAIN, ZONE2, or ZONE3 personality
32 Mute
33 –Front Panel LED / Display Brightness setting / Lip-Sync Delay
34 On-Screen Display
35 Learn (for customization of remote)
See section 6 for complete information on operation of the Remote Control.
