12
3.2 FRONT PANEL DISPLAY

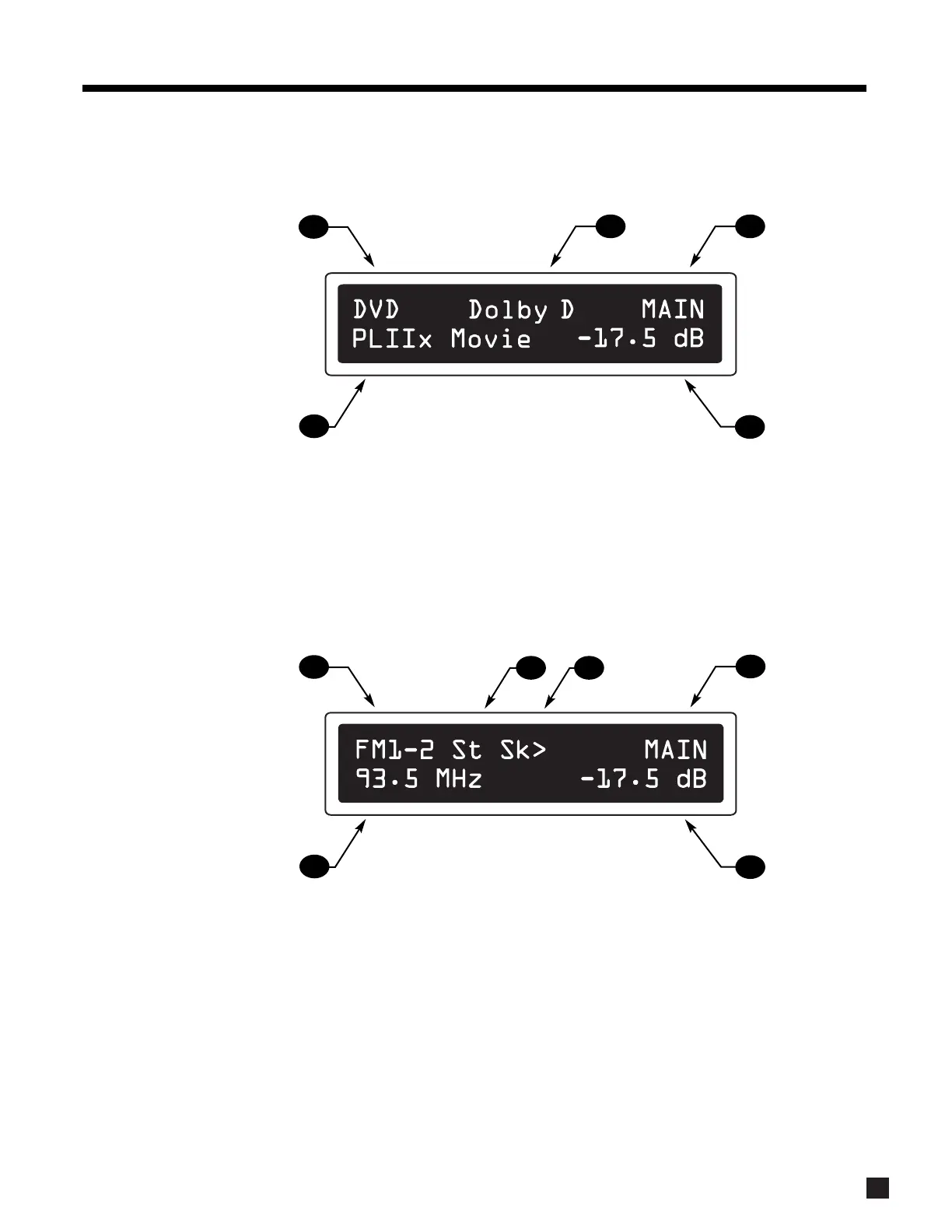

MAIN Display Example:
1 – Source selection (see section 5.4).
2 – Audio Input Format (see section 7.4.5) or Sleep Indicator if engaged (see section 6.5).
3 – Path that the information on the display refers to (see section 5.2).
4 –Volume setting. When MAIN, ZONE2, or ZONE3 are muted, “Muted” flashes instead of the current
volume setting (see section 5.5).
5 – Surround Mode (if the Source is FM • AM, then the tuned station appears).
FM • AM Display Example:
1 – Source+Band. The tuner has three FM bands (FM1, FM2, and FM3) and one AM band. The number
after the selected band is the preset station (see section 5.4.2).
2 – FM mode. Displays “St” when in stereo, “HB” when Hi-Blend is selected, or “Mn” when in mono or
mono is selected (see section 5.4.2).
3 – Seek when tuning FM • AM stations (see section 5.4.2).
4 – Path (see section 5.2).
5 –Volume setting. When MAIN, ZONE2, or ZONE3 are muted, “Muted” flashes instead of the current
volume setting (see section 5.5).
6 – Currently tuned FM • AM frequency to the nearest 0.1 MHz for FM and to nearest 10 kHz for AM
(see section 5.4.2).
If changes take place simultaneously in different Paths, the hierarchy of the display info is:
1) Volume changes, 2) Front Panel activity, 3) MAIN, 4) ZONE2, 5) ZONE3, 6) RECORD, 7) HEADPHONE.
3. PANELS / DISPLAY/ REMOTE LAYOUT continued …
5
4
32
1
6
5
4
1
32
