1.6 BACK PANEL
Analog RCA stereo inputs (MDX-16 has eight, MDX-8 has
four)
Optical digital audio inputs (MDX-16 has two, MDX-8 has
one)
Coaxial digital audio inputs (MDX-16 only)
Optical digital audio output (MDX-16 only)
Zone 6 and 7 analog outputs (MDX-16 only)
Ethernet connection for ARC (Anthem Room Correction),
software installation, and control
RS-232 (serial) connection for legacy control
On mode switch (trigger / auto / external command)
DHCP reset / factory reset
Master power switch
Fuse
Serial number label
Micro USB type B for ARC via PC or Mac (if LAN is not avail-
able)
Power cord inlet (IEC C18 type)
Rear ID (identify) light
5–24V DC/AC 3.5 mm trigger input/loop
MAC address label
Chassis ground terminal
Subwoofer outputs (MDX-16 has eight, MDX-8 has four)
Euroblock speaker terminals
For more information, please refer to section 3 (Connections
and Back Panel Controls).

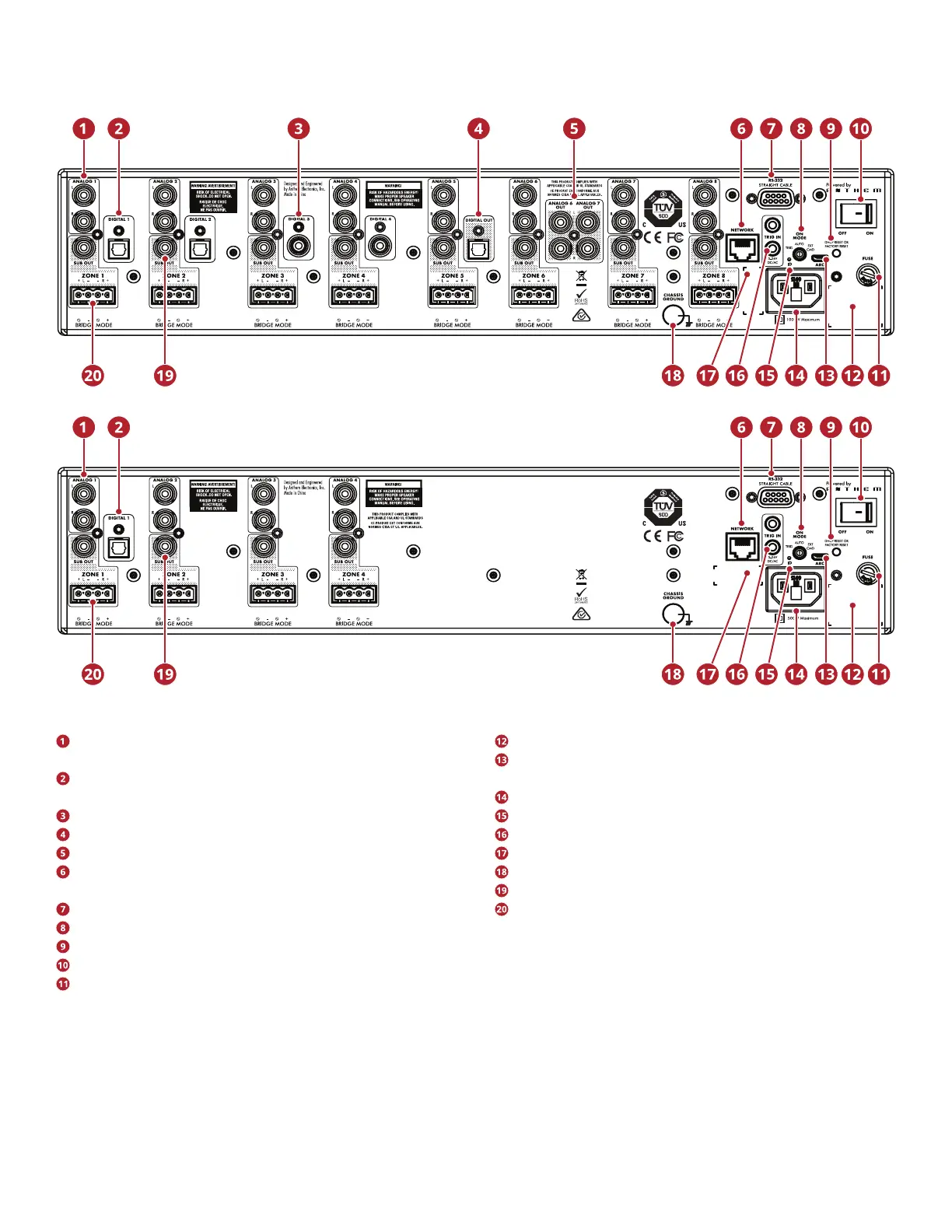

MDX-16 Back Panel
MDX-8 Back Panel
