A3 PLUS - A5 - A6 PLUS - L6
SURGICAL SINGLE CART

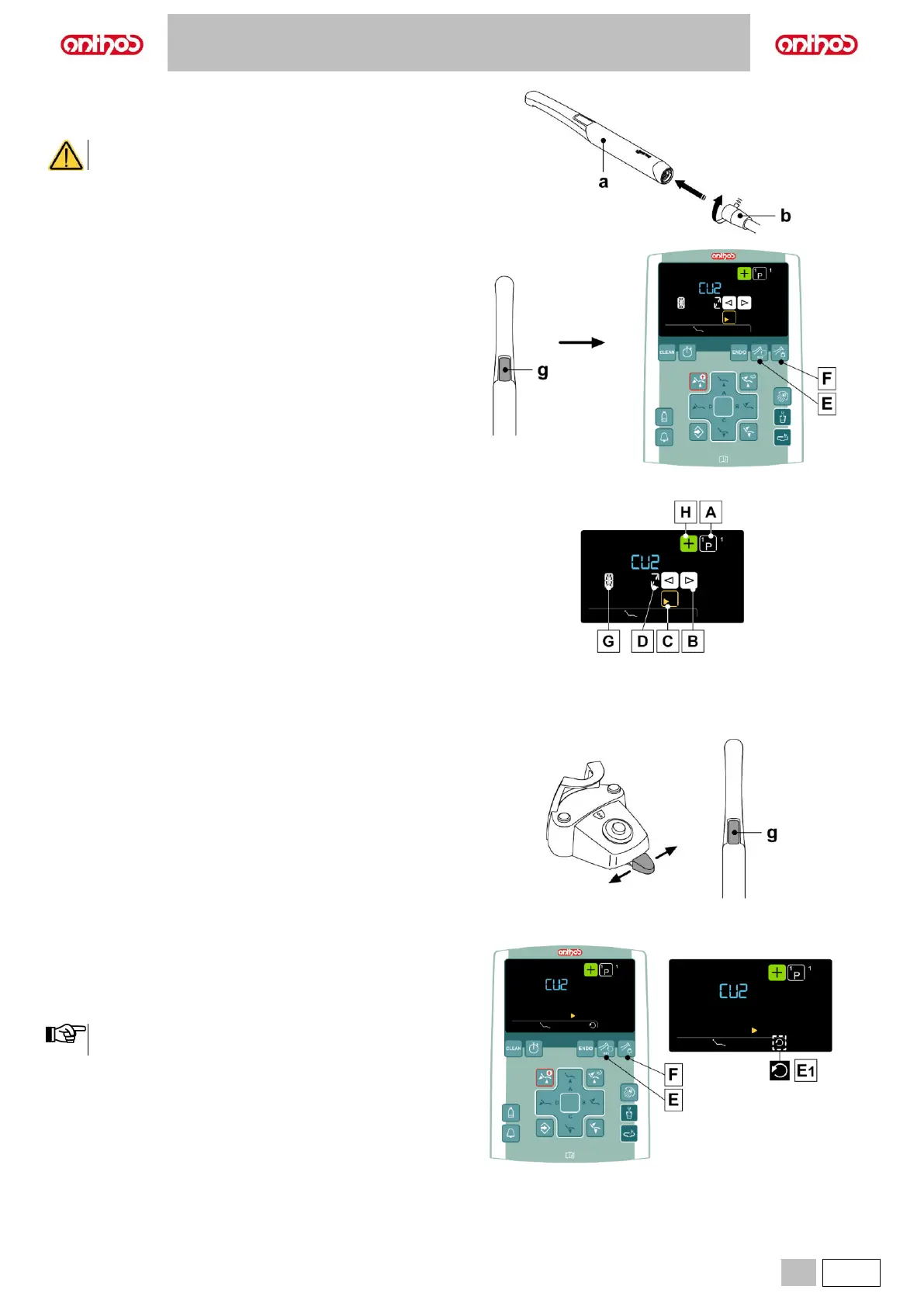

Connecting the handpiece.
• Attach the handpiece of camera C-U2 (a) to the end of the hose and
tighten the ring nut (b).
Make sure the hose is firmly screwed onto the handpiece.
Using the camera (LCD TOUCH console).
• Place the instrument in its work position.
Now camera is activated and is in LIVE mode (monitor shows "moving"
images) or FREEZE mode (monitor shows a snapshot).
Buttons on the camera
g Image acquisition.
Console buttons:
E Enables/disables MIRROR function
(only with camera extracted and set to LIVE).
F Turns camera LEDs on/off
(only with camera extracted).
LCD Touch DISPLAY icon buttons:
A In LIVE mode: allows switching from single to multiple image mode
(and vice versa).
In FREEZE mode: allows scrolling through pages with frozen
images.
B In FREEZE mode: it allows selecting the frozen images.
C Function to EXIT the image management page.
(camera in FREEZE mode).
D Enables/disables zoom.
G Button pressed shortly: deletes selected image.
Button pressed and held: it deletes all images on current page.
H In LIVE mode and in multiple image mode: it allows changing the
storage page
Image acquisition (FREEZE function).
• Shortly press the touch key (g) on camera handpiece or operate the
foot control to capture the image shown on the monitor.
To go back to "live" image, simply touch again the touch key (g) on
camera handpiece or operate the foot control.
• When the camera is set back to LIVE mode, the display shows the
MAIN PAGE; the image management page remains active in FREEZE
mode, press the button (C) to exit it.
Turning on camera lighting system.
• Press the button (F) to turn on/off camera lighting system
MIRROR function.
• With the camera set to LIVE mode, briefly press the button (E) on the
console to change from viewing real images to mirror images.
The activation of mirror image mode is signalled on the display
through icon (E1).
