-3-
-4-
Light shade
Dark shades
Identification of the manufacturer
Optical class
Diffusion of light class
Variation in luminous transmittance class
Angle dependency class
Number of the standard

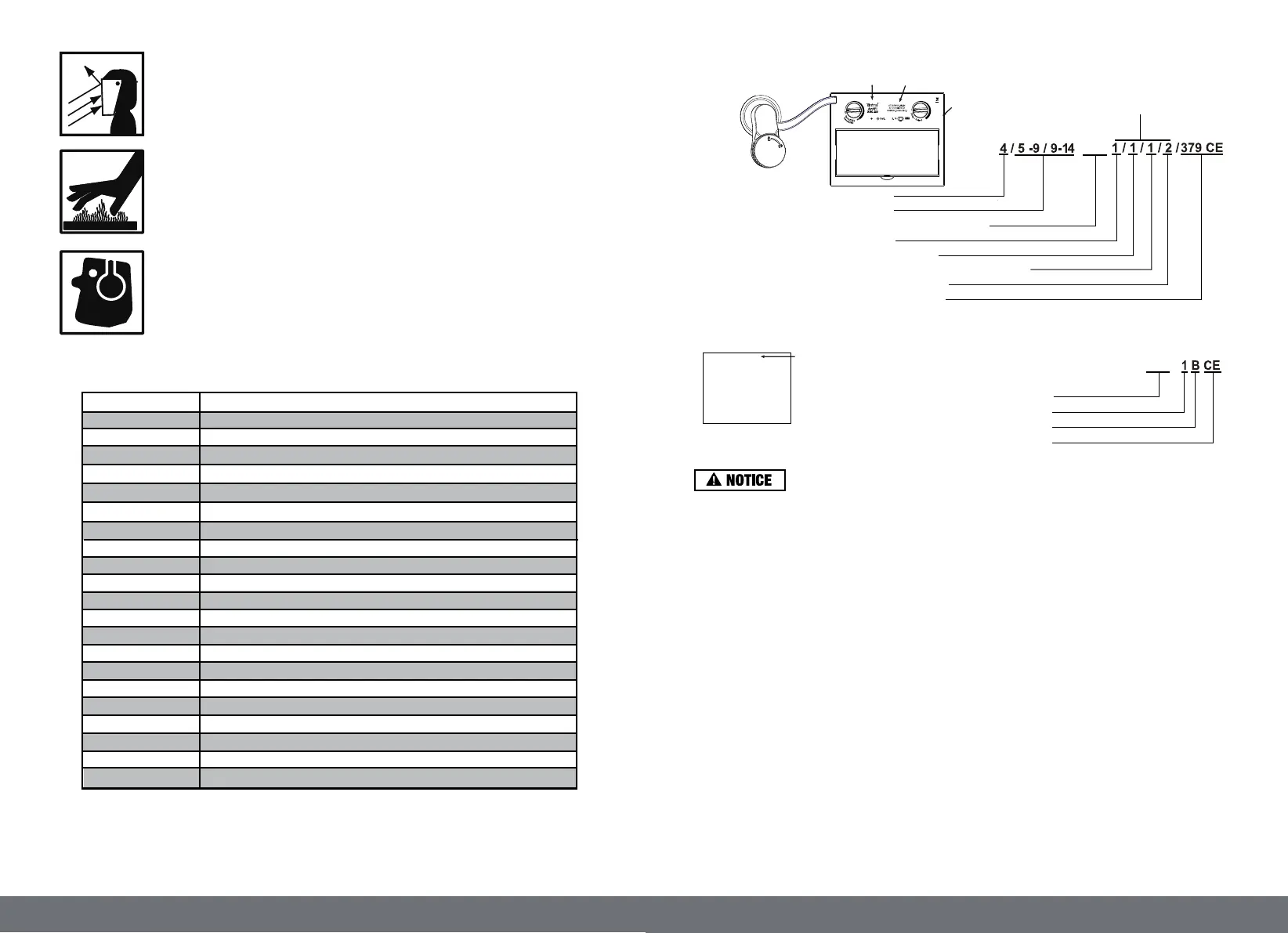

Optical Specifications
ANT
ANT
This is a sample of EN379 marking only. For the product you are using, please
refer to the marking information on the filter.
HOT PARTS can cause severe burns !
• Never touch hot parts bare handed.
• Allow adequate cooling period before touching work piece.
NOISE can damage hearing !
• Noise from some processes or equipment can damage hearing.
• Wear approved ear protection if noise level is high.
GENERAL INFORMATION
Auto-Darkening Welding Helmet does not protect against severe impact hazards, such as fractured
grinding wheels or abrasive discs，explosive devices or corrosive liquids．Machine guards or eye
splash protection must be used when these hazards are present．
The auto-darkening welding filters are designed for Arc welding or cutting applications．The unit
is suitable for all Arc welding processes such as MIG，MAG，TIG，SMAW，Plasma Arc，and
Carbon Arc．
This auto-darkening welding helmet is not recommended for "overhead" welding applications,laser
welding or Iaser cutting applications.
In the event of electronic failure, the welder remains protected against UV and IR radiation
according to shade 14.
The auto-darkening welding filter should always be used with original inner and outer cover lenses.
The manufacturer is not responsible for any failure due to modifications to the welding filter or the
use of the filter from any other manufacturer's helmet.
FLYING METAL can injure eyes !
• Wear ANSI approved safety glasses with side shields under your welding helmet.
• Welding, chipping, wire brushing, and grinding cause sparks and flying metal. As welds
cool, they can throw off slag.
Standards
Front Cover Lens
Model:A1
ANSI Z87+
ANT 1B CE
Identification of the manufacturer
Optical class
high speed impact 120m/s
CE-sign
Meaning of the marking for EN 379:
Meaning of the marking for EN 166:
TECHNICAL SPECIFICATIONS
Model
ADF Model
Viewing Area
Cartridge Size
X60-2D
AH600-265
98 x 44 mm /3.86" x 1.73"
110mm x 90mm x 9mm / 4.33" x 3.54" x 0.35"
Light State
Dark State
UV/IR Protection
Sensors
Grinding
Battery Type
Sensitivity Control
Solar Cell
Delay Control
TIG Rating
Operation Temperature
Storage Temperature
Standards Compliance
Shade DIN 4
Variable Shade 5~9/9~14
Permanent Shade DIN 14
Shade DIN 4
1x CR 2450( Replaceable)
Knob Adjustable
Yes
0.1-1.0 Seconds Continuously Adjustable
-5°C to +55°C (23° F to 131° F)
-20°C to +70°C (-4° F to 158° F)
4
＞2Amp
ANSI Z87.1-2010 & CSA Z94.3-2007 & CE EN379:2009-07
Inside Cover Lens Model
Inside Cover Lens Size
Front Cover Lens Size
114.5X94X1mm/4.51" X3.70" X0.04"
Front Cover Lens Model
A1
B3
99.3X45.4X1mm/3.91"X1.79"X0.04"
Material of Cover Lens Polycarbonate
Standards
Model
S/N:XXXXXXXXXXXXXAXXX
Serial number
