MHPTV TX Quick Start Guide
MHPTV-QSG-DOC-V1.1, 12/05/2018 Page 14 of 37

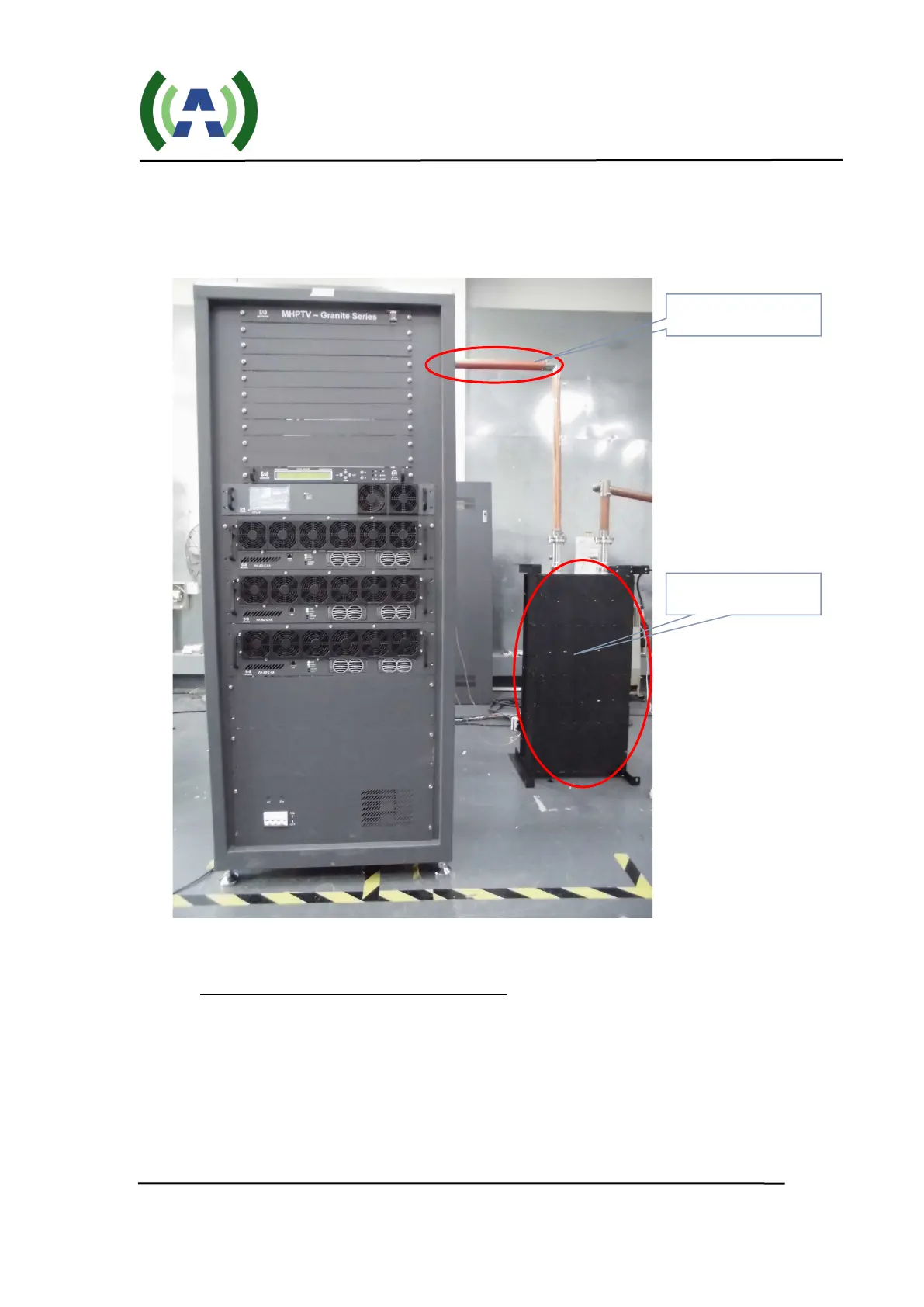

If the BPF is installed on the floor next to the TX cabinet, then put the BPF in
standing position, and connect it with the transmitter with coax. Please note, if the
LPF included in the system is not installed inside the cabinet, then it should be put
between the transmitter and the BPF, as shown below.
2. Connect Elbow and Directional Couplers
With the BPF set on top of the cabinet, connect the 90º Elbow between the TX
output stack and the BPF Input (Before filter) Directional Coupler (if the LPF is
installed in the TX cabinet), or between the TX output stack and the LPF Input (if
the LPF is installed external to the TX cabinet). Be sure that these connections are
made properly and the RF bullets are fully seated inside.
Low Pass Filter
Band Pass Filter
To Next Page
