MHPTV TX Quick Start Guide
MHPTV-QSG-DOC-V1.1, 12/05/2018 Page 29 of 37
9 Initial Turn On
Once the RF connections have been properly made into your antenna feed or
suitable station load, and the Transmitter has been properly wired to the station
electrical panel (as outlined in sections 6 & 8) you are now ready to turn on the system.
Please locate and have handy for reference a copy of your MPTV TX Factory Test
Report as well as this MHPTV TX User Manual and Quick Start Guide, and Exciter
User Manuals.
Please follow the steps outlined below to safely turn on and bring your TX system
up to power.
1. Apply power to the Transmitter by turning ON the AC Main Breaker located in
the lower left front of the TX and ensure that the AC Mains indication is
illuminated. You will hear the PA fans rev up to full speed for a few seconds
and then ramp down.

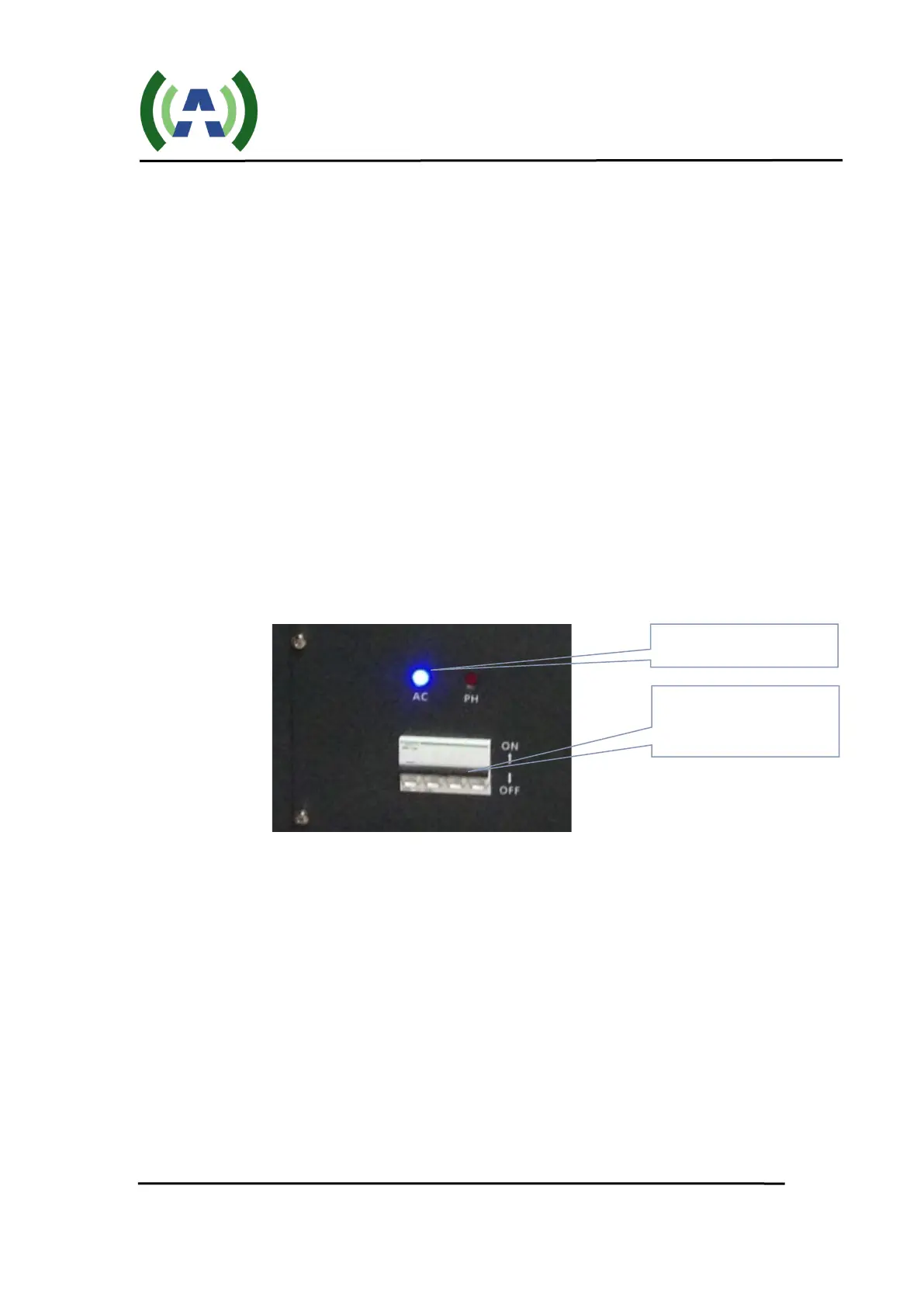

AC Mains LED ON
Turn Main Breaker ON
(Up position)
