Please note: The above instructions apply to the 5X Exciter (which requires an ASI
input signal) and is most likely the Exciter installed in your system. However, if you
ordered the 9X Exciter (that can accept an ASI, SMPTE301M, or TSoIP (optional) TS
input, the rear panel connections on your Exciter will look slightly different. Please
consult your Exciter User Manual for details.

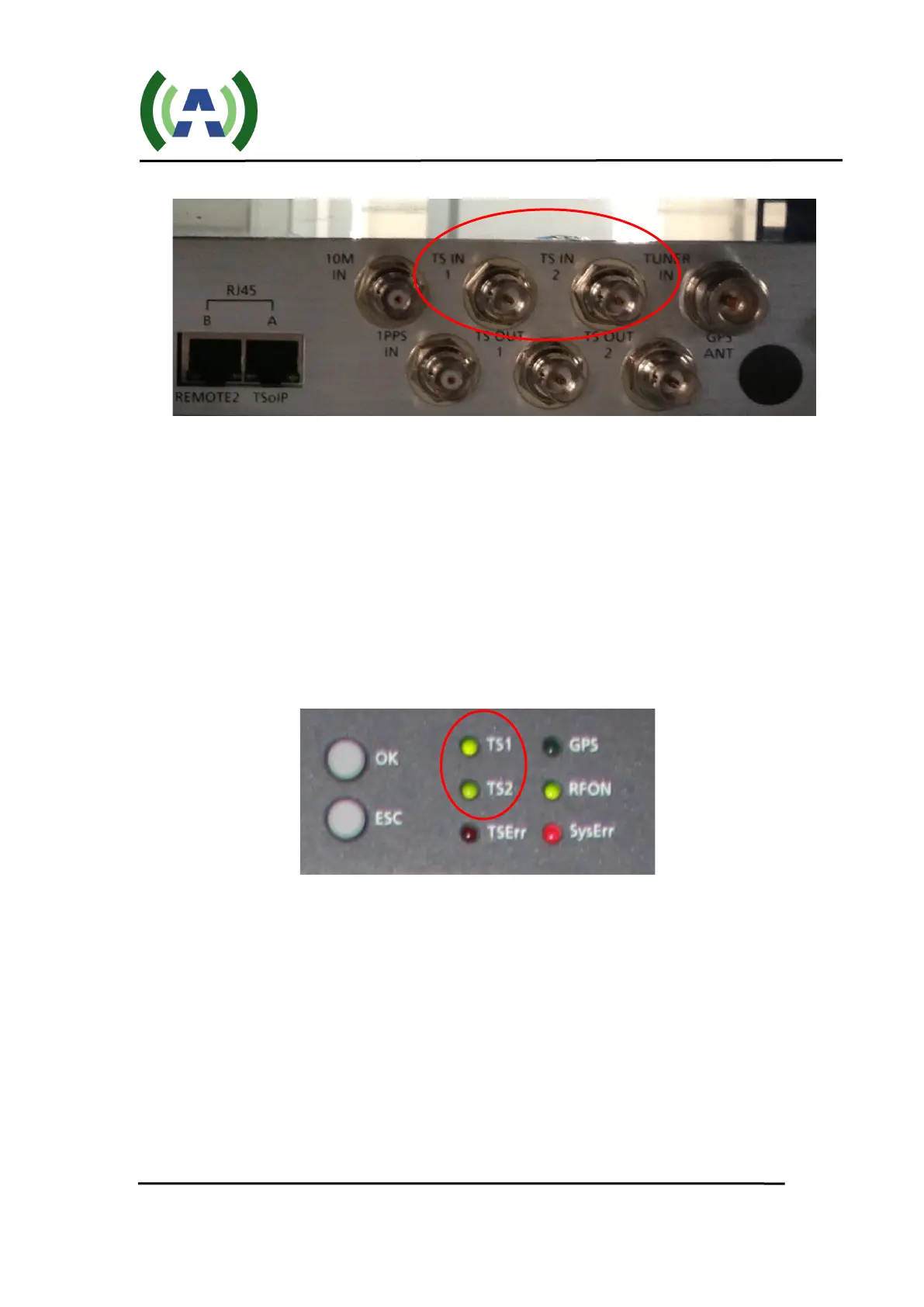

With a valid ASI TS stream connected to the TS IN 1 and/or TS IN 2 on the Exciter,
verify that the corresponding TS1 and/or TS2 Led is illuminated on the front panel of
the Exciter as shown below.
Please note: The Exciter SysErr LED illuminates solid RED when the Exciter is in
Local mode and is OFF when the Exciter is in Remote mode. This LED only indicates
a SysErr when flashing.
