26

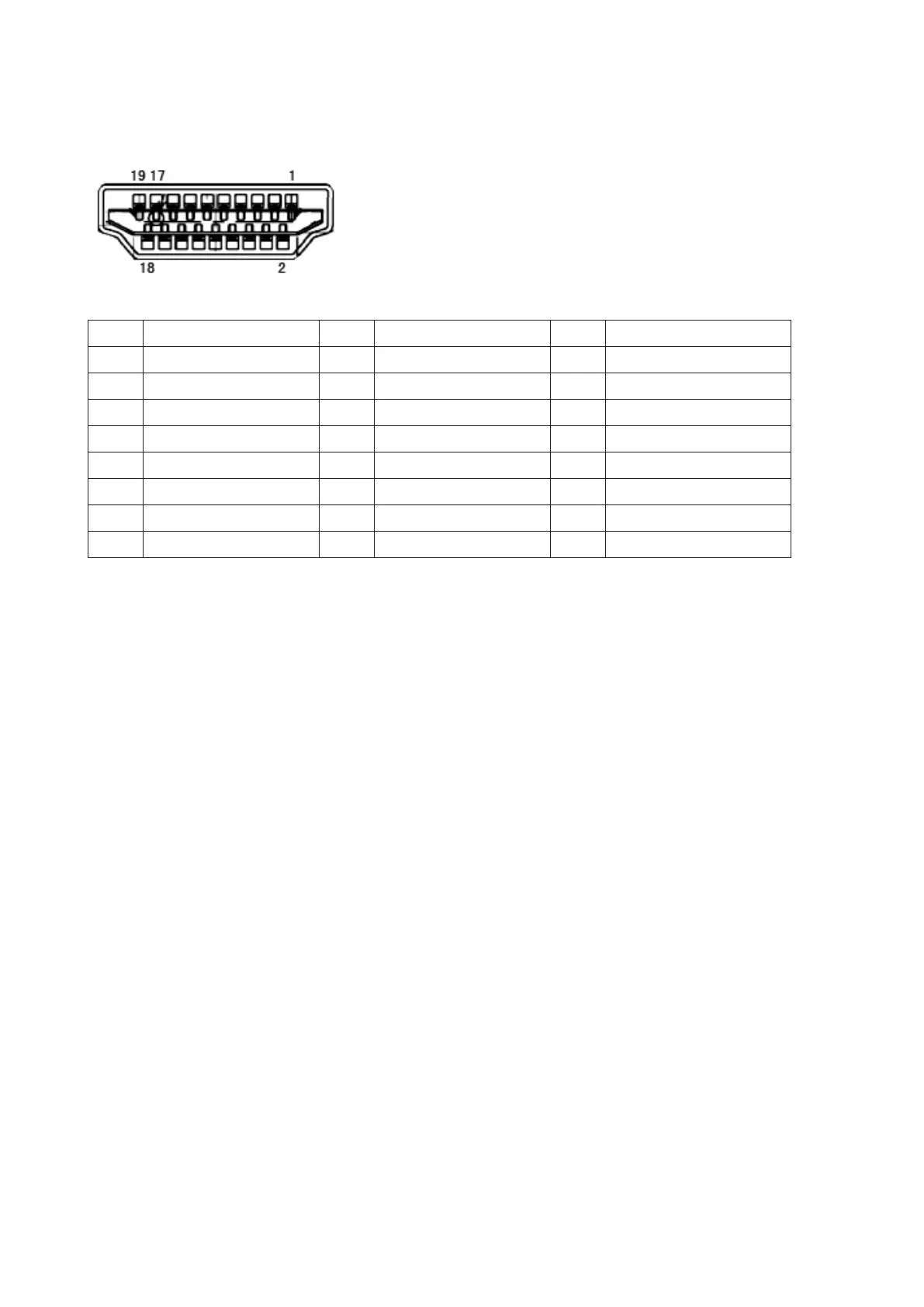

Pin Assignments
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the AOC 24B2H2 and is the answer not in the manual?

AOC 24B2H2 Specifications

General IconGeneral
Panel TypeIPS
Refresh Rate75Hz
Aspect Ratio16:9
Brightness250 cd/m²
Contrast Ratio1000:1
Response Time4 ms (GtG)
Viewing Angles178°(H)/178°(V)
InputsHDMI 1.4, VGA
Color Gamut72% NTSC
VESA Mount100x100mm
Resolution1920 x 1080
Screen Size23.8 inches
