19" LCD Color Monitor AOC 917Vw
11
4.4 Panel Specification
4.4.1 General Features
LTM190M2-L31 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT(Thin Film
Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a back
light unit. The resolution of a 19.0” is 1440 x 900 and this model can display up to 16.7 millions colors.
High contrast ratio, high aperture structure
TN (Twisted Nematic) mode
Wide Viewing Angle
High speed response
WXGA+ (1440 x 900 pixels) resolution
Low power consumption
2 dual CCFTs (Cold Cathode Fluorescent Tube)
DE (Data Enable) only mode
LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
Compact Size Design
RoHS compliance
TCO’03 compliance

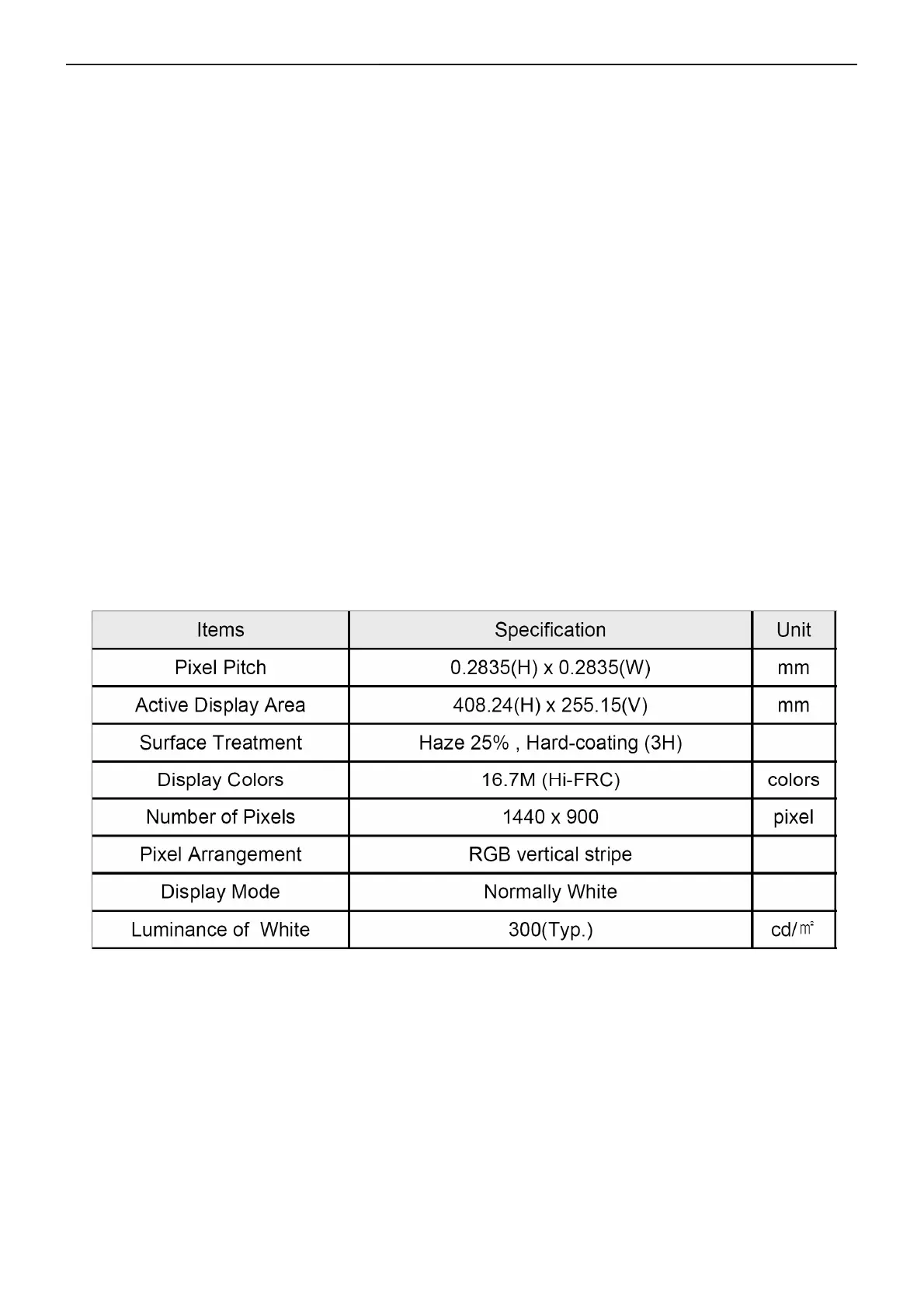

4.4.2 Display Characteristics
