AOC 917vw Service Manual

19" LCD Color Monitor AOC 917Vw
9

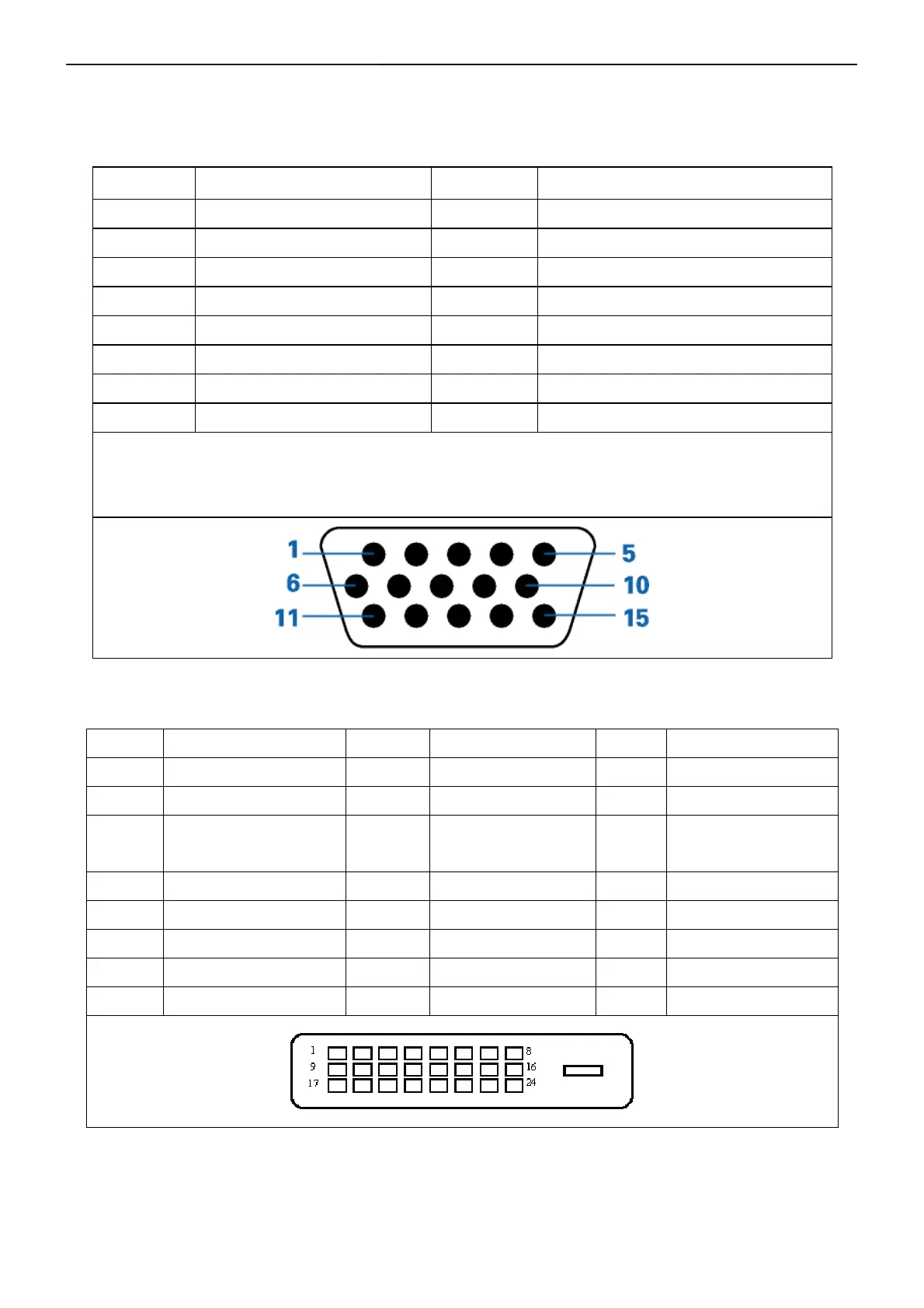

4. Input/Output Specification
4.1 Input Signal Connector
Analog connectors
Pin No. Description Pin No. Description
1. Red Video 9. No Pin
2. Green Video 10. Logic Ground
3. Blue Video 11. Monitor Ground
4. Monitor Ground 12. DDC-Serial Data
5. DDC-Return 13. H-Sync
6. Red Ground 14. V-Sync
7. Green Ground 15. DDC-Serial Clock
8. Blue Ground
VGA connector layout
DVI connectors
Pin No. Description Pin No. Description Pin No. Description
1. TMDS Data2- 9. TMDS Data1- 17. TMDS Data0-
2. TMDS Data2+ 10. TMDS Data1+ 18. TMDS Data0+
3. TMDS Data 2/4 Shield 11.
TMDS Data 1/3
Shield
19. TMDS Data 0/5 Shield
4. TMDS Data4- 12. TMDS Data3- 20. TMDS Data5-
5. TMDS Data4+ 13. TMDS Data3+ 21. TMDS Data5+
6. DDC Clock 14. +5V Power 22. TMDS Clock Shield
7. DDC Data 15. Ground(for+5V) 23. TMDS Clock+
8. N.C. 16. Hot Plug Detect 24. DDC TMDS Clock-
