AOC 917vw Service Manual

19" LCD Color Monitor AOC 917Vw
5
2. LCD Monitor Description
The LCD monitor will contain a main board, a power board and a key board which house the flat panel control logic,
brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips
each voltage.
AC-IN
100V-240V

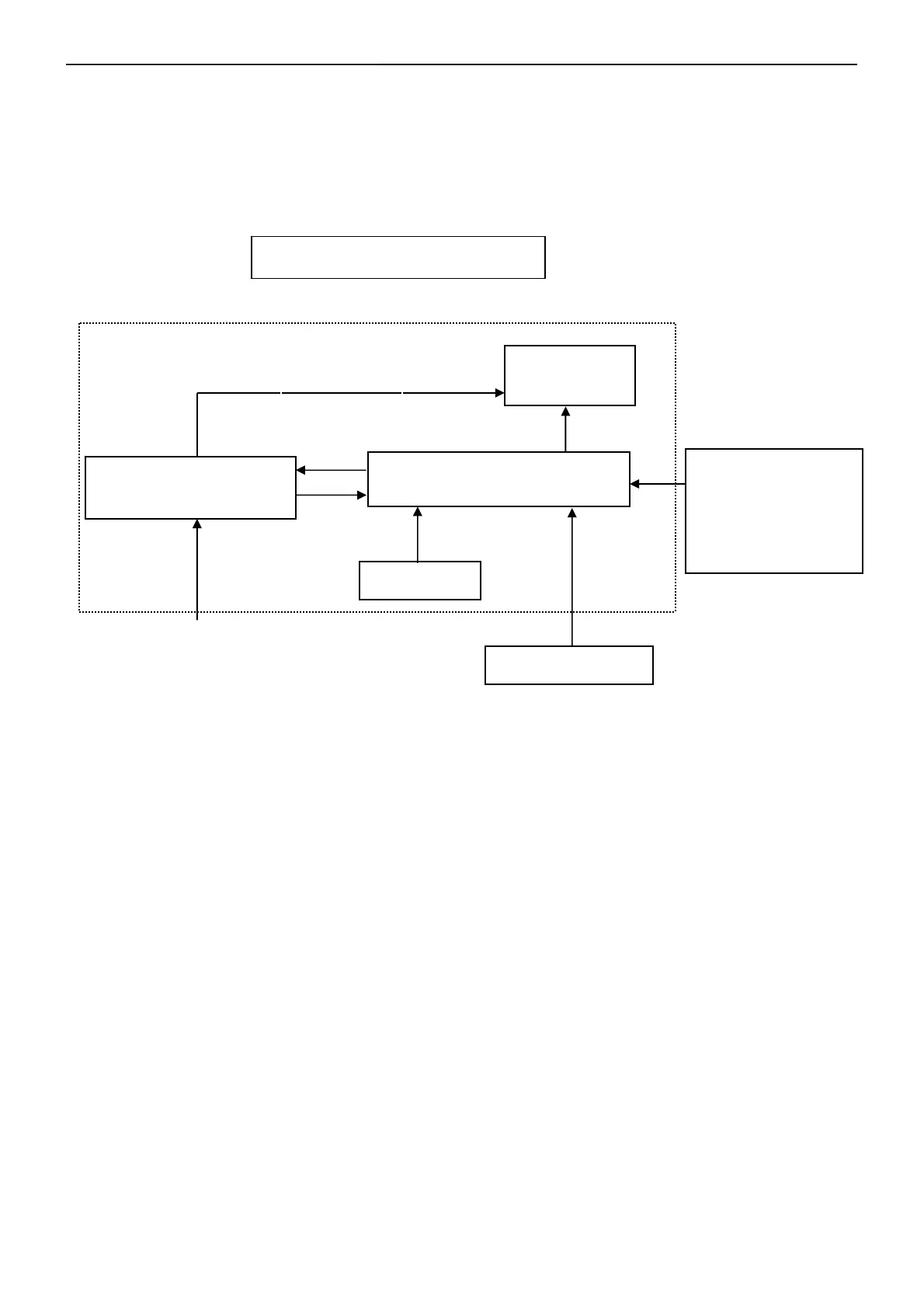

Monitor Block Diagram
Power board
(
Include: ada
p
ter
,
inverter
)
Flat Panel and
CCFL backlight
Main Board
RS232 Connector
For white balance
adjustment in factory
mode
CCFL Drive.
Video signal, DDC
Key Board
HOST Computer
http://www.wjel.net

AOC 917vw Specifications

General

Brand	AOC
Model	917vw
Category	Monitor
Language	English
