Preset Display Modes
STANDARD
RESOLUTION
HORIZONTAL
FREQUENCY(kHz)
VERTICAL
FREQUENCY(Hz)
Source
VGA
640x480 60Hz
31.469
59.94
HDMI/DP
SVGA
800x600 60Hz
37.879
60.317
HDMI/DP
XGA
1024x768 60Hz
48.363
60.004
HDMI/DP
UHD
3440x1440 50Hz
73.681
49.99
HDMI/DP
UHD
3440x1440 60Hz
88.819
59.97
DP
UHD
3440x1440 85Hz
127.361
84.96
DP
UHD
3440x1440 100Hz
151
100
DP

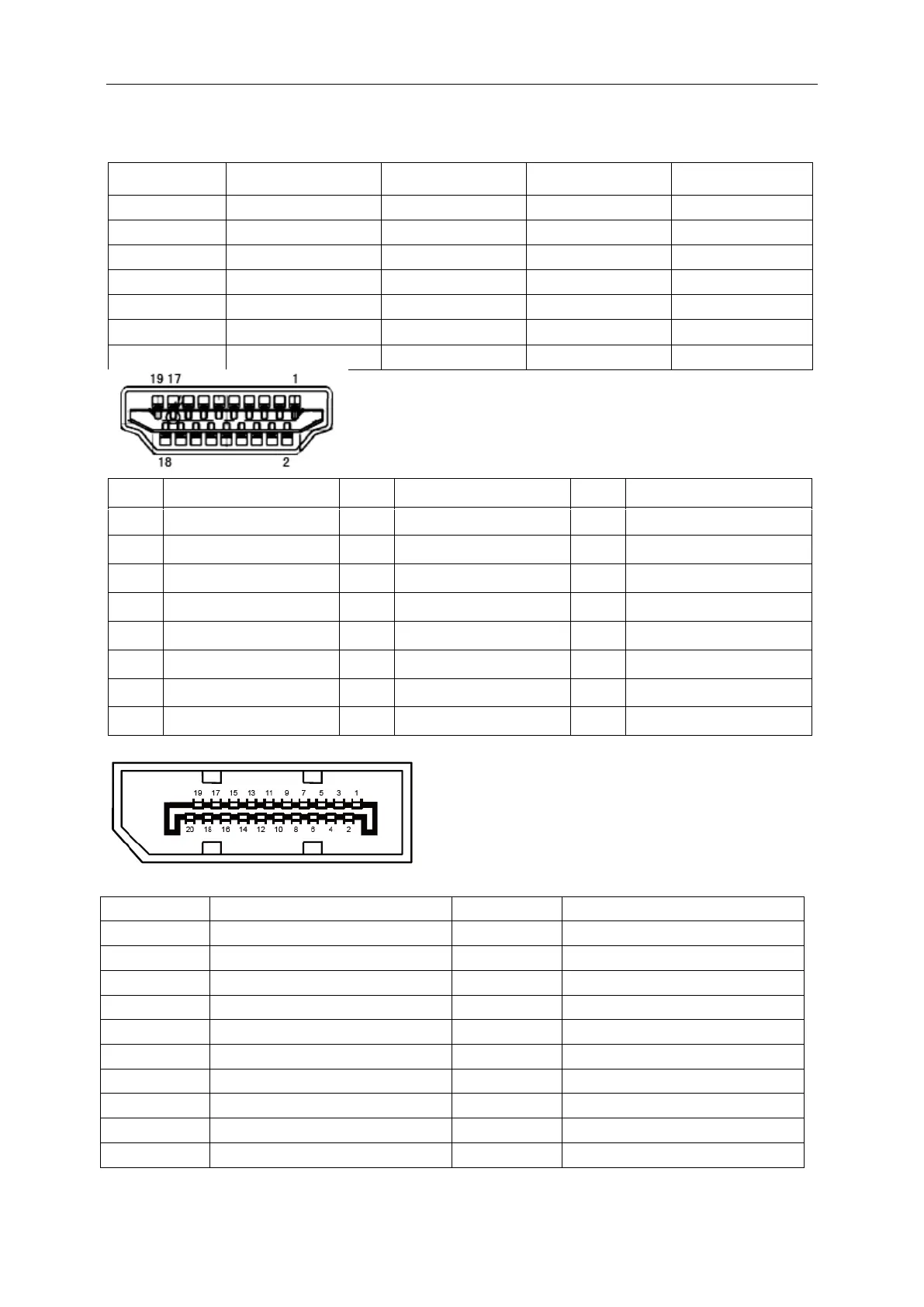

Pin No.
Signal Name
Pin No.
Signal Name
Pin No.
Signal Name
1.
TMDS Data 2+
9.
TMDS Data 0-
17.
DDC/CEC Ground
2.
TMDS Data 2 Shield
10.
TMDS Clock +
18.
+5V Power
3.
TMDS Data 2-
11.
TMDS Clock Shield
19.
Hot Plug Detect
4.
TMDS Data 1+
12.
TMDS Clock-
5.
TMDS Data 1Shield
13.
CEC
6.
TMDS Data 1-
14.
Reserved (N.C. on device)
7.
TMDS Data 0+
15.
SCL
8.
TMDS Data 0 Shield
16.
SDA
20-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
ML_Lane 3 (n)
11
GND
2
GND
12
ML_Lane 0 (p)
3
ML_Lane 3 (p)
13
CONFIG1
4
ML_Lane 2 (n)
14
CONFIG2
5
GND
15
AUX_CH(p)
6
ML_Lane 2 (p)
16
GND
7
ML_Lane 1 (n)
17
AUX_CH(n)
8
GND
18
Hot Plug Detect
9
ML_Lane 1 (p)
19
Return DP_PWR
10
ML_Lane 0 (n)
20
DP_PWR

AOC AG352UCG Specifications

General

Color	black/silver, black
Screen Type	led
Tiltable	yes
Wall Mount	100mm x 100mm
Touch Screen	no
Webcam	no
OS Compatibility	windows
Screen Size	35 inches
Panel Type	not applicable
Aspect Ratio	21:9
Resolution	3440 x 1440
Native Resolution	3440 x 1440
Refresh Rate	100hz
Horizontal Viewing Angle	178 degrees
Vertical Viewing Angle	178 degrees
Response Time	4 milliseconds
Brightness	300 candela per square meter
Contrast Ratio	20, 000, 000:1
Synchronization	g-sync (nvidia adaptive sync)
HDR	no
Built-In Speakers	yes
Interface Connectors	1 x hdmi
HDMI Ports	1
Power Saving Mode	0.5 watts
Power Consumption	70 watts
Depth with Stand	10.49 inches
Width with Stand	33.35 inches
Net Weight without Stand	26 pounds
