Wall Mounting

Preparing to Install An Optional Wall Mounting Arm.

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure.

Follow these steps:

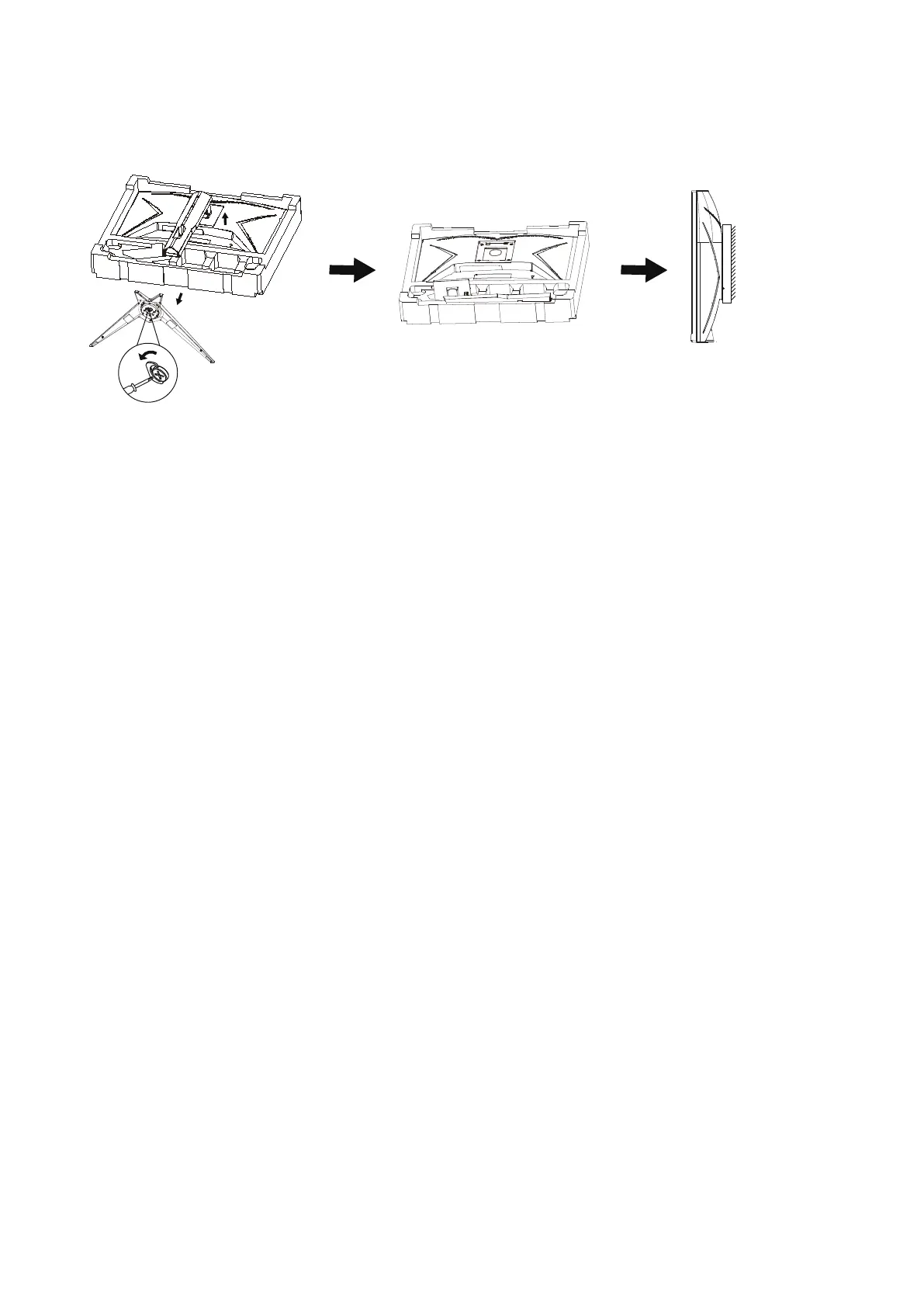

1. Remove the base.

2. Follow the manufacturer’s instructions to assemble the wall mounting arm.

3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of

the monitor.

4. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on

attaching it to the wall.

Noted: VESA mounting screw holes are not available for all models, please check with the dealer or ofcial department of

AOC.

Questions and Answers:

Need help?

Do you have a question about the AOC C24G1A and is the answer not in the manual?

AOC C24G1A Specifications

General

Panel type	VA
Color depth	8 bit
Pixel pitch	0.2715 x 0.2715 mm
Pixel density	9334 ppi
Backlight type	W-LED
Display diagonal	23.6 \
Screen curvature	1500 mm
Surface hardness	3H
Adobe RGB coverage	98 %
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	48 - 146 Hz
Horizontal scan range	30 - 160 kHz
NTSC coverage (typical)	99 %
Screen curvature rating	1500R
Viewable size, vertical	293.28 mm
sRGB coverage (typical)	114 %
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	521.39 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Certification	ISO
Product color	Black, Red
Detachable stand	Yes
Market positioning	Gaming
VESA mounting	-
Tilt angle range	-4 - 21.5 °
Height adjustment	130 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, ENG, ESP, FIN, FRE, ITA, JPN, POL, POR, RUS, SWE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A+++ to D
Power consumption (standby)	0.5 W
Power consumption (typical)	31 W
DisplayPort version	1.2
Headphone connectivity	3.5 mm
Number of upstream ports	4
Compatibility	TUV, CE, EAC, ISO 9241-307 class I
AMD FreeSync type	FreeSync Premium
AMD FreeSync refresh rate range	48 - 144 Hz
Mean time between failures (MTBF)	50000 h
Cables included	AC, DisplayPort, HDMI
DisplayPort cable length	1.8 m
Package depth	180 mm
Package width	741 mm
Package height	408 mm
Package weight	9940 g
