AOC C24G2 User Manual

10
Wall Mounting
Preparing to Install An Optional Wall Mounting Arm.
This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure.
Follow these steps:

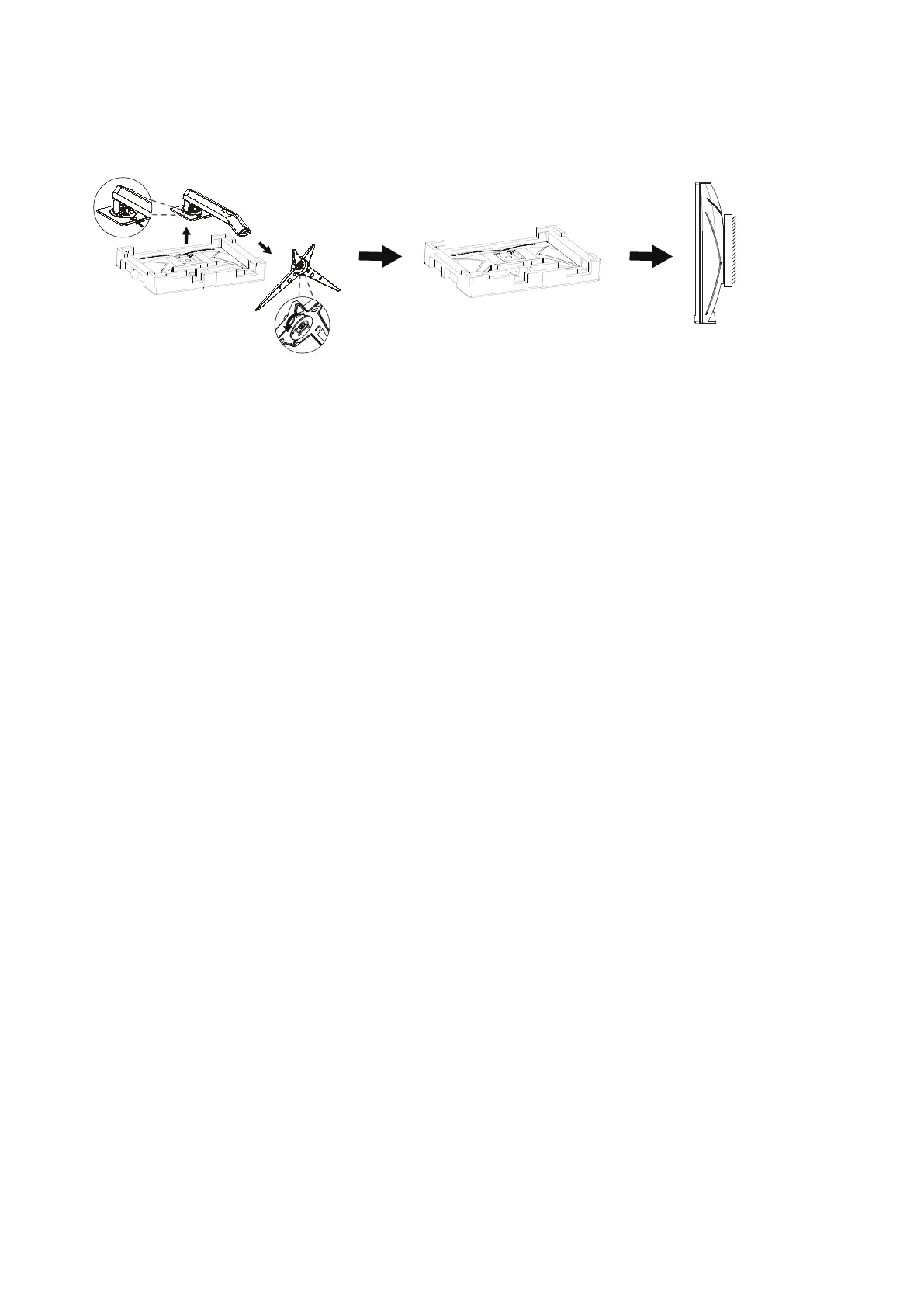

1. Remove the base.
2. Follow the manufacturer’s instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of
the monitor.
4. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on
attaching it to the wall.
Noted: VESA mounting screw holes are not available for all models, please check with the dealer or ofcial department of
AOC.

AOC C24G2 Specifications

General

Panel type	VA
Pixel pitch	0.2715 x 0.2715 mm
Display diagonal	23.6 \
Display technology	-
Native aspect ratio	16:9
NTSC coverage (typical)	99 %
Screen curvature rating	1500R
Viewable size, vertical	293.28 mm
sRGB coverage (typical)	120 %
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	521.39 mm
Display brightness (typical)	250 cd/m²
Product color	Black
Market positioning	Home
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
Tilt angle range	-5 - 23 °
Panel mounting interface	100 x 100 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (standby)	- W
Power consumption (typical)	21 W

Weight and Dimensions

Depth (with stand)	227.4 mm
Height (with stand)	505.3 mm
Weight (with stand)	4350 g
Depth (without stand)	68.5 mm
Width (without stand)	536.1 mm
Height (without stand)	321 mm
Weight (without stand)	2990 g
