AOC C24G2 User Manual

25

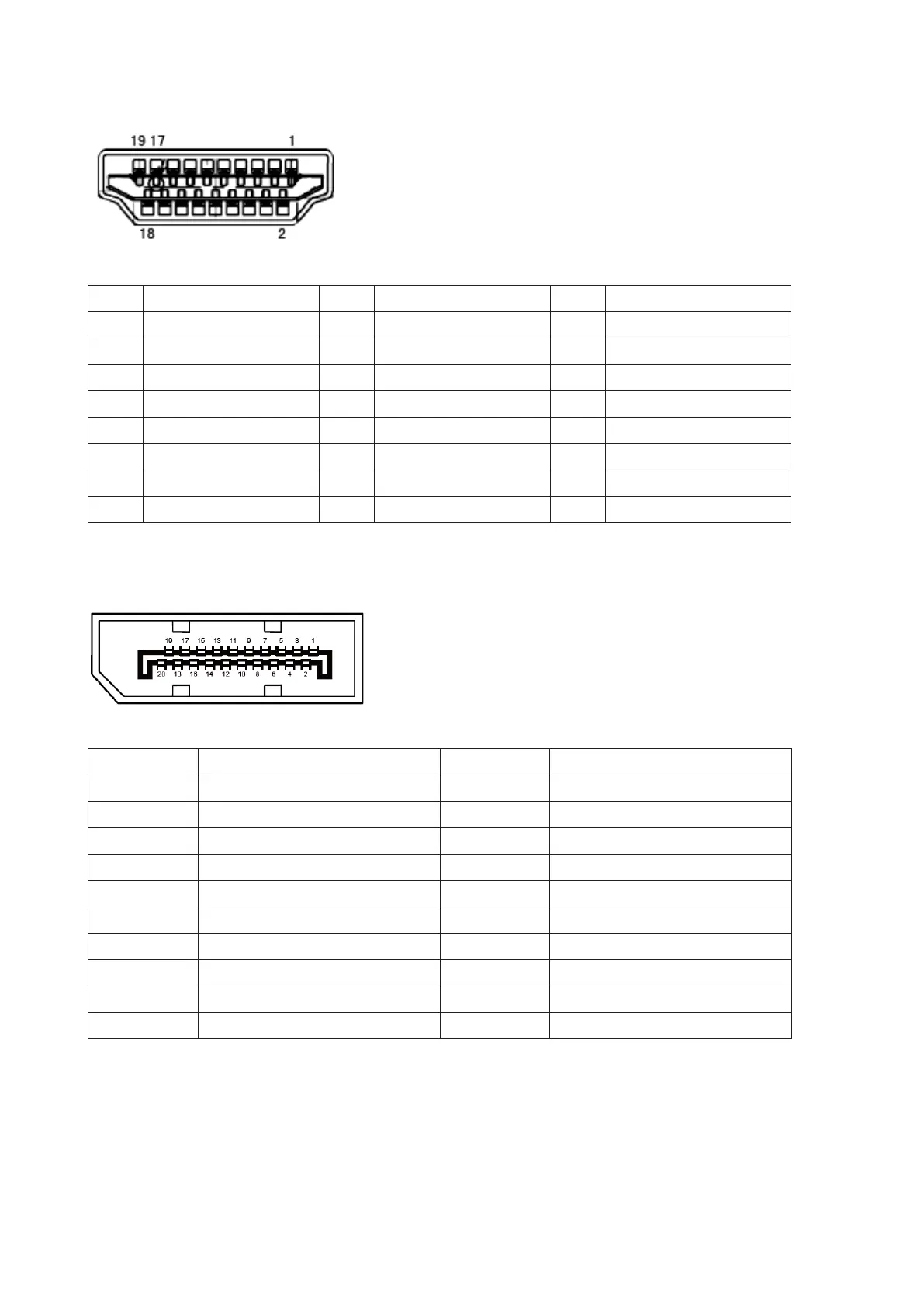

Pin Assignments
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR

AOC C24G2 Specifications

General

Panel type	VA
Pixel pitch	0.2715 x 0.2715 mm
Display diagonal	23.6 \
Display technology	-
Native aspect ratio	16:9
NTSC coverage (typical)	99 %
Screen curvature rating	1500R
Viewable size, vertical	293.28 mm
sRGB coverage (typical)	120 %
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	521.39 mm
Display brightness (typical)	250 cd/m²
Product color	Black
Market positioning	Home
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
Tilt angle range	-5 - 23 °
Panel mounting interface	100 x 100 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (standby)	- W
Power consumption (typical)	21 W

Weight and Dimensions

Depth (with stand)	227.4 mm
Height (with stand)	505.3 mm
Weight (with stand)	4350 g
Depth (without stand)	68.5 mm
Width (without stand)	536.1 mm
Height (without stand)	321 mm
Weight (without stand)	2990 g
